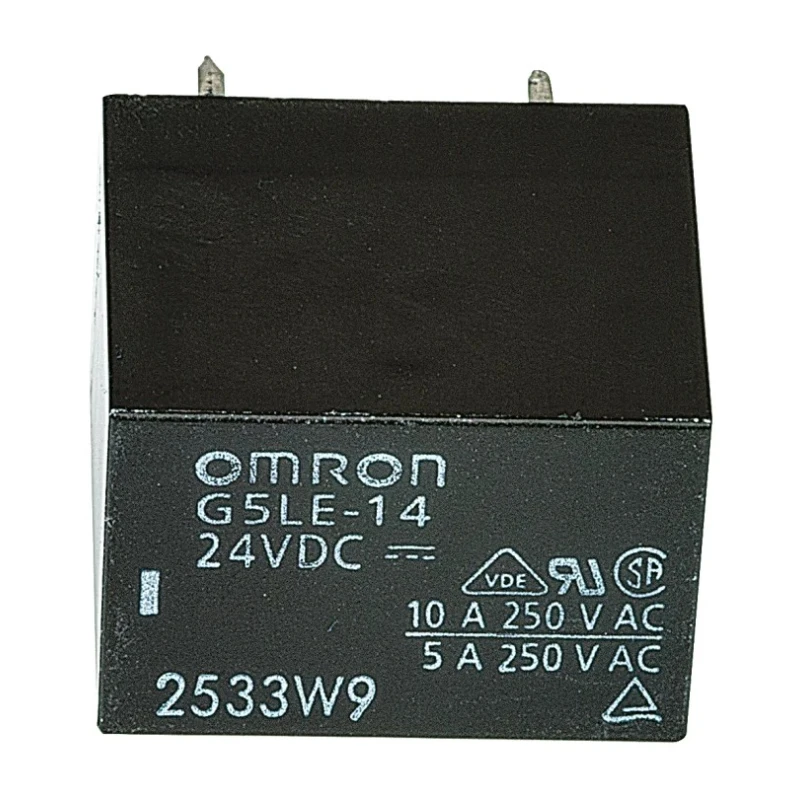

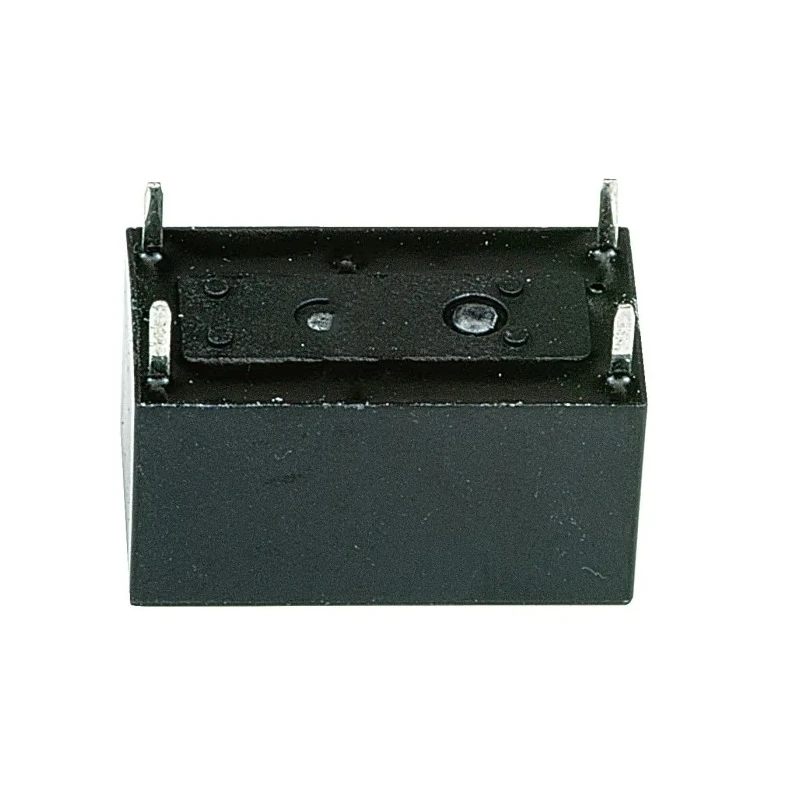

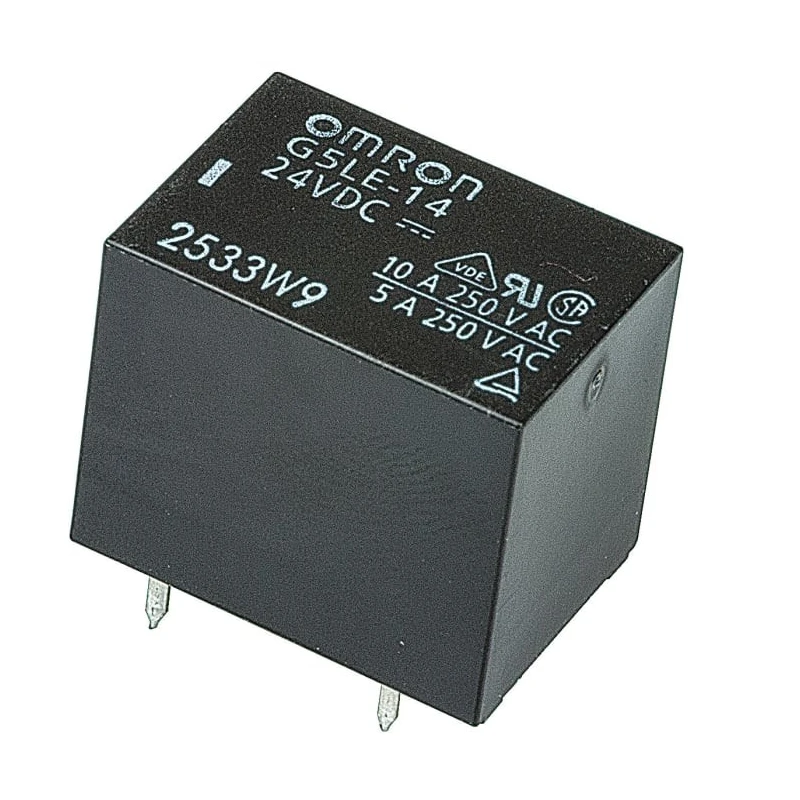

Omron PCB Power Relay 24V DC Coil 10A Switching Current 1 NO G5LE-14 DC24
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-14 DC24 |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, EN, UL |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Features a 1 NO (Normally Open) contact configuration.
- Low coil power consumption of 400mW ensures energy efficiency.
- Compact subminiature 'sugar cube' design measuring 22.5 x 16.5 x 19 mm.
- Capable of switching up to 1.2kVA power for AC and 30V DC voltage.
- Operates reliably within -25°C to 85°C temperature range.
- Constructed with silver alloy contacts for durability and low contact resistance.
- Meets CSA, EN, and UL standards and approvals.
- Ideal for use in industrial, automation, and electronic control systems.
Product Description
Omron G5LE-14 DC24 PCB Power Relay offers a 24V DC coil voltage and supports a switching current of 10A, making it an ideal component for control circuit applications in industrial automation and electronics. This relay is part of the G5LE series known for its subminiature 'sugar cube' format, allowing compact and efficient integration onto printed circuit boards.
It features a single normally open (1 NO) contact configuration with silver alloy contacts, ensuring low contact resistance and high durability during operation. The relay can handle switching power up to 1.2kVA AC and switch DC voltages up to 30V, suitable for a wide range of control and signaling uses.
The coil power consumption is minimal at 400mW, enhancing energy efficiency in control systems. Its operating temperature range spans from -25°C to 85°C, providing reliable performance under varying environmental conditions. The relay's physical dimensions of 22.5 mm length, 16.5 mm width, and 19 mm height facilitate easy PCB mounting and assembly.
Certified with CSA, EN, and UL approvals, this relay meets safety and quality benchmarks, ensuring dependable operation in demanding industrial, laboratory, HVAC, manufacturing, and electrical automation scenarios. Manufactured in Malaysia, the G5LE-14 DC24 upholds strict quality standards expected in professional applications.
Features a 1 NO contact configuration for control applications. Compact subminiature 'sugar cube' form factor for PCB mounting. Switches up to 10A current with 1.2kVA AC power rating. Coil voltage of 24V DC with 400mW power consumption.
Operating temperature range from -25°C to 85°C for diverse environments. Silver alloy contacts provide durability and low resistance. Meets UL, CSA, and EN standards for safety and quality. Suitable for use in industrial automation and electronic control systems.
For professionals seeking high-performance Power Relays for automation and electronic control, the Omron G5LE-14 DC24 is an excellent choice. Explore more high-quality relays and components through EnvMart to enhance your projects and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various control applications.
The coil voltage for the Omron G5LE-14 DC24 is 24V DC.
It can switch AC voltages up to 250V.
The relay measures 22.5 mm in length, 16.5 mm in width, and 19 mm in height.
It operates reliably within a temperature range of -25°C to 85°C.
This model features a single normally open (1 NO) contact configuration.
The coil power consumption is 400mW, which enhances energy efficiency.
The contacts are constructed from silver alloy, ensuring low contact resistance and durability.
It meets CSA, EN, and UL standards and approvals, ensuring compliance with safety and quality benchmarks.
The contact resistance is 100mΩ, which contributes to its efficient performance.
This relay is designed for PCB mounting, facilitating easy integration into electronic systems.
It can switch DC voltages up to 30V.
