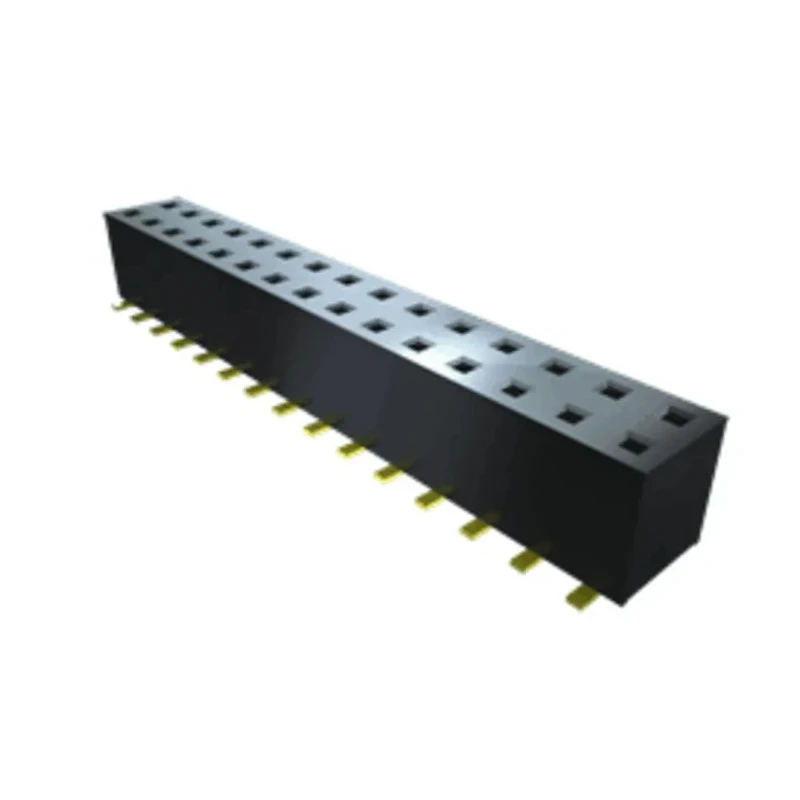

Samtec Straight Surface PCB Socket 34-Contact 2 Row 2 mm Pitch Solder TLE-117-01-G-DV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | TLE-117-01-G-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TLE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket includes 34 female contacts with phosphor bronze material for durability.
- It supports a current rating of 3.2A per pin, ensuring robust electrical performance.
- Gold plating on contacts enhances corrosion resistance and conductivity.
- Constructed with liquid crystal polymer housing for high insulation and thermal stability.
- Operates within a temperature range from -55°C to 125°C suitable for demanding industrial environments.
- Designed for surface mount technology with solder termination type for secure PCB attachment.
- The connector system is a board-to-board type with a straight orientation for easy integration.
- Part of Samtec's TLE series, known for cost-effective and reliable single beam socket solutions.
Product Description
Samtec TLE-117-01-G-DV is a high-precision straight surface PCB socket featuring 34 female contacts arranged in 2 rows with a 2 mm pitch. This socket is designed to provide secure board-to-board connections in electronic assemblies, suitable for various industrial and commercial electronic manufacturing applications.
The housing is made of black liquid crystal polymer, offering excellent insulation and high mechanical stability. Contacts are constructed from phosphor bronze with gold plating to ensure excellent electrical conductivity and resistance to corrosion. The socket supports a current rating of 3.2 amperes per contact, addressing moderate power handling needs.
Operating temperature ranges from a low of -55°C to a high of 125°C, making the socket suitable for environments requiring wide temperature tolerances such as industrial and automotive electronics. Its surface mount type with solder termination ensures reliable PCB attachment with stable mechanical and electrical connections.
As part of the Samtec TLE series, this socket is a cost-effective solution utilizing the Tiger Beam single beam technology known for long-term durability and performance. The straight orientation and board-to-board connector system facilitate easy integration in complex PCB designs.
34 female phosphor bronze contacts with gold plating. 2 rows of contacts with 2 mm pitch spacing. Board-to-board connector system with straight orientation. Liquid crystal polymer housing for enhanced insulation and durability.
Current rating of 3.2A per pin with solder termination. Wide operating temperature range: -55°C to 125°C. Cost-effective TLE series Tiger Beam design.
This PCB socket is ideal for electronics manufacturing and repair in industrial, commercial, and research settings requiring reliable and standardized board-to-board connections. Explore similar high-performance PCB Sockets and connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3.2A per pin, ensuring robust electrical performance.
It features a 2 mm pitch with a total of 34 female contacts arranged in 2 rows.
The socket operates within a temperature range from -55°C to 125°C, suitable for demanding industrial environments.
The housing is made of liquid crystal polymer, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
It utilizes a solder termination type for secure PCB attachment.
This model has a straight orientation, designed for board-to-board connections.
It is designed as a board-to-board connector system, facilitating easy integration in electronic assemblies.
This socket has 2 rows of contacts, providing a compact design for electronic applications.
It is part of Samtec's TLE series, known for cost-effective and reliable single beam socket solutions.
This socket is suitable for various industrial and commercial electronic manufacturing applications, particularly where reliable board-to-board connections are required.
The gold plating enhances corrosion resistance and improves electrical conductivity, ensuring reliable performance over time.
The country of origin for this socket is India.
