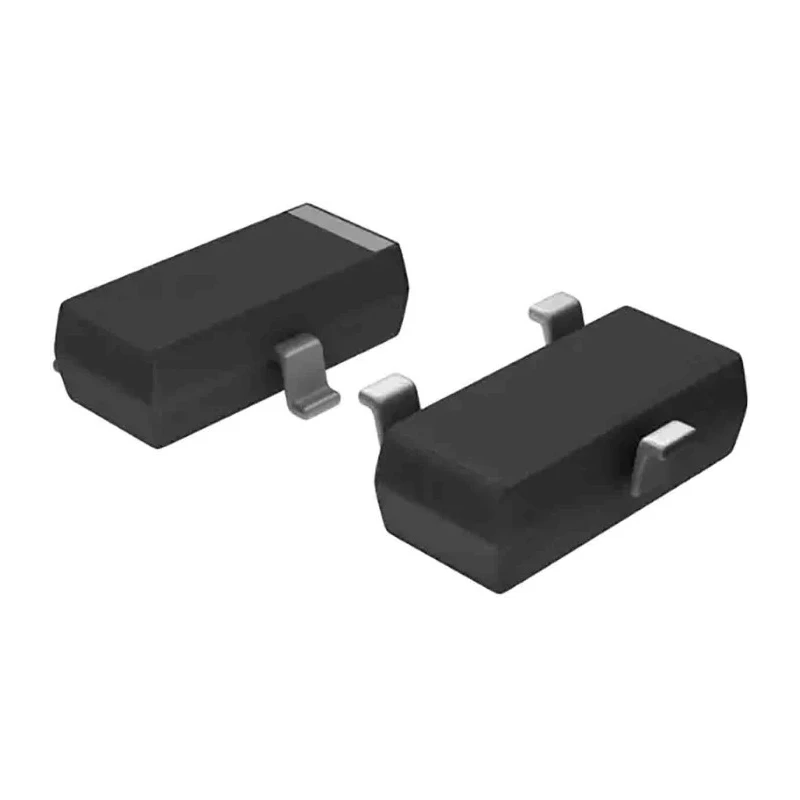

Renesas Electronics Precision Series Voltage Reference 5V 0.2% Initial Accuracy 3-Pin SOT-23 ISL21080CIH315Z-TK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.12mm |
| Length | 3.04mm |
| Model | ISL21080CIH315Z-TK |
| Mount Type | Surface |
| Output type | Fixed |
| Series | ISL21080 |
| Temperature Coefficient | 50 ppm/°C |
| Output Current | 7mA |
| Topology | Series |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Reference Type | Precision |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 350 μV/V |
| Minimum Input Voltage | 2V |
| Pin Count | 3 |
| Reference Voltage | 5V |
| Initial Accuracy | 0.2 % |
Key Features
- Offers a fixed 5V output voltage with 0.2% initial accuracy.
- Operates with ultra-low supply current typically 310nA and maximum 1.5μA.
- Features a low temperature coefficient of 50 ppm/°C for stable voltage reference.
- Output current capability is ±7mA ensuring stable output across different loads.
- Compact 3-pin SOT-23 package ensures ease of surface mounting on PCB.
- Wide operating temperature range from -40°C to +85°C suitable for industrial applications.
- Low output voltage noise of 0.30μVP-P between 0.1Hz to 10Hz enhances precision measurements.
- Ensured line regulation of 350 μV/V for voltage stability under varying supply voltage.
Product Description
Renesas Electronics ISL21080CIH315Z-TK Precision Series Voltage Reference is a high-performance fixed voltage reference device designed for sensitive and accurate voltage reference needs. It provides a fixed 5V output with ultra-low operating current, making it highly efficient for use in portable and low-power applications.
This device is packaged in a compact 3-pin SOT-23 surface mount package enabling easy integration in complex electronic circuits. It features a remarkable initial accuracy of 0.2%, and a low temperature coefficient of 50 ppm/°C, which allows consistent performance under varying thermal conditions.
The ISL21080 features a maximum supply current of 1.5μA, minimizing power consumption while ensuring steady output for sensitive instrumentation. Its output current capability of ±7mA makes it suitable for driving loads directly, maintaining steady output voltage under varying conditions.
Operating reliably over a temperature range from -40°C to +85°C, this voltage reference meets industrial standards and is suitable for a range of applications including industrial instrumentation, laboratory measurement devices, and power management circuits.
Fixed 5V voltage output with ±0.2% initial accuracy. Low noise output voltage at 0.30μVP-P (0.1Hz to 10Hz). Ultra-low maximum supply current of 1.5μA for low power consumption. Wide operating temperature range from -40°C to +85°C.
Line regulation at 350 μV/V for stable output voltage. Compact 3-pin SOT-23 surface mount package. Output current capability of ±7mA for driving loads.
This voltage reference IC is ideal for use in power management systems, industrial automation, electronic measurement equipment, and other applications requiring a stable and precise Voltage Reference.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5V.
It has an initial accuracy of ±0.2%.
The ISL21080CIH315Z-TK operates within a temperature range of -40°C to +85°C.
The maximum supply current is 1.5μA, which helps minimize power consumption.
It can deliver an output current of ±7mA, ensuring stable output across different loads.
This voltage reference is packaged in a compact 3-pin SOT-23 surface mount package.
The line regulation is specified at 350 μV/V, providing voltage stability under varying supply conditions.
It features a low temperature coefficient of 50 ppm/°C, which helps maintain consistent performance across temperatures.
The minimum input voltage is 2V, and the maximum input voltage is 5.5V.
It is suitable for use in industrial instrumentation, laboratory measurement devices, and power management circuits.
The height is 1.12mm and the length is 3.04mm, making it compact for integration into electronic circuits.
It is a precision voltage reference, designed for sensitive and accurate voltage reference needs.
