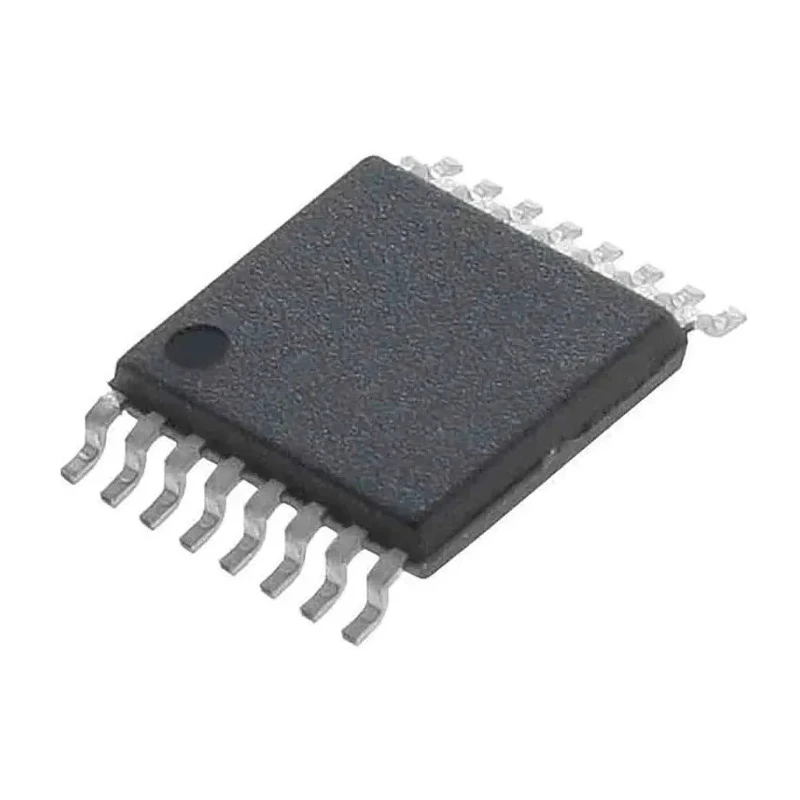

Renesas Electronics Line Transceiver 16-Pin SSOP, CMOS Logic, 3V-5.5V Supply, 0.3μs Delay ICL3221CAZ-T

Renesas Electronics ICL3221CAZ-T is a 16-pin SSOP line transceiver integrated circuit designed for RS-232 transmitter and receiver applications. It operates on a wide supply voltage range from 3 volts to 5.5 volts, making it suitable for portable and low-power devices such as PDAs, notebooks, and laptops. The device utilizes CMOS logic family technology, ensuring low power consumption and high efficiency.

The transceiver supports single-ended input type and surface mount SSOP package, offering ease of integration in compact circuit designs. It features a maximum propagation delay time of 0.3 microseconds, allowing fast and reliable data communication. Operating temperature ranges from 0 to 70 degrees Celsius, making it suitable for standard industrial temperature environments.

Key functional advantages include latch-up free operation, combined automatic and manual power-down capabilities (except for certain models), and receiver hysteresis that enhances noise immunity and signal integrity. The device also minimizes power consumption in power-down states, drawing just 1 microampere, thereby extending battery life in portable applications.

Physically, the ICL3221CAZ-T transceiver measures 10.6 mm in length, 8.2 mm in width, and 2 mm in height, making it highly adaptable for space-constrained designs. It complies with RoHS standards, ensuring environmental safety compliance. This product is ideal for industrial electronics, communication devices, embedded systems, and other electronic equipment requiring reliable serial communication interfaces.

Adopts CMOS logic family for efficient line transceiver operation. Configured with 16 pins in an SSOP surface mount package. Supports supply voltage ranging from 3V minimum to 5.5V maximum. Maximum propagation delay of 0.3 microseconds ensures fast communication.

Operating temperature range from 0 degrees Celsius to 70 degrees Celsius. Latch-up free design with automatic and manual power down features. Receiver hysteresis improves noise immunity in communication lines. Low supply current in power-down state of only 1 microampere.

Compact physical dimensions of 10.6 mm length, 8.2 mm width, and 2 mm height. Designed without automotive standard compliance for general industrial use.
