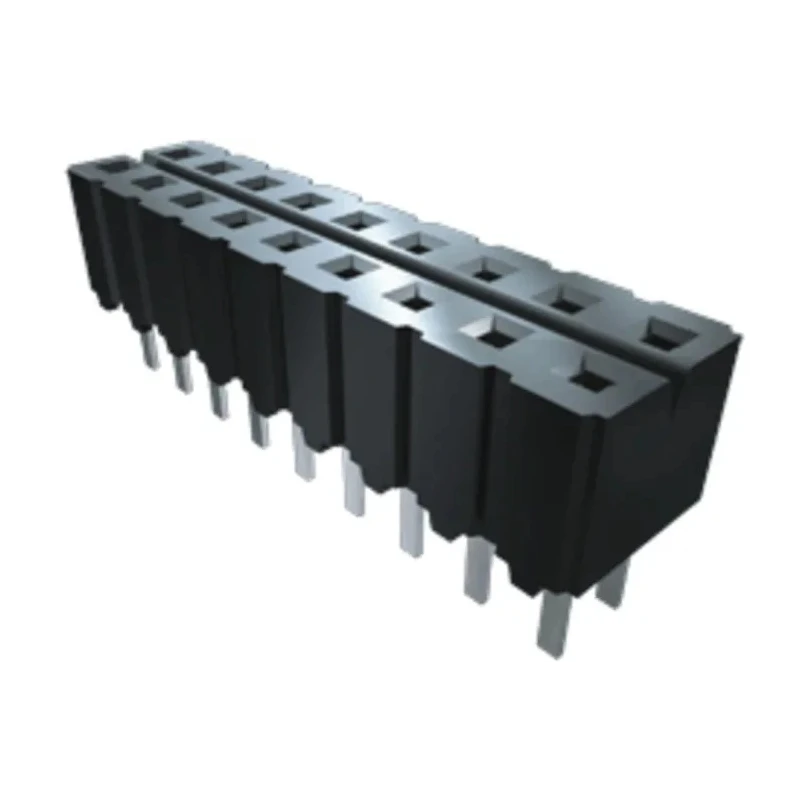

Samtec PCB Socket Closed Entry 2 Row 10 Contact Points 2.54 mm Pitch Through Hole Solder Termination CES-105-01-S-D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Model | CES-105-01-S-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | CES |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 10 |
Key Features
- The housing material is black glass filled polyester offering durability and insulation.
- Contacts are made of phosphor bronze with gold over tin plating for reliable electrical connection.
- Designed for through hole mounting with solder termination.
- Supports a current rating of 5.5 amperes per contact.
- Operating temperature ranges from -55°C to +125°C suitable for varied industrial environments.
- The socket orientation is straight to suit standard PCB assembly.
- Complies with RoHS standards ensuring environmental and safety compliance.
Product Description
The Samtec CES-105-01-S-D is a high quality PCB socket designed for board-to-board applications, featuring a closed entry, 2.54 mm pitch, and a low profile form factor suitable for compact electronic designs.
This socket contains 10 contact points arranged in two rows and uses black glass filled polyester for the housing, ensuring electrical insulation and mechanical durability. The contacts are constructed from phosphor bronze and plated with gold over tin, enhancing conductivity and resistance to corrosion.
It is designed for through hole mounting with solder termination, facilitating robust mechanical and electrical board integration. Each contact supports a current rating of 5.5 amps, allowing reliable power transmission in diverse electronic circuits.
The socket operates reliably within a temperature range of -55°C to 125°C, making it versatile for industrial, manufacturing, and electronic assembly environments. The straight orientation of the socket provides standard mounting compatibility for PCB layouts.
Compliant with RoHS standards, this component meets environmental safety regulations. Ideal for electronics component manufacturers and engineers involved in PCB design and assembly, it supports high-density, durable, and efficient connections.
The housing offers electrical insulation and mechanical strength. Phosphor bronze contacts plated with gold over tin provide durable electrical contact. Designed for solder through hole mounting ensuring stable PCB integration.
Rated for 5.5A current per contact for electrical load capacity. Wide operation temperature range for industrial suitability. Complies with RoHS environmental standards.
This Samtec CES series socket is an excellent choice for industrial and commercial electronic applications, supporting precise, reliable connector solutions in demanding environments.
Explore more PCB Sockets and connectors in the Electronics & Electricals category on EnvMart for your next project or production run.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5.5 amperes per contact, allowing reliable power transmission in electronic circuits.
The contact points in this socket are arranged with a pitch of 2.54 mm, suitable for various PCB designs.
The housing is made of black glass filled polyester, while the contacts are constructed from phosphor bronze with gold over tin plating.
It operates reliably within a temperature range of -55°C to 125°C, making it suitable for diverse industrial environments.
This socket features 10 contact points arranged in two rows, designed for board-to-board applications.
It uses solder termination, facilitating robust mechanical and electrical integration with PCBs.
The socket has a straight orientation, providing standard mounting compatibility for PCB layouts.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
This model is designed for through hole mounting, which is suitable for various PCB assembly applications.
This socket belongs to the CES series, which is designed for board-to-board applications.
The country of origin for this model is India.
The contacts are plated with gold over tin, enhancing conductivity and corrosion resistance.
