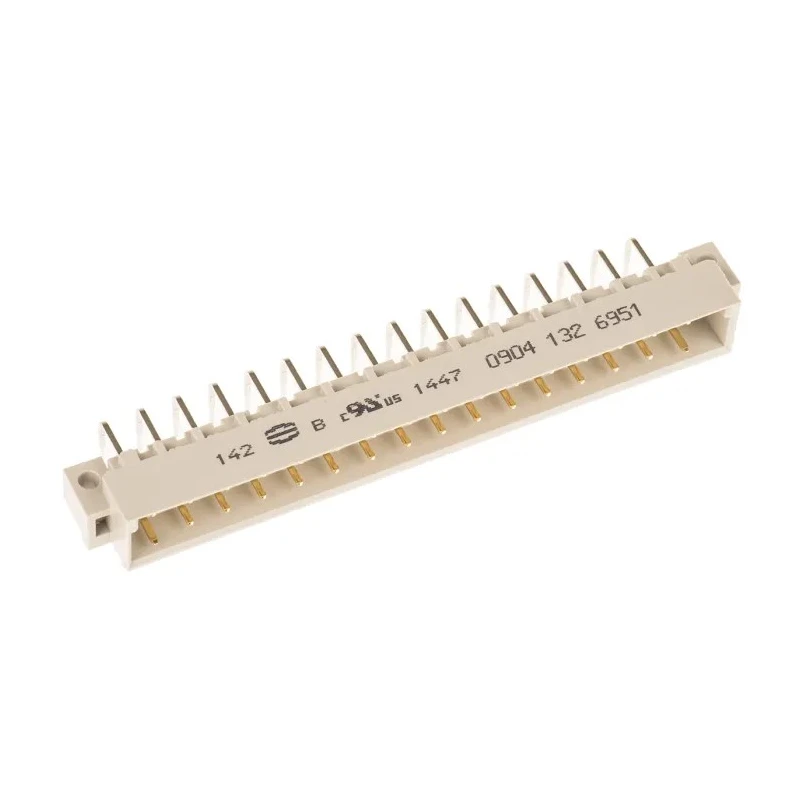

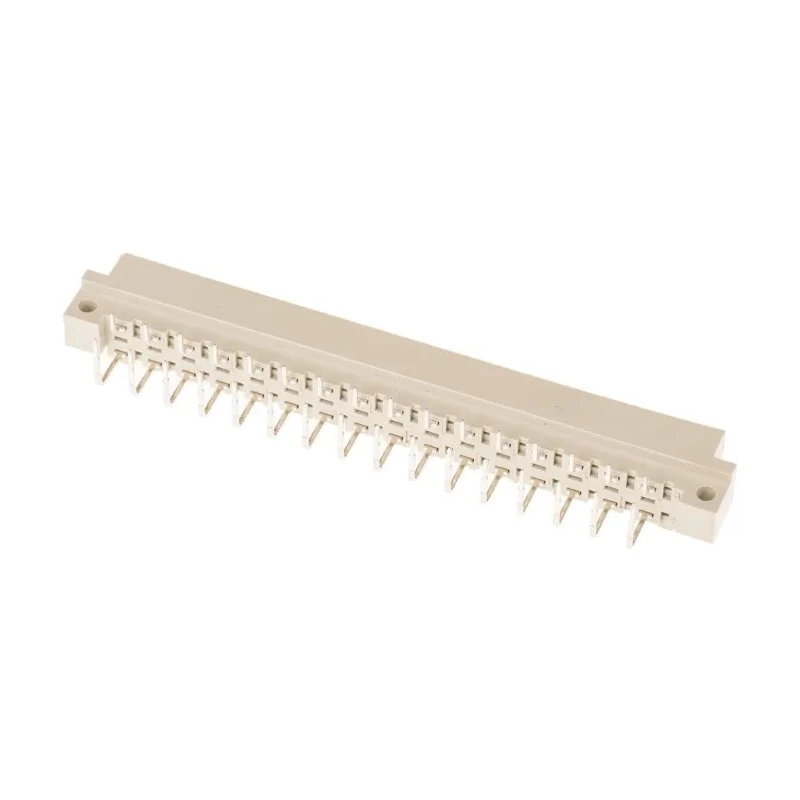

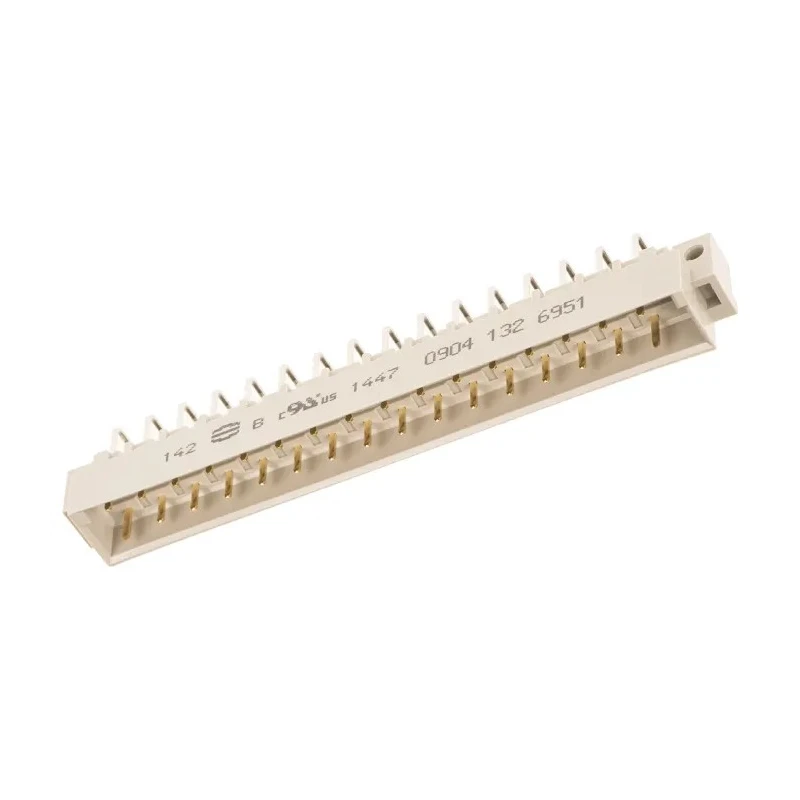

HARTING DIN 41612 Connector 32 Way 5.08 mm Pitch, Through Hole Mount, Type C/2, Solder Termination Class C2, 2 09041326951

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 32 Way 5.08 mm Pitch, Through Hole Mount, Type C/2, Solder Termination Class C2, 2 09041326951

Name: HARTING DIN 41612 Connector 32 Way 5.08 mm Pitch, Through Hole Mount, Type C/2, Solder Termination Class C2, 2 09041326951
Brand: HARTING
SKU: 161978
Price: 10.41 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Right Angle
Current	6A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	5.08mm
Contact Plating	Gold over Nickel
Number of Contacts	32
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

This connector features 32 contacts arranged in 2 rows for versatile connection needs.
Gold over Nickel contact plating ensures superior conductivity and corrosion resistance.
Rated for a current of 6A per contact, supporting robust power transmission.
Operating temperature range from -55°C to 125°C accommodates harsh environments.
Constructed with durable copper alloy contacts and polybutylene terephthalate housing material.
Designed for through-hole mounting with a 5.08 mm pitch for secure PCB installation.
Class C2 solder termination type ensures a reliable electrical connection.
Right angle orientation male connector facilitates compact board layouts.

Product Description

HARTING 09041326951 DIN 41612 Connector is a high-quality 32 Way, 5.08 mm pitch, through hole mount, Type C/2 connector with solder termination, Class C2 rating. This 2 row male right angle connector is engineered to meet demanding industrial, electronic, and power distribution applications.

Designed for reliable and durable board-to-board connections, the connector offers a maximum current rating of 6A per contact and operates efficiently within a wide temperature range of -55°C to 125°C. Its gold over nickel-plated copper alloy contacts ensure excellent conductivity and resistance to corrosion while the robust polybutylene terephthalate housing provides mechanical stability and insulation.

The 5.08 mm pitch spacing and through hole mounting style enable secure installations on printed circuit boards, making it suitable for Eurocard rack and backplane systems. This connector is ideal for industrial electronics, power supplies, railway transportation, and other applications requiring rugged power connectors with a long mating lifecycle.

32 contacts arranged in two rows enhance connection density. Gold over nickel-plated copper alloy contacts improve electrical performance. Rated for 6A per contact for reliable current handling. Thermoplastic housing offers durability and heat resistance.

Through hole mounting with 5.08 mm pitch for secure PCB assembly. Class C2 solder termination type ensures robust electrical joints. Right angle male orientation supports versatile circuit board layouts. Meets DIN 41612 standards relevant to industrial power connectors.

This connector is frequently used in industrial, manufacturing, electronic equipment assembly, and power supply systems. Its durable design makes it apt for use in harsh environments including railway and transportation applications.
