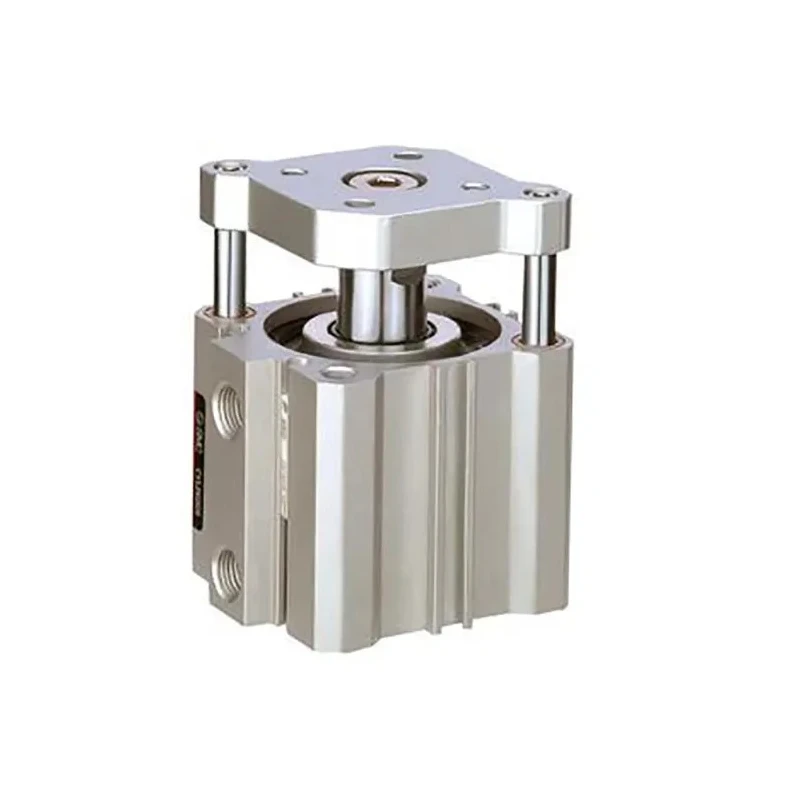

SMC Pneumatic Compact Cylinder 32mm Bore, 75mm Stroke, Double Acting, Aluminium Alloy Body CDQMA32TF-75

SMC CDQMA32TF-75 Pneumatic Compact Cylinder is a robust and precise actuator designed for industrial pneumatic applications. Featuring a 32mm bore diameter and 75mm stroke length, this double acting cylinder provides reliable and efficient linear motion. The aluminium alloy body ensures durability and corrosion resistance, making it suitable for demanding environments.

This cylinder incorporates a rubber bumper cushioning system which absorbs impact and prolongs service life. The both ends tapped mount type allows for flexible installation options in confined spaces or complex setups. Capable of handling a maximum operating pressure of 1 Mpa and piston speeds up to 500 mm/s, this actuator balances speed with controlled motion.

The single rod design and metric standard piston rod thread (1/8 inch G) provide compatibility and ease of maintenance. Operating temperature ranges from -10°C to 60°C allowing use in varied industrial conditions. Compact dimensions including a length of 58.5 mm, height of 45 mm, and width of 125 mm contribute to its versatility.

The series CDQM is well known for its high non-rotating accuracy of 0.2 or less and lateral load resistance four times that of standard models, enhancing precision and stability during operation.

Rubber bumper cushioning reduces impact and noise. Both ends tapped mount type for versatile setup. Aluminium alloy body offers lightweight strength and corrosion resistance. Maximum operating pressure of 1 Mpa suits most pneumatic systems.

Single rod type piston ensures precise linear movement. Wide temperature operating range from -10°C to 60°C. Compact size allows integration into tight spaces. Bore sizes available up to 100 mm for varied applications. Standard metric piston rod thread size 1/8 in G for easy fitting.

Ideal for industrial, manufacturing, and mechanical automation uses.

This pneumatic compact cylinder is suited for industrial tools and equipment sectors including manufacturing automation, fluid power systems, HVAC machinery, and laboratory automation. Its compact size and robust construction make it an excellent choice for applications requiring precise, repeatable actuation in limited spaces.

Explore more pneumatic piston rod cylinders in the SMC CDQM series for complementary actuator solutions. EnvMart provides quality industrial pneumatic equipment to enhance your operational efficiency.
