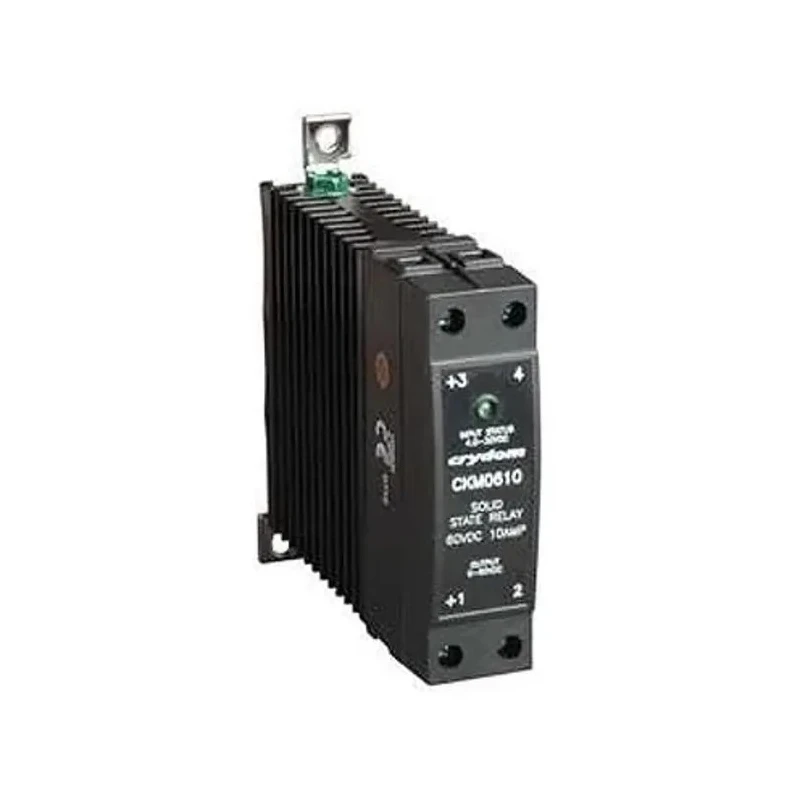

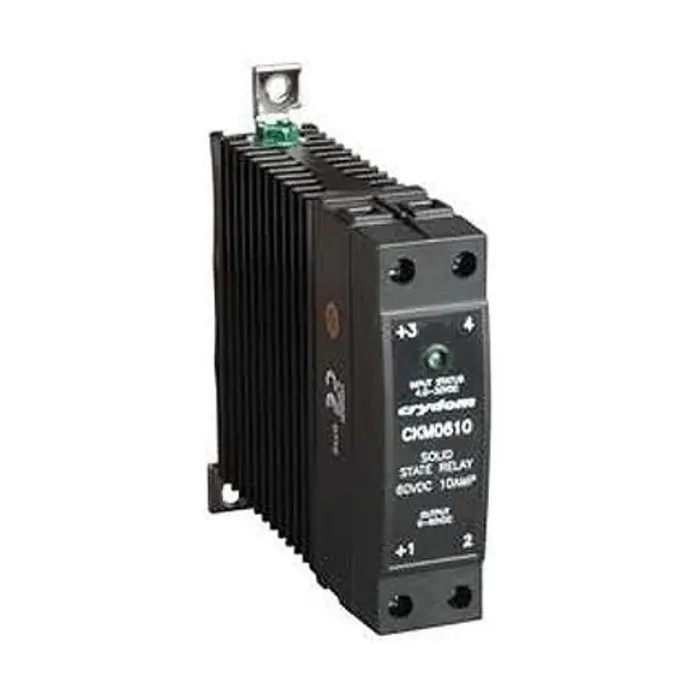

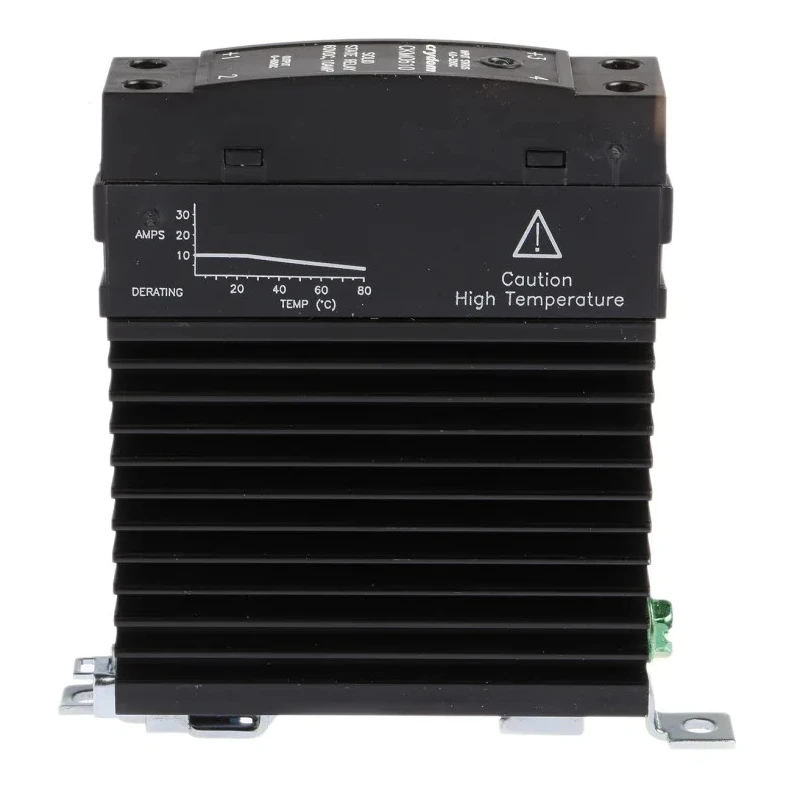

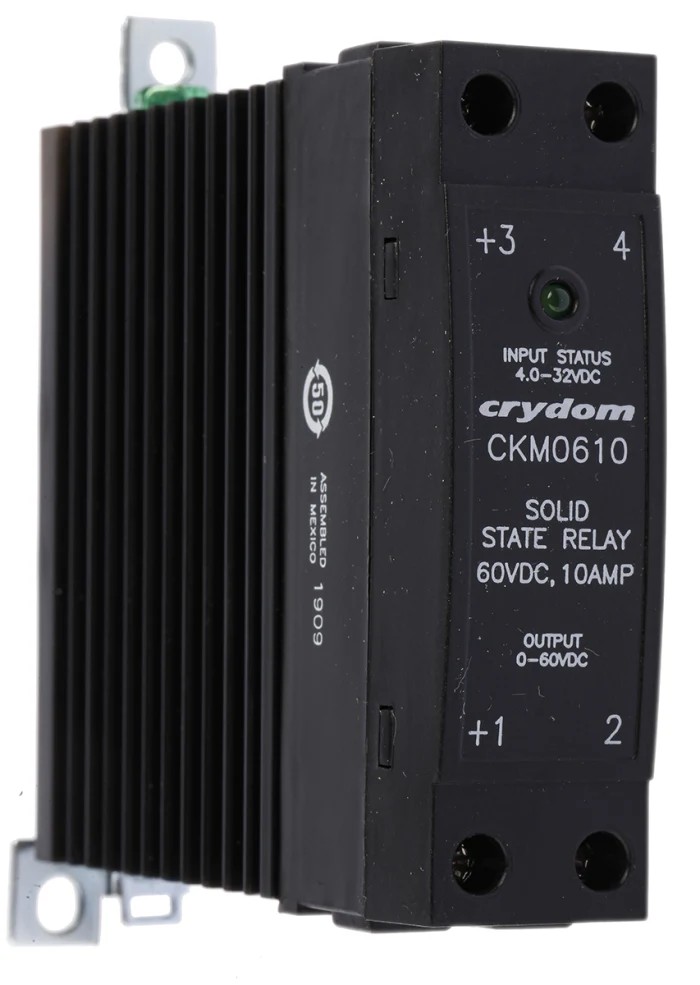

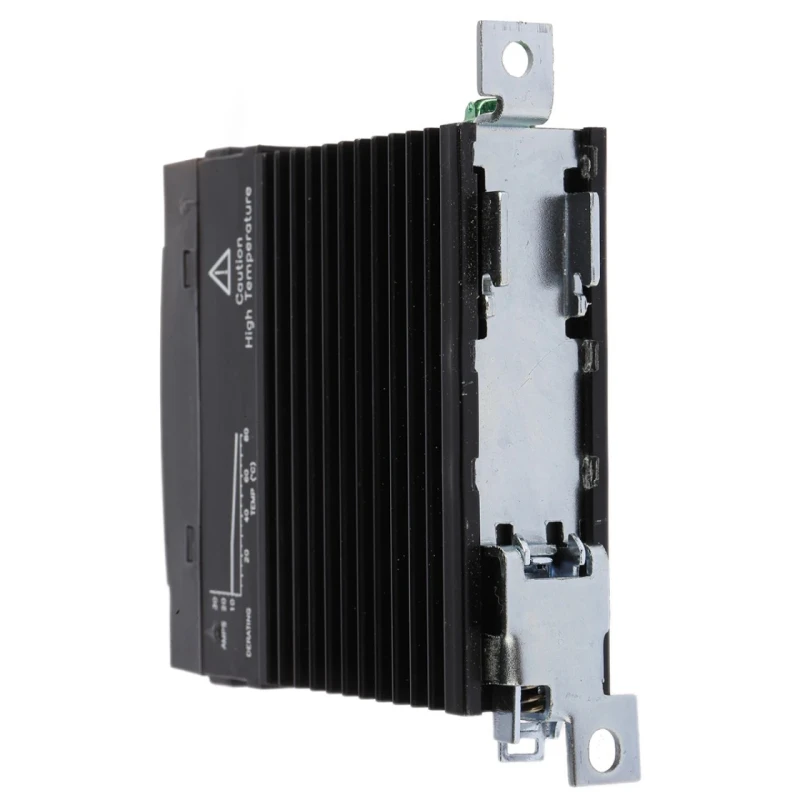

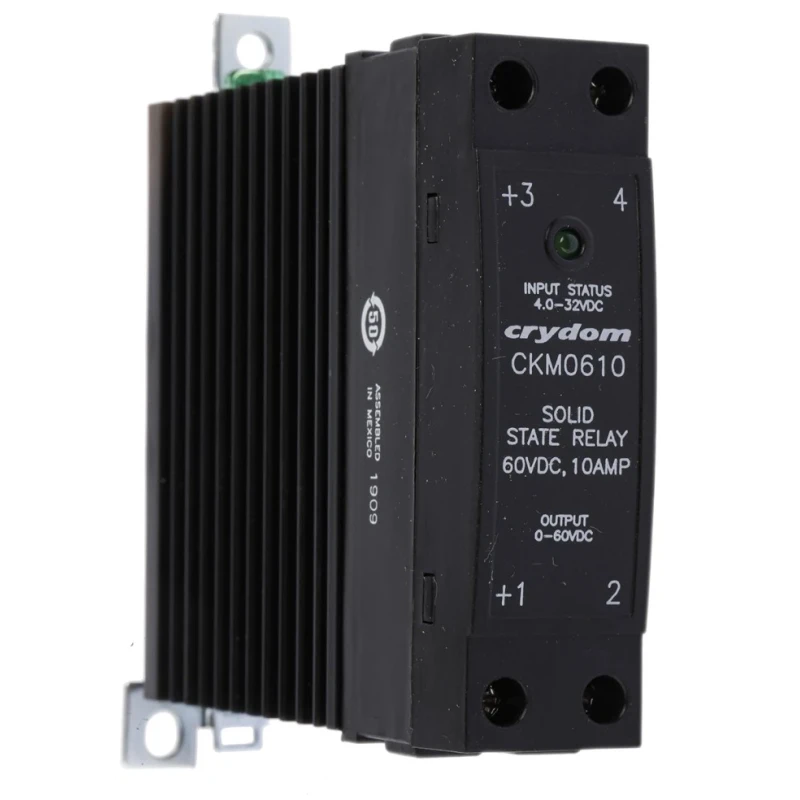

Crydom CKM Series Solid State Relay, 10 A Load, 60 V Load, DIN Rail Mount, 32 V Control CKM0610
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 81.9mm |
| Length | 81.3mm |
| Model | CKM0610 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | CKM |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Box Clamp |
| Maximum Load Current | 10A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 10V |
| Minimum Control Voltage | 4V ac/dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mA |
| On State Resistance | 20mΩ |
| Solid state relay,10A 0-60VdcBrand | Crydom |
Key Features
- Supports operating temperatures from -40°C to 80°C for harsh environments.
- Incorporates MOSFET transistor technology for low leakage and enhanced safety.
- Compact slim design measuring 81.3 mm length, 22.5 mm width, and 81.9 mm height.
- Features LED indicator for input status monitoring.
- Mounts easily on standard 35 mm DIN rails or panel installation.
- Box clamp terminal type ensures secure electrical connections.
- On-state resistance is 20 milliohms for efficient current flow.
- Off-state leakage current low at 0.1 mA to minimize power loss.
Product Description
Crydom CKM0610 solid state relay is engineered for industrial and automation applications requiring robust and reliable switching of electrical loads. This model supports a maximum load current of 10 amps with a load voltage up to 60 volts, making it suitable for controlling high-power devices such as pumps, motors, and industrial machinery.
Featuring MOSFET transistor technology, the relay provides adjustable output voltage and current parameters that optimize electrical supply efficiency and reduce leakage current, enhancing electrical safety. The thermally conductive epoxy encapsulation improves heat dissipation, enabling stable operation across a wide temperature range of -40°C to 80°C, suitable for harsh industrial environments.
The CKM0610 is designed for easy installation with DIN rail mounting compatible with standard 35 mm rails or direct panel mounting, supported by secure box clamp terminals. Its slim form factor of 81.3 mm length, 22.5 mm width, and 81.9 mm height takes minimal space in control panels.
Supports wide operating temperatures for harsh environments. Low leakage current for safe operation. LED indicator simplifies input status monitoring. Compact size reduces panel space requirements. Reliable box clamp terminal provides secure connections.
Robust SCR output handles heavy electrical loads. Thermally conductive encapsulation enhances heat dissipation. RoHS compliant ensuring environmental safety. Manufactured in Mexico for quality assurance.
This Solid State Relay is ideal for industrial automation, HVAC control, manufacturing equipment, water treatment systems, and other electrical switching applications that require reliable, efficient, and safe load control. Choose Crydom CKM0610 for consistent performance in demanding electrical control environments.
Explore more industrial relays and electrical components on EnvMart to meet your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 10 amps.
It supports a load voltage range from 10 volts to 60 volts.
This unit measures 81.3 mm in length, 22.5 mm in width, and 81.9 mm in height.
It is designed for DIN rail mounting, compatible with standard 35 mm rails, or can be directly panel mounted.
The relay operates within a temperature range of -40°C to 80°C.
This model features box clamp terminals for secure electrical connections.
The on-state resistance is 20 milliohms, which allows for efficient current flow.
The off-state leakage current is low at 0.1 mA, minimizing power loss.
It incorporates MOSFET transistor technology, which provides low leakage and enhanced safety features.
Yes, it is RoHS compliant, ensuring environmental safety.
This relay is suitable for industrial automation, HVAC control, manufacturing equipment, and water treatment systems.
It is manufactured in Mexico, ensuring quality assurance.
