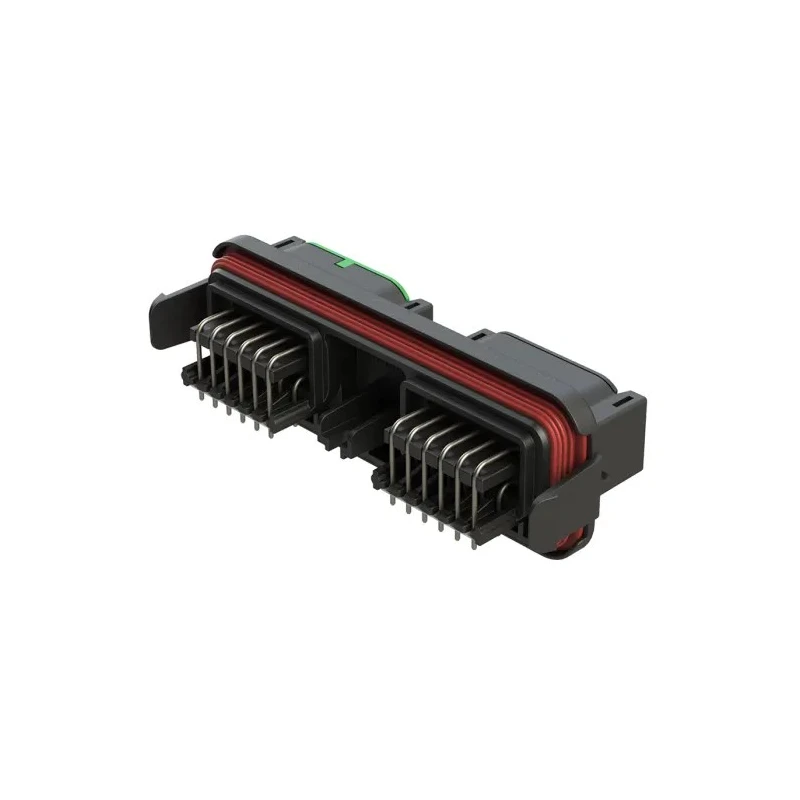

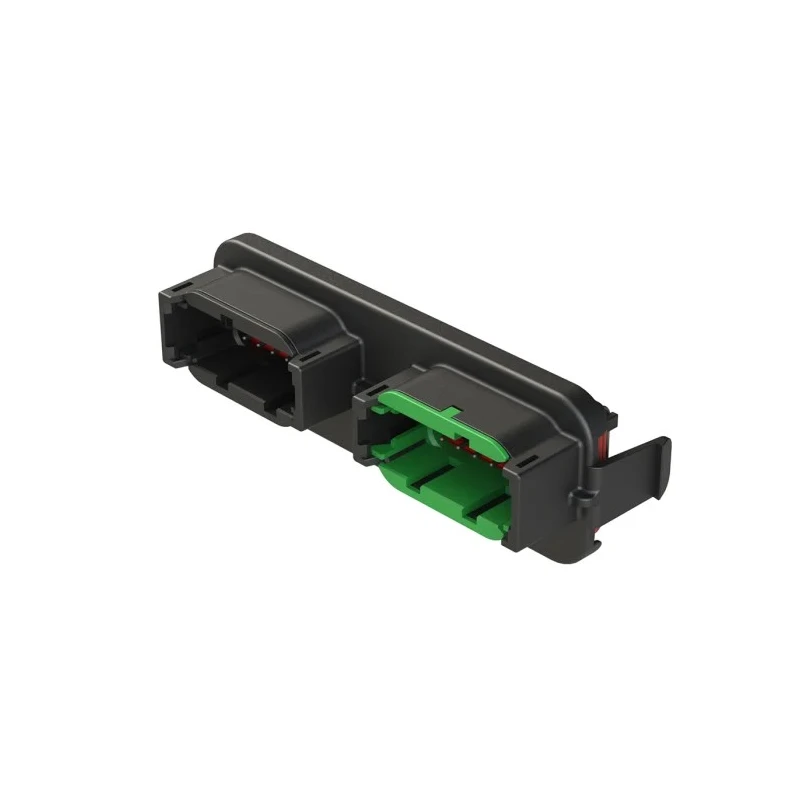

Amphenol Industrial Armor IPX Automotive Connector Male Black PCB 24 Way Solder Termination ATM13-12PB-12PC-BM03

Amphenol Industrial ATM13-12PB-12PC-BM03 automotive connector is a 24-way male header designed for reliable PCB solder termination. This connector is constructed with a thermoplastic housing and copper alloy contacts plated with tin, ensuring durability and stable electrical conductivity.

With a current rating of 7.5A and an ingress protection rating of IP69K, the connector is suitable for demanding automotive and industrial environments where resistance to dust, water, and harsh conditions is essential. Operating temperature range from -55°C to 125°C enables use in extreme climates.

The connector features two rows of 12 contacts each, arranged in a compact form factor with dimensions of 101mm width, 35mm height, and 36.9mm depth. It accepts PCB mount installation with a male header termination style, facilitating efficient circuit board wiring.

This Armor IPX series connector supports robust automotive electrical connections, suitable for manufacturing, automotive wiring harness assembly, and industrial equipment requiring secure and precise connectivity. Its black color and solder termination type provide an excellent combination for standard industry applications.

Manufactured in China, this product complies with industrial quality benchmarks, although it carries no specific certifications. The connector is comparable to the part number DTM13-12PB-12PC-R008 in performance and use case.

The connector features 24 contacts arranged in 2 rows for efficient wiring. Male gender with header type termination suitable for PCB mounting. Current rating of 7.5A ensures robust electrical performance. Constructed with thermoplastic housing and copper alloy contacts plated with tin.

Rated IP69K for ingress protection suitable for harsh environments. Operates reliably in temperatures from -55°C to 125°C. Compact dimensions with width 101mm, height 35mm, and depth 36.9mm. Ideal for automotive and industrial electrical applications requiring secure connections.

Designed as part of the Armor IPX series specifically for automotive connector uses. Manufactured origin is China, emphasizing quality control and standards compliance. Explore the Amphenol Industrial range of Automotive Connectors at EnvMart for comprehensive solutions in automotive and industrial electronic component connectivity.
