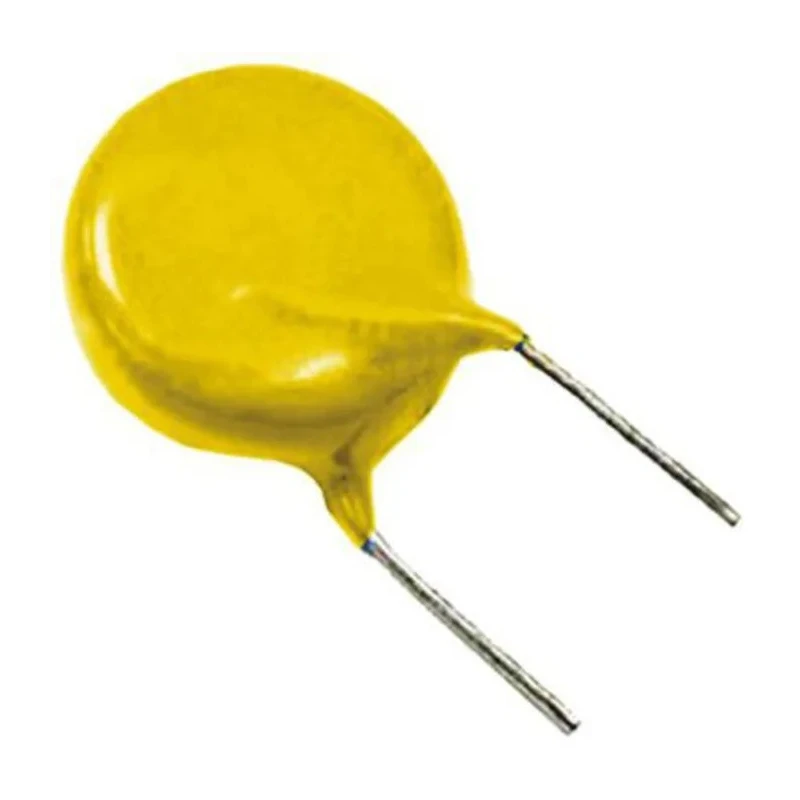

Vishay Single Layer Ceramic Capacitor 4.7 nF 500V AC ±20% Y5V Dielectric Through Hole Radial Terminal VY1472M51Y5VQ63V0

Vishay VY1472M51Y5VQ63V0 is a Single Layer Ceramic Capacitor designed for robust application performance with a capacitance of 4.7 nF and rated at 500V AC voltage. It features a through-hole mount and radial terminal type making it suitable for a variety of PCB assembly processes.

The capacitor utilizes a Y5V dielectric which combined with a ±20% tolerance ensures stable performance for filtering and coupling purposes in electronic circuits. With a temperature operating range from -40°C to 125°C, it offers dependable operation in harsh thermal environments.

Its silver-plated ceramic disc encapsulated in a flame retardant epoxy resin ensures high reliability and safety standards compliance including RoHS, CSA, DIN EN 60384-14, and IEC 60384-14. The component also offers a dissipation factor of 2.5%, contributing to efficient energy management.

Mechanically, the capacitor measures 17 mm in height, 13 mm in diameter, and 5.5 mm in width, with a pin count of 2 constructed from tinned copper clad steel providing robust structural integrity and excellent electrical connectivity.

This Vishay capacitor is suitable for across-the-line, line by-pass, and antenna coupling applications and is capable of passing 10 kV pulses making it highly reliable for industrial electronics, power supplies, and communication equipment.

Features a radial terminal type with through-hole mounting. Constructed using Y5V dielectric material with a capacitance tolerance of ±20%. Designed to operate reliably between -40°C and a maximum of 125°C. Silver-plated ceramic disc encased in flame-retardant epoxy resin for high reliability.

Pin count of 2 with dimensions: 17 mm height, 13 mm diameter, and 5.5 mm width. Complies with RoHS, CSA, DIN EN 60384-14, and IEC 60384-14 standards. Capable of withstanding 10 kV pulses and suitable for line by-pass and antenna coupling applications.

Ideal for industrial and electronic component use in various manufacturing and electrical engineering sectors.

These capacitors are recommended for use in industrial, manufacturing, electronic assembly, and power management applications and are widely supported by mounting and manufacturing systems for high efficiency and reliability in circuit designs.
