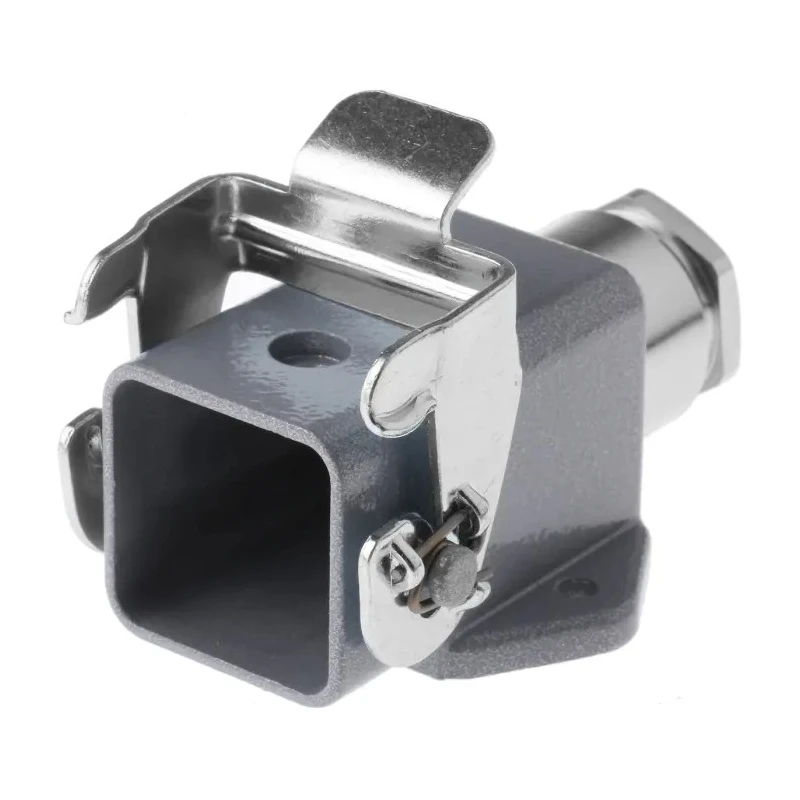

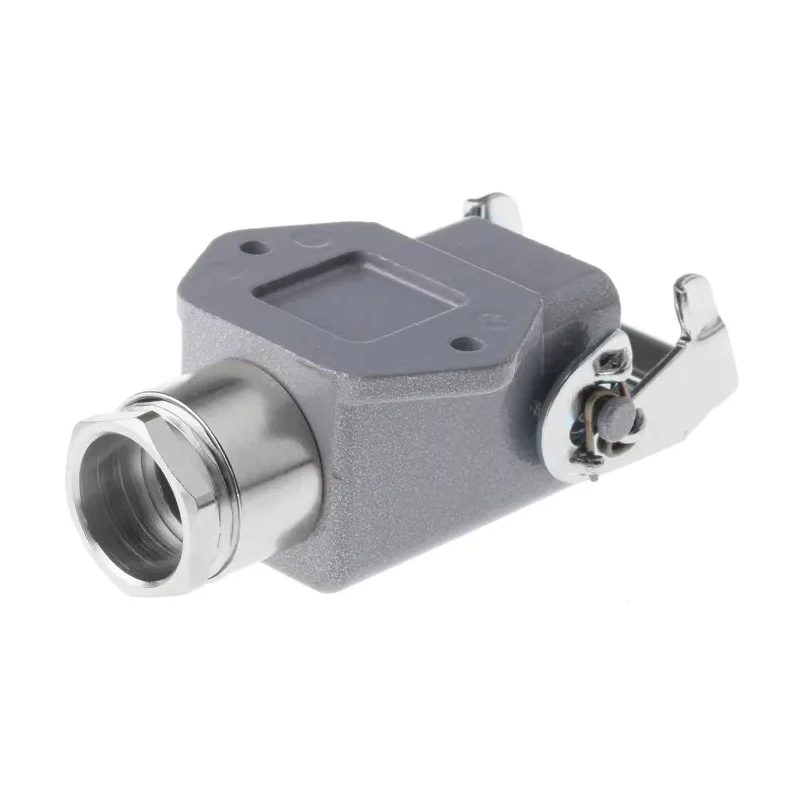

EPIC Heavy Duty Power Connector Housing Base Die Cast Zinc IP66 1 Lever H-A Series 10424500

EPIC 10424500 is a Heavy Duty Power Connector Housing base constructed using die cast zinc material, offering robust mechanical protection and an IP66 ingress protection rating. This housing is part of the H-A series, which features 1 lever locking for secure connections, suitable for harsh industrial applications requiring reliable and dust/water resistant power connectors.

Designed for through panel or surface mounting, the housing supports a wide range of connector configurations including 3, 4, 10, 16, 21, 32, and 48 way options, with metal construction ensuring durability. These housings are compatible with plug and socket kits that use screw terminals with wire protection, accommodating cables up to 2.5 mm². Contacts utilize hard silver-plated copper alloy for optimal conductivity.

The design allows interchangeable inserts for appliance inlets or free cable mounting sockets and ensures a consistent earth connection through all inserts. Cable mounting includes compression glands that seal cables against ingress to IP54 or IP65 standards depending on configuration, suitable for industrial group C applications rated at 250 Vac.

Robust die cast zinc metal body provides mechanical strength and longevity. IP66 rated housing ensures protection against dust and water jets. Single lever locking mechanism allows fast and secure connections. Supports a range of configurations from 3 up to 48 way connectors.

Silver-plated copper alloy contacts provide reliable electrical conductivity. Interchangeable plug and socket inserts enable flexible connectivity options. Compression glands support circular cable sealing to IP54 and IP65 standards.

Manufactured in Germany, the EPIC H-A series heavy duty connector housings are widely used in industrial, manufacturing, and electrical engineering applications requiring high-reliability power connections. The robust construction and IP rating make them suitable for demanding environments such as factories, machinery, and automation.
