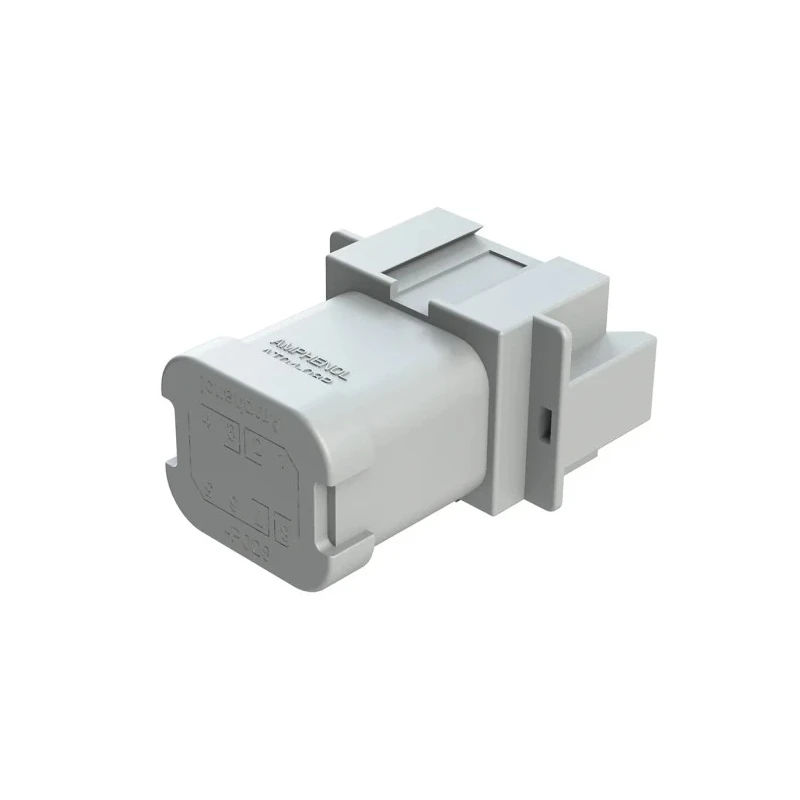

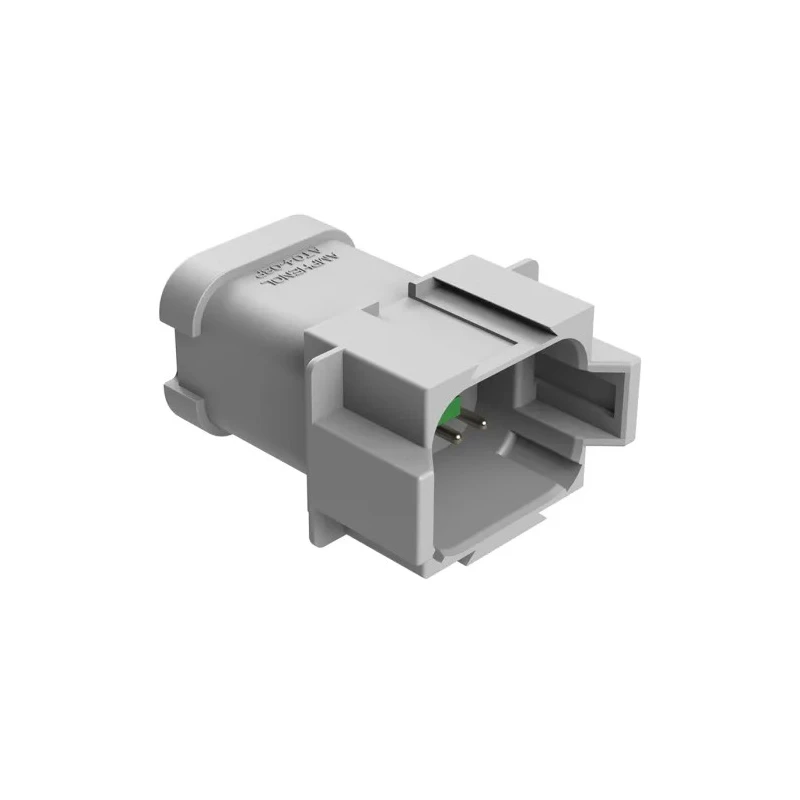

Amphenol Industrial AT Automotive Connector Male Grey Cable 8 Way Crimp Termination AT04-08PA-P028
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 13, 26A |
| Height | 23.7mm |
| Model | AT04-08PA-P028 |
| Depth | 47.5mm |
| IP Rating | IP67 |
| Width | 36.4mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AT |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Nickel Plated |
| Number of Contacts | 8 |
Key Features
- This male connector features 8 contacts organized in 2 rows for versatile wiring configurations.
- Contacts support currents of 13A and 26A, offering reliable electrical performance.
- The connector termination is by crimp method ensuring secure and durable connections.
- Constructed with thermoplastic housing and copper alloy contacts plated with nickel for corrosion resistance.
- Rated for extreme environments with an operating temperature range from -55°C to 125°C and IP67 protection.
- The grey connector is designed for cable mounting with integrated latch and wedgelock for secure mating.
- Suitable for heavy-duty, transportation, marine, military, agricultural, diagnostic, and alternative energy applications.
Product Description
Amphenol Industrial AT Automotive Connector model AT04-08PA-P028 is an 8-way male automotive connector designed for reliable cable termination using the crimp method. The grey thermoplastic housing is durable and provides environmental protection rated at IP67, suitable for harsh industrial and automotive environments. Rated for currents of 13A and 26A across different contacts, it supports various power requirements with copper alloy contacts nickel plated for enhanced corrosion resistance.
This connector features 8 contacts arranged in 2 rows and is designed for cable mount applications with an integrated latch and wedgelock ensuring secure and proper contact alignment. Operating temperature ranges from -55°C to 125°C, making it suitable for extreme climatic conditions common in transportation, marine, agricultural, military, diagnostic, and alternative energy sectors.
Amphenol’s HYPERBUSS™ AT series connectors like this provide a cost-effective and high-performance solution for applications requiring a common "bussed" electrical pathway. The product is engineered for superior environmental sealing and retention capabilities, intermateable with standard AT Series plugs and other industry-standard connectors.
This male cable connector offers 8 contacts in a rectangular thermoplastic housing. Nickel-plated copper alloy contacts provide excellent conductivity and durability. Crimp termination ensures stable and long-lasting contact retention.
IP67 environmental rating protects against dust and water ingress. Wide operating temperature range supports industrial and automotive use cases. Integrated latch and wedgelock improve mating security and alignment. Ideal for heavy duty transportation, marine, and military applications.
Set your projects apart with the reliable Amphenol AT04-08PA-P028 Automotive Connector, delivering rugged performance and easy installation for cable-based electrical systems. Explore more industrial connectors and automotive solutions at EnvMart.
