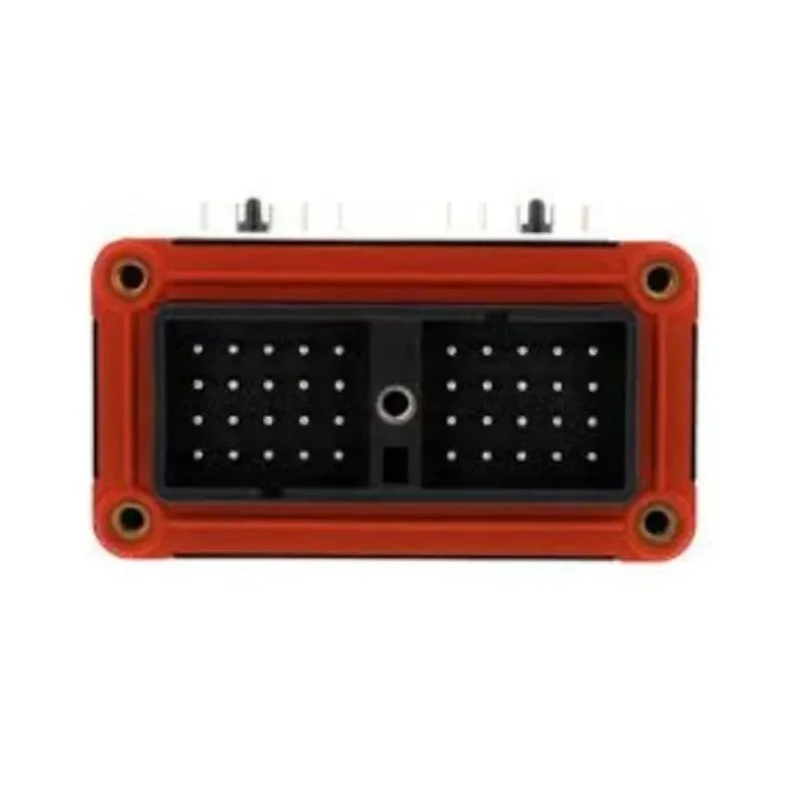

TE Connectivity DEUTSCH DRC Automotive Connector Male Black Screw Termination 40 Way 13A Current DRC13-40PA

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity DEUTSCH DRC Automotive Connector Male Black Screw Termination 40 Way 13A Current DRC13-40PA

Name: TE Connectivity DEUTSCH DRC Automotive Connector Male Black Screw Termination 40 Way 13A Current DRC13-40PA
Brand: TE Connectivity
SKU: 170161



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Diameter	1.59mm
Brand	TE Connectivity
Colour	Black
Current	13A
Height	50.42mm
Model	DRC13-40PA
Width	95.05mm
Gender	Male
Mount Type	Screw
Series	DEUTSCH DRC
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Automotive Header
Minimum Operating Temperature	-55°C
Number of Rows	4
Standards/Approvals	EU RoHS 2011/65/EU, EU ELV 2000/53/EC
Contact Plating	Tin Plated
Number of Contacts	40

Key Features

The connector is designed with 40 male contacts arranged in 4 rows.
Features black color housing with screw mounting type for secure attachment.
Operates reliably within temperature range -55°C to 125°C.
Supports solder termination and tin-plated contacts for durability.
Allows a maximum current rating of 13A for efficient electrical transmission.
Connector system is wire-to-board, ideal for cable harness integration.
Connector height and width measure 50.42 mm and 95.05 mm respectively.
Meets EU RoHS 2011/65/EU and EU ELV 2000/53/EC regulations for environmental compliance.

Product Description

TE Connectivity DRC13-40PA DEUTSCH DRC Automotive Connector is a high-quality male automotive header designed for reliable wire-to-board electrical connections. With 40 positions arranged in four rows, this black connector supports a current rating of 13 amps and is suitable for demanding automotive electrical systems requiring durable and secure connections.

The connector features solder termination with tin-plated contacts, optimized for robust electrical conductivity and long service life. The mounting type is screw, providing a secure fit into the system assembly. Constructed to operate over a broad temperature range from -55°C to 125°C, this connector withstands extreme automotive environments with ease.

The compact design with dimensions of 50.42 mm height and 95.05 mm width ensures compatibility with various automotive harness assemblies. The DEUTSCH DRC series is known for rugged rectangular connectors that support size 16 and 20 contacts, making them a trusted choice for wire-to-board applications in automotive manufacturing and repair.

The connector fully complies with EU RoHS 2011/65/EU and EU ELV 2000/53/EC standards, meeting environmental and safety requirements essential for modern automotive designs. The connector includes 40 male contacts for multi-circuit connectivity.

Termination type is solder for strong cable attachments. Screw mount type enhances mechanical stability in installations. Operates across a wide temperature range to suit harsh environments. Contact plating is tin, improving corrosion resistance and conductivity.

Black housing color provides standard automotive aesthetic and protection. Meets multiple European environmental standards for quality assurance.

This TE Connectivity DEUTSCH DRC Automotive Connector is ideal for use in industrial automotive manufacturing, vehicle electrical systems repair, and other electrical applications that demand durability and reliability. Explore EnvMart's collection of Automotive Connectors and components for all your electronic and electrical requirements.
