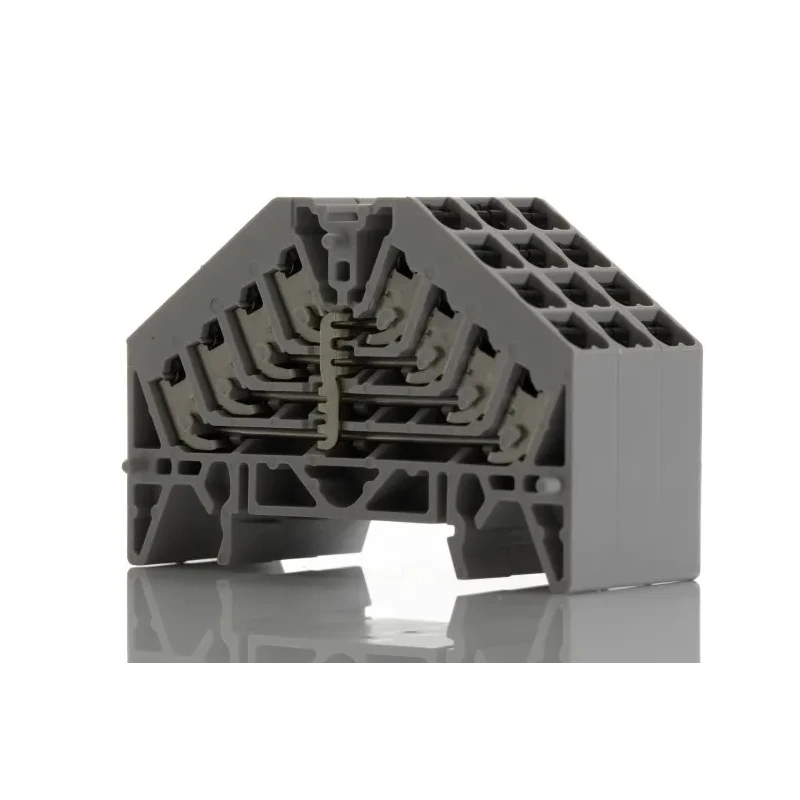

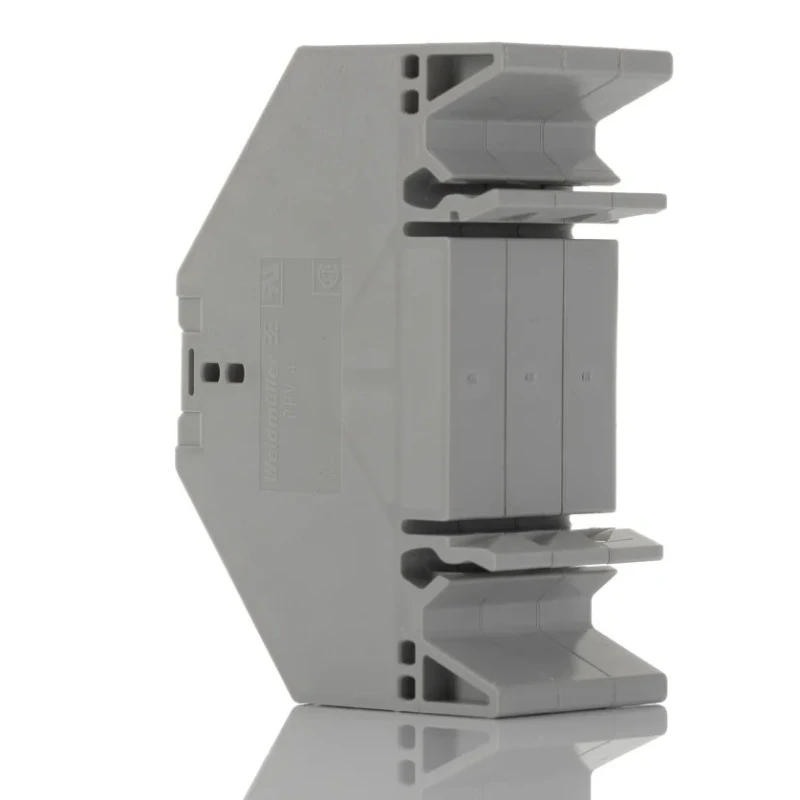

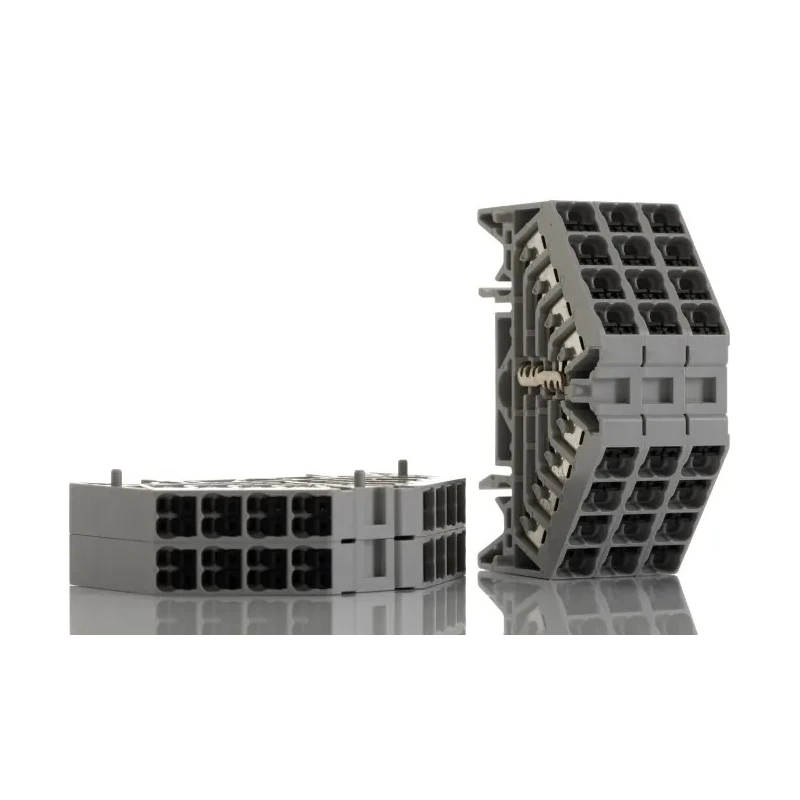

Weidmüller P Series 4-Level DIN Rail Terminal Block Grey 1.5mm² Push-in Termination 250V 17.5A 1173890000

Weidmüller 1173890000 P Series 4-Level DIN Rail Terminal Block is engineered for secure and efficient wiring in industrial electrical and electronic applications. With a voltage rating of 250V and a current capacity of 17.5A, it is ideal for low-power control and signal circuits. The terminal block features a compact design with dimensions of 70 mm length, 9.2 mm width, and 47 mm height, minimizing installation space requirements.

Constructed from durable polycarbonate (PC), the housing resists impact and abrasion, providing long-term reliability in tough industrial environments. This terminal block supports push-in termination technology that allows quick and safe wire insertion without needing specialized tools, improving productivity during installation and maintenance.

It accommodates wire sizes ranging from 24AWG to 16AWG (1.5 mm² cross-sectional area), and offers 4 wiring levels to optimize connection density on DIN rails. Operating temperature ranges from -25°C up to +70°C, making it suitable for harsh environmental conditions found in manufacturing, automation, and control systems.

The product is CE and RoHS compliant, ensuring safety and environmental standards are met. Additionally, its self-extinguishing property contributes to enhanced workplace safety by preventing flame propagation for 10 seconds or less in case of fire.

Applications include use in programmable logic controllers (PLCs), motor control circuits, sensor interfacing, and transmitter connections, typical in industrial automation, manufacturing, building management, and other electrical installation domains.

The compact grey terminal block measures 70mm (L) x 9.2mm (W) x 47mm (H). Features push-in termination for quick wire connection without tools. Supports wire sizes from AWG 24 to AWG 16 (1.5mm² cable cross-section). Rated for 250V and 17.5A current for reliable power and signal wiring.

Operating temperature range: -25°C to +70°C for harsh industrial conditions. Meets CE and RoHS certification standards for quality and environmental safety. Self-extinguishing within 10 seconds to enhance fire safety compliance.

Four wiring levels allow high density terminal connections on DIN rails. Explore more DIN Rail Terminal Blocks and power connector solutions in the Electronics & Electricals category on EnvMart to meet your industrial wiring needs.
