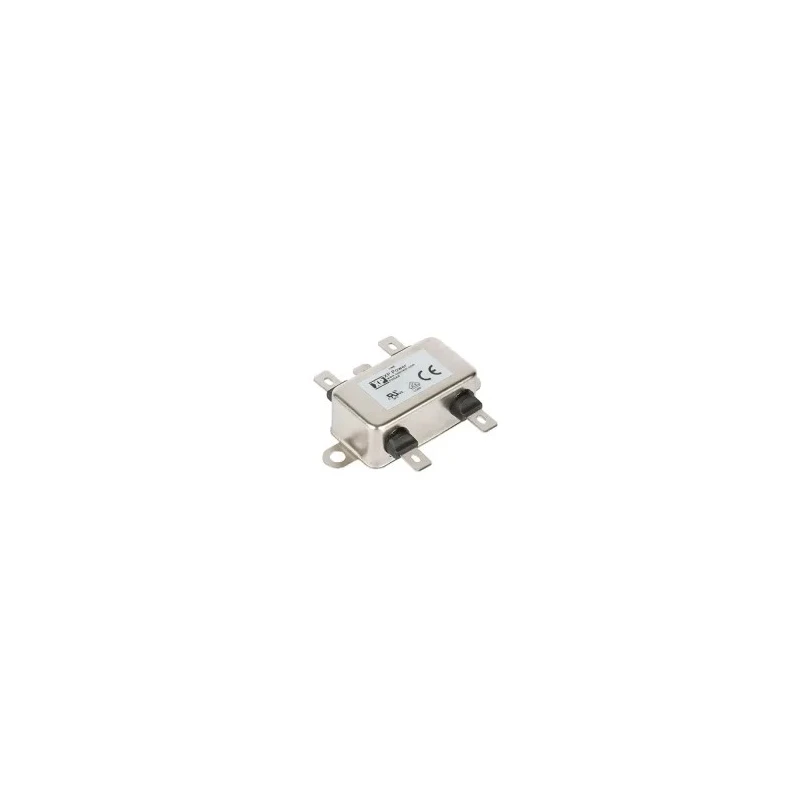

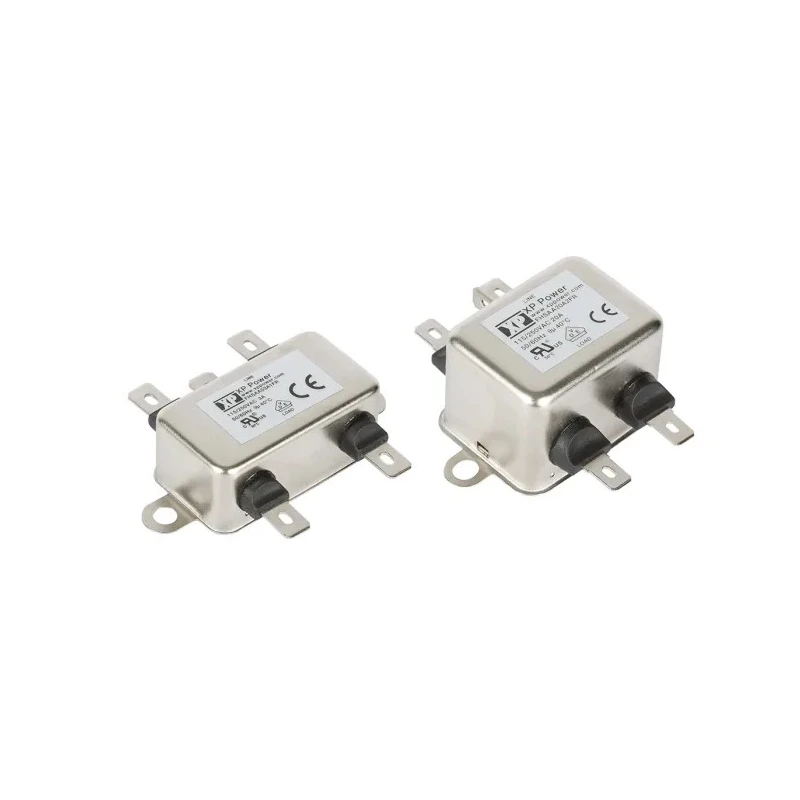

XP Power Chassis Mount EMI Filter 10A, 264V AC, 0-400 Hz, Quick Connect, Single Phase FHSA10A1FR FHSAA10A1FR
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Height | 17.5mm |
| Length | 44mm |
| Model | FHSAA10A1FR |
| Depth | 25.2mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 0, 400Hz |
| Series | FHSA |
| Maximum Operating Temperature | 110°C |
| Number Of Stages | 1 |
| Capacitance | 6.6μF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Leakage Current | 600μA |
| Maximum Voltage | 264V ac |
| Termination Style | Quick Connect |
Key Features
- The filter features a compact, single-stage design housed in a shielded metal body.
- Designed for single phase power supply applications with chassis mounting style.
- Includes bleed resistor for capacitor discharge when power is off.
- Operates reliably in temperatures from -40°C to +110°C, maintaining full power up to +50°C.
- Connections made via 6.3 x 0.8 mm Faston quick connect terminals.
- Suitable for Class I appliance uses to minimize radiated emissions near mains cable entry.
- Capacitance value is 6.6μF with leakage current up to 600μA.
- Backed by a 3-year warranty from XP Power.
Product Description
XP Power FHSAA10A1FR is a high-quality chassis mount EMI Filter designed for industrial and electronic equipment applications requiring effective suppression of electromagnetic interference. This single stage filter supports maximum current of 10A and maximum voltage of 264V AC, making it suitable for a wide range of power supplies operating at frequencies between 0 and 400 Hz.
The filter’s metal shielded body ensures optimal reduction of electromagnetic noise, while the compact chassis mount design allows easy integration close to mains cable entry points to minimize radiated emissions. Quick Connect 6.3 x 0.8 mm Faston terminals provide straightforward and secure installation.
Designed for Class I appliance compliance, this filter includes a bleed resistor to safely discharge filter capacitors upon power disconnection, enhancing user safety and equipment reliability. It operates effectively across a broad temperature range from -40°C to +110°C with full power operation capability up to +50°C, making it robust for demanding industrial and commercial environments.
The capacitance rating of 6.6μF and a low leakage current of 600μA contribute to stable filter performance. Measuring 44 mm in length, 17.5 mm in height, and 25.2 mm in depth, the filter occupies minimal space on mounting panels or equipment chassis.
XP Power offers a 3-year warranty on this product, attesting to its durability and build quality. It is manufactured in China and is ideal for applications in electronic devices, power line filtering, industrial machinery, and HVAC systems.
The filter features a compact, single-stage design housed in a shielded metal body. Designed for single phase power supply applications with chassis mounting style. Includes bleed resistor for capacitor discharge when power is off.
Operates reliably in temperatures from -40°C to +110°C, with full power operation to +50°C. Connections made via 6.3 x 0.8 mm Faston quick connect terminals. Suitable for Class I appliance uses to minimize radiated emissions near mains cable entry.
Capacitance value is 6.6μF with leakage current up to 600μA. Compact dimensions: length 44 mm, height 17.5 mm, depth 25.2 mm. Backed by a 3-year warranty from XP Power. Explore more filters and power line protection products on EnvMart for enhanced electromagnetic compatibility in your industrial, laboratory, and commercial equipment setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 10A.
The capacitance value of this model is 6.6μF.
It operates reliably in temperatures from -40°C to +110°C, maintaining full power operation up to +50°C.
This filter features a chassis mount design, allowing for easy integration into equipment.
The maximum voltage rating for this filter is 264V AC.
Connections are made via 6.3 x 0.8 mm Faston quick connect terminals.
The leakage current for this EMI filter is up to 600μA.
It is suitable for Class I appliance uses and is designed to minimize radiated emissions near mains cable entry.
The dimensions of this filter are 44 mm in length, 17.5 mm in height, and 25.2 mm in depth.
The operating frequency range for this EMI filter is between 0 and 400 Hz.
Yes, it includes a bleed resistor for capacitor discharge when power is off, enhancing user safety.
This EMI filter is backed by a 3-year warranty from XP Power.
