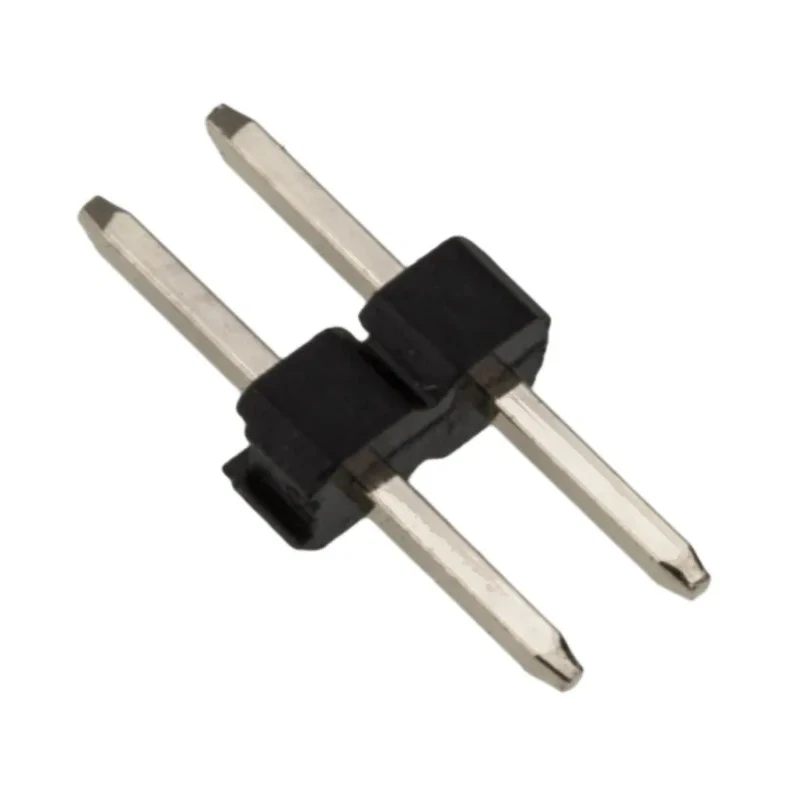

HARWIN M22 Series Straight Through Hole Pin Header 2 Contacts 2 mm Pitch 1 Row Unshrouded M22-2010205
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-2010205 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.4mm |
| Mating Pin Length | 3.5mm |
Key Features
- Constructed with high temperature nylon housing suitable for reflow soldering processes.
- Phosphor bronze contacts plated with gold for reliable conductivity and corrosion resistance.
- Male contact gender with mating pin length of 3.5 mm.
- Supports a maximum current of 1A with a pitch of 2 mm between pins.
- Designed for straight orientation and board-to-board connector system.
- Tail pin length of 3.4 mm, optimized for through-hole solder termination.
- Operating temperature range from -40°C up to 105°C.
- Housing can be cut to size thanks to castellations, caution needed when trimming tails.
Product Description
HARWIN M22-2010205 series comprises straight through-hole pin header connectors with 2 contacts, a 2 mm pitch, and one row, designed for unshrouded use. This pin header is engineered for robust board-to-board connections in demanding electronic applications.
The housing is molded from high-temperature nylon, allowing it to withstand standard reflow soldering processes without degradation. Its phosphor bronze contacts are gold-plated to ensure dependable electrical conductivity and resistance to corrosion, enhancing durability and signal integrity.
The connector supports a maximum current of 1 ampere and exhibits an operating temperature range from -40°C to 105°C, ensuring reliable functionality in varied environmental conditions. Its design features a male contact gender with a mating pin length of 3.5 mm and a tail pin length of 3.4 mm, optimized for secure through-hole solder mounting.
The housing includes precise castellations enabling users to cut the header to the required size for customization, with care advised to protect the tail pins during sizing. This flexibility makes the M22 series suitable for various custom electronics assembly needs.
Applications for the HARWIN M22-2010205 include embedded computing platforms, motherboards, industrial electronics, and consumer devices, providing a high-quality standard connector for electronic circuit integration.
High temperature thermoplastic housing enables compatibility with reflow soldering. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance. Unshrouded male pin header design suitable for straight board-to-board connection.
2 mm pitch and single row design optimize space and signal integrity. Wide temperature operation range supports industrial and commercial applications. Housing can be cut to desired length for flexible installation options.
Reliable current rating of 1 ampere for low power signal connections. Ensures robust and consistent electrical connections in electronics systems.
Explore the extensive range of PCB headers and connectors at EnvMart, designed to meet rigorous industrial and commercial demands for electronic assembly and connectivity solutions.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 1 ampere, suitable for low power signal connections.
The pin header features a pitch of 2 mm between the pins, designed for efficient board-to-board connections.
It is constructed with a nylon housing and phosphor bronze contacts that are gold-plated for reliable conductivity and corrosion resistance.
The HARWIN M22-2010205 operates within a temperature range of -40°C to 105°C, making it suitable for various environmental conditions.
The tail pin length is 3.4 mm, optimized for through-hole solder termination.
This model utilizes solder termination, suitable for secure mounting on printed circuit boards.
This pin header is designed as unshrouded, allowing for straight board-to-board connections.
The mating pin length is 3.5 mm, designed for compatibility with other connectors.
Yes, the housing includes castellations that allow it to be cut to the desired length, though caution is advised to protect the tail pins during trimming.
This model is suitable for applications including embedded computing platforms, motherboards, industrial electronics, and consumer devices.
The HARWIN M22-2010205 features 2 contacts in a single row configuration.
The HARWIN M22-2010205 is manufactured in India.
