HARWIN M22 Series Right Angle Through Hole Pin Header 16 Contact, 2 mm Pitch, 2 Row, Unshrouded M22-2040805

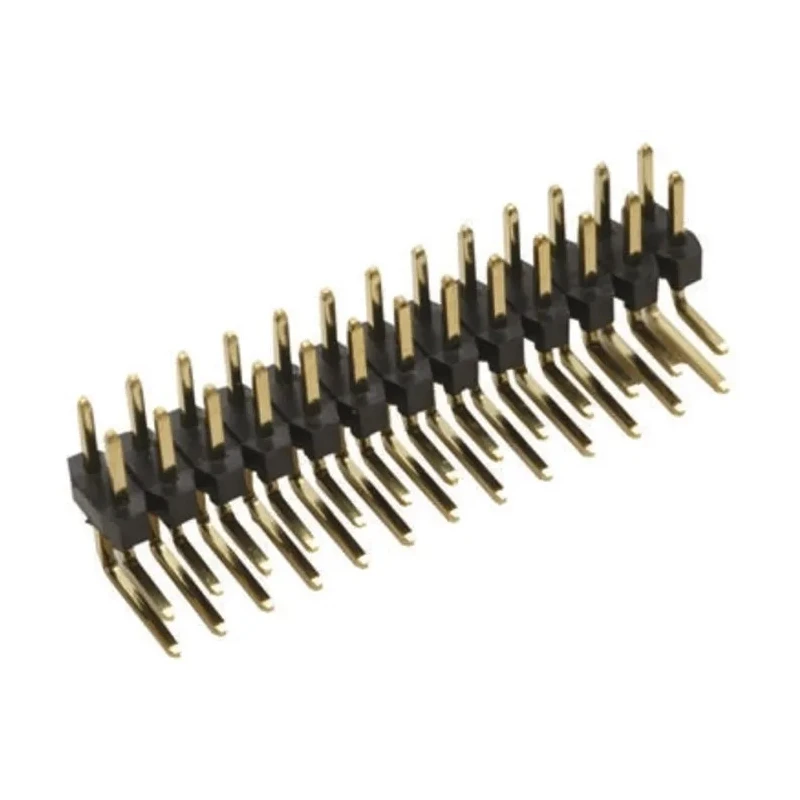

HARWIN M22-2040805 right angle through hole pin header connector features 16 male contacts arranged in 2 rows with a standard 2 mm pitch. This connector type is ideal for board-to-board interconnection in electronic assemblies, providing robust mechanical and electrical connections. The housing is made of high-temperature nylon, capable of withstanding reflow soldering processes used in manufacturing. The contacts are phosphor bronze plated with gold for increased reliability and signal integrity.

The tail pin length measures 3 mm enabling secure solder termination, while the mating pin length of 3.5 mm ensures strong engagement with compatible sockets. Designed for a maximum current of 1 amp and an operating temperature range from -40°C to 105°C, it is suitable for a wide range of industrial and electronic applications. The unshrouded design provides easy access to pins and simplifies troubleshooting and modification.

This M22 connector series supports right angle orientation, offering efficient PCB space utilization and connection flexibility. Typical applications include embedded PCs, motherboards, consumer electronics, communication devices, drives and controls, and industrial monitoring systems.

Constructed with phosphor bronze contacts plated in gold for reliable conductivity. Housing made from durable nylon material resistant to high temperatures. Designed for board-to-board connection with through hole mounting type.

Supports a current rating of 1 ampere for efficient signal transmission. Offers operating temperature range from -40°C to 105°C to ensure performance stability. Tail pin length of 3 mm and mating pin length of 3.5 mm for secure connections.

Right angle orientation provides flexibility in PCB design layouts. Unshrouded design allows easy access to each contact. Suitable for industrial, consumer electronics, communication, and embedded PC applications. Manufactured in Taiwan, Province Of China, ensuring quality standards.

This high-quality HARWIN M22 series connector is engineered to meet the demands of modern electronic manufacturing, providing durability and precise electrical connections. Explore more products in our PCB Headers category at EnvMart for your electronic component needs.
