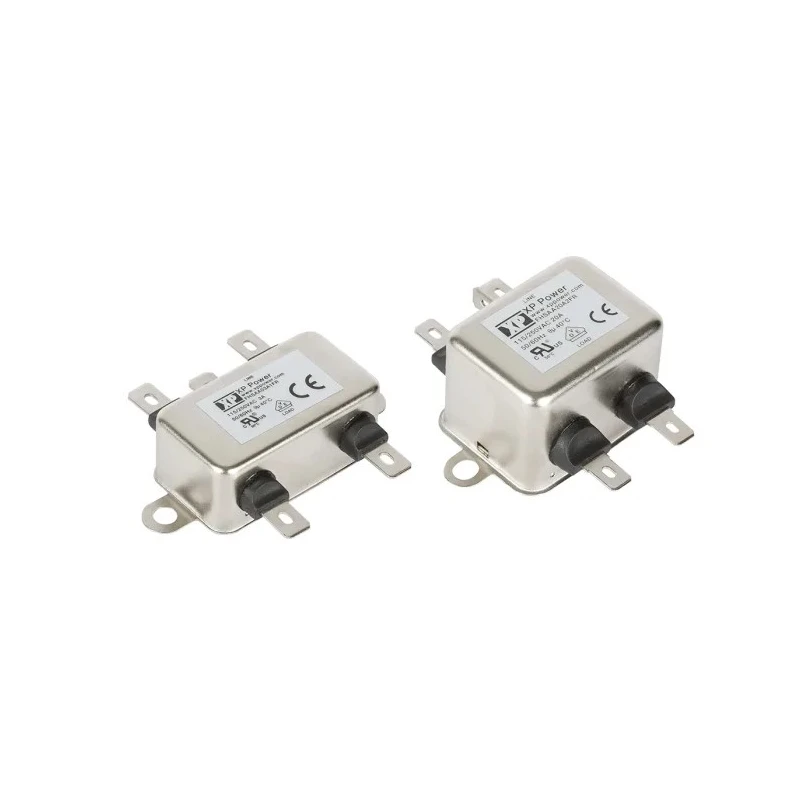

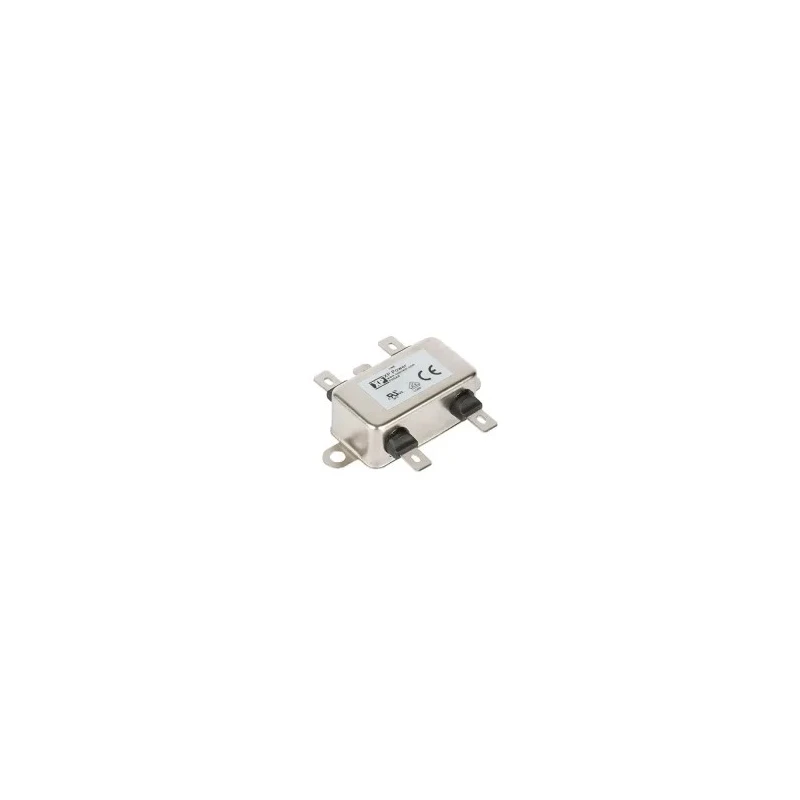

XP Power Chassis Mount EMI Filter 15A 264V AC 0Hz-400Hz Quick Connect 1 Phase FHSAA15A2FR
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Height | 30mm |
| Length | 43.5mm |
| Model | FHSAA15A2FR |
| Depth | 35mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 0, 400Hz |
| Series | FHSA |
| Maximum Operating Temperature | 110°C |
| Number Of Stages | 1 |
| Capacitance | 6.6μF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 15A |
| Number of Phases | 1 |
| Leakage Current | 600μA |
| Maximum Voltage | 264V ac |
| Termination Style | Quick Connect |
Key Features
- Compact chassis mounting metal case suitable for ITE applications.
- Single stage design providing effective EMI filtering at 0Hz to 400Hz frequency range.
- Faston terminals 6.3 x 0.8mm for reliable quick connect input and output connections.
- Wide operating temperature range from -40°C to 110°C with full power operation up to 50°C.
- Features a bleed resistor for safe capacitor discharge when power is disconnected.
- Shielded metal body minimizes radiated emissions within equipment.
- Suitable for Class I appliances requiring EMI filtering.
- Leakage current of 600μA ensures low loss and safe operation.
Product Description
XP Power FHSAA15A2FR chassis mount EMI filter is a reliable, single stage EMI filter designed for industrial electronics and power supply applications. Rated for a maximum current of 15A and voltage of 264V AC, this filter operates effectively across a frequency range of 0 to 400Hz. Its compact metal chassis housing ensures ruggedness and provides shielding to reduce electromagnetic interference within electronic equipment. The filter features quick connect 6.3 x 0.8mm Faston terminals for easy installation in Class I appliance systems.
This EMI filter incorporates a bleed resistor, which safely discharges filter capacitors upon power removal, enhancing safety during maintenance. The wide operational temperature range from -40°C to 110°C allows use in diverse industrial and commercial environments, maintaining full power capacity up to 50°C ambient. The low leakage current of 600μA helps reduce energy losses and ensures compliance with safety standards.
Measuring 43.5mm in length, 30mm in height, and 35mm in depth, this compact EMI filter is well suited for integration close to the mains cable entry point to minimize radiated emissions. It supports one phase and a single stage of filtering within Power Line Filters.
Typical applications include industrial machinery, laboratory equipment, commercial electronics, and HVAC systems where EMI suppression is critical. The rugged chassis mount format facilitates easy and secure installation in electrical panels and enclosures.
Manufactured in China and supplied new, the FHSAA15A2FR offers durable performance with a 3-year warranty from the brand XP Power, recognized for quality power components and EMI suppression solutions in industrial electronics.
Compact chassis mount metal case suitable for ITE and industrial applications. Single stage filter with shielded metal body to reduce EMI effectively. Quick connect 6.3 x 0.8mm terminals for fast installation. Wide temperature range from -40°C to +110°C for robust operation.
Leakage current of 600μA for safe and efficient operation. Includes bleed resistor for safe capacitor discharge on power off. Compact dimensions: 43.5mm x 30mm x 35mm. Designed for 15A maximum current and 264V AC maximum voltage.
Suitable for Class I appliances and equipment requiring EMI filtration. Backed by 3-year warranty from XP Power. Explore XP Power filters and related electronic components on EnvMart for your commercial and industrial EMI suppression needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 15A.
It operates effectively across a frequency range of 0 to 400Hz.
The dimensions are 43.5mm in length, 30mm in height, and 35mm in depth.
This filter is rated for a maximum voltage of 264V AC.
It features quick connect 6.3 x 0.8mm Faston terminals for reliable connections.
The leakage current is 600μA, ensuring low loss and safe operation.
The operating temperature range is from -40°C to 110°C, with full power operation up to 50°C.
Yes, it is suitable for Class I appliances requiring EMI filtering.
It includes a bleed resistor that safely discharges the filter capacitors when power is disconnected.
This model provides a single stage of filtering.
Typical applications include industrial machinery, laboratory equipment, commercial electronics, and HVAC systems where EMI suppression is critical.
This filter is manufactured in China.
