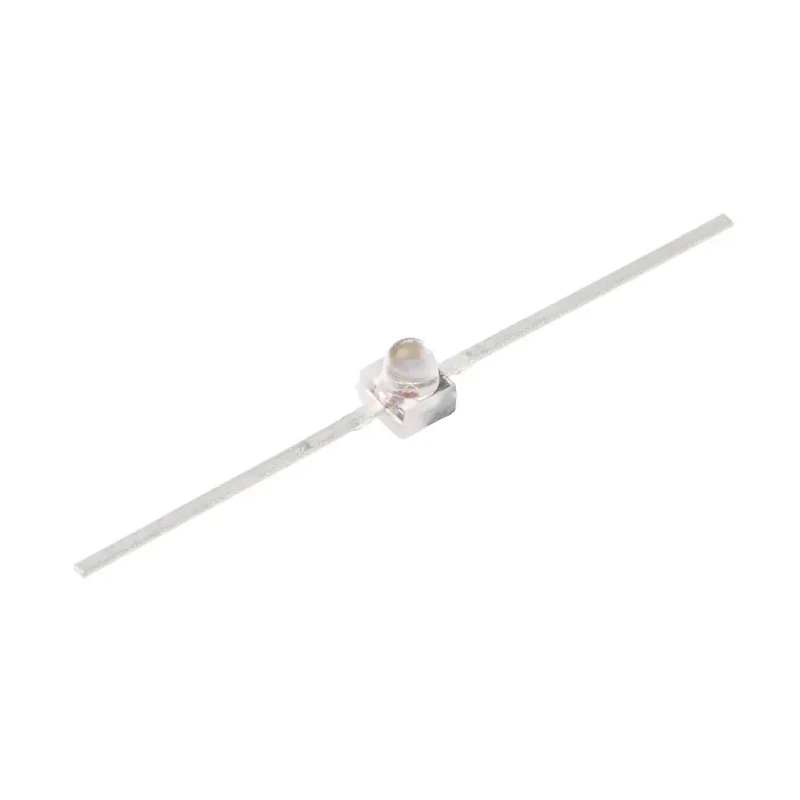

Broadcom 1.9 V Red LED Subminiature Through Hole HLMP-Q106

Broadcom HLMP-Q106 is a high performance 1.9 V red LED in a subminiature dome package engineered for through-hole mounting. It features a clear, untinted, and non-diffused lens that provides a high luminous intensity within a narrow 15° radiation pattern. The LED has a maximum forward current rating of 300 mA and delivers 100 mcd typical luminous intensity with a dominant wavelength of 644 nm, making it suitable for applications requiring focused, high brightness red light.

The compact lens dimensions of 2.21 x 2.34 x 2.92 mm and its axial lead configuration allow easy PCB integration for electronic assemblies where space is limited. This LED is part of the HLMP series from Avago Technologies, known for high-quality and reliable light-emitting diodes designed for industrial and commercial use.

The HLMP-Q106 LED complies with RoHS standards, ensuring environmental safety and compatibility with modern manufacturing regulations. It is supplied in tape and reel packaging to facilitate automated placement on assembly lines, improving production efficiency.

Typical industries using this LED include electronics manufacturing, instrumentation, automotive signaling, and consumer electronics requiring compact, bright indicator lights with precise color output. Its narrow viewing angle supports applications needing directional illumination and controlled light spread.

This LED offers high brightness red light output with a 15° viewing angle. It supports a maximum forward current of 300 mA and forward voltage of 1.9 V. The dome-shaped, untinted lens ensures focused light without diffusion.

Compact dimensions allow use in space-limited electronic assemblies. RoHS compliant and supplied in tape and reel packaging for manufacturing efficiency. Suitable for industrial, automotive, and consumer electronic indicator applications.
