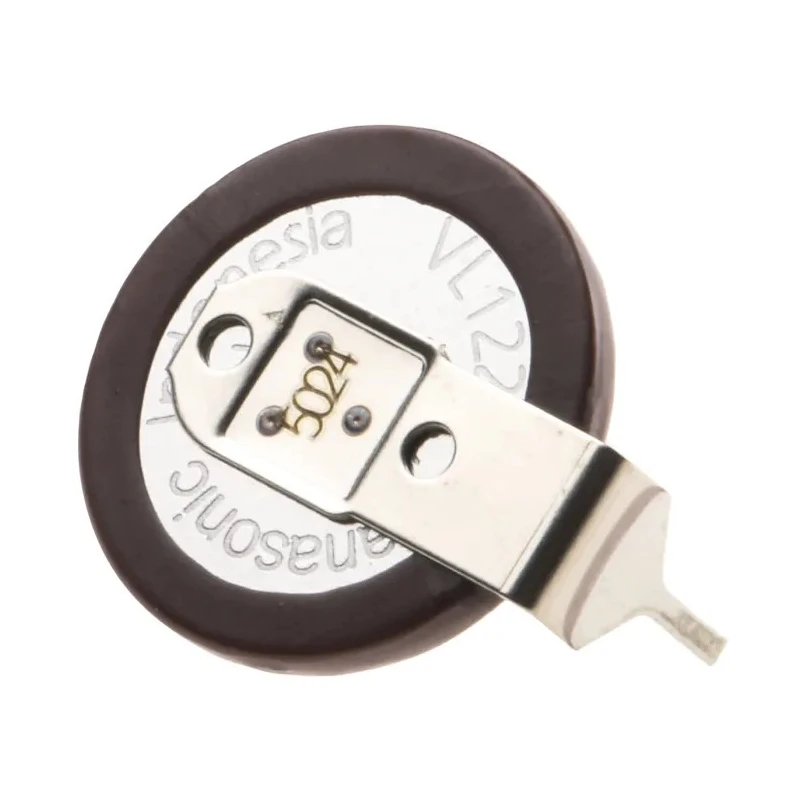

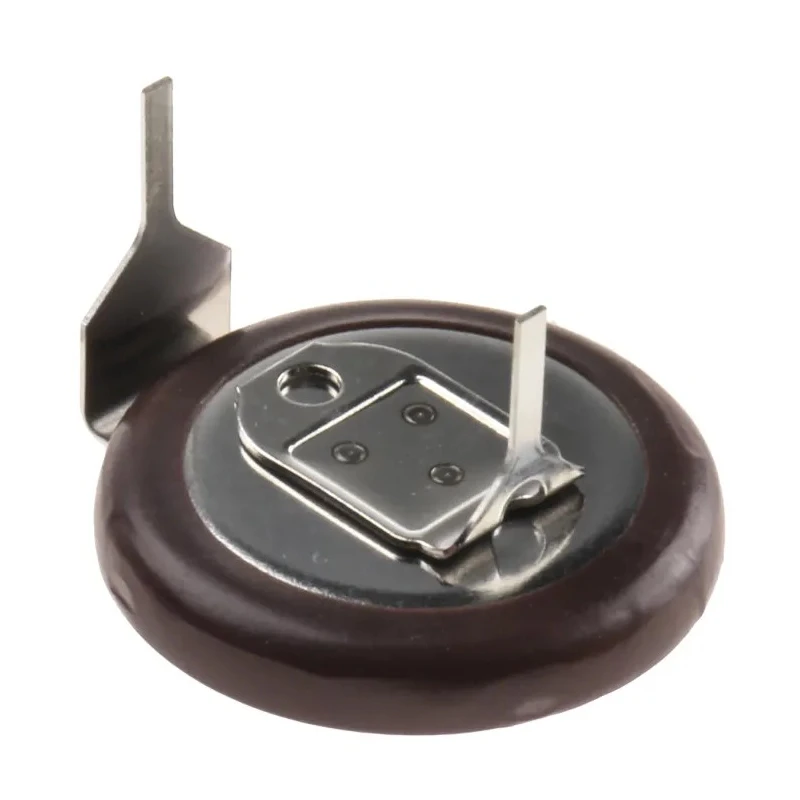

Panasonic 3 V Lithium Vanadium Pentoxide Button Rechargeable Battery 7 mAh VL-1220/HFN

Name: Panasonic 3 V Lithium Vanadium Pentoxide Button Rechargeable Battery 7 mAh VL-1220/HFN
Brand: Panasonic
SKU: 160671



Category Rechargeable Button Battery Brand Panasonic Condition New

Specifications

Country of Origin	India
Diameter	12.5mm
Brand	Panasonic
Height	2mm
Model	VL-1220/HFN
Battery Capacity	7mAh
Termination Type	PCB
Maximum Operating Temperature	60°C
Mounting Orientation	Horizontal
Minimum Operating Temperature	-20°C
Chemistry	Lithium Vanadium Pentoxide
Nominal Voltage	3V
Panasonic 3 V Lithium Vanadium Pentoxide Button Rechargeable Battery, 7 mAhBrand	Panasonic

Key Features

Employs environmentally friendly Lithium Vanadium Pentoxide chemistry.
Features a nominal voltage of 3 V ensuring stable power supply.
Capable of approximately 1000 charge/discharge cycles at 10% to normal capacity.
Equipped with PCB pin termination for secure mounting.
Operates reliably across a wide temperature range from -20°C to 60°C.
Offers very low self-discharge rate, approximately 2% per year.
Designed with a compact diameter of 12.5 mm and height of 2 mm.
Ideal for memory backup in RTC circuits, mobile phones, PDAs, office equipment, and handheld devices.

Product Description

Panasonic VL-1220/HFN is a 3 V Lithium Vanadium Pentoxide button rechargeable battery designed for industrial and consumer electronics requiring stable voltage and long service life. This coin cell battery features an environmentally friendly chemistry which ensures low discharge rate and excellent overcharge and over-discharge protection, making it a reliable power source for critical applications.

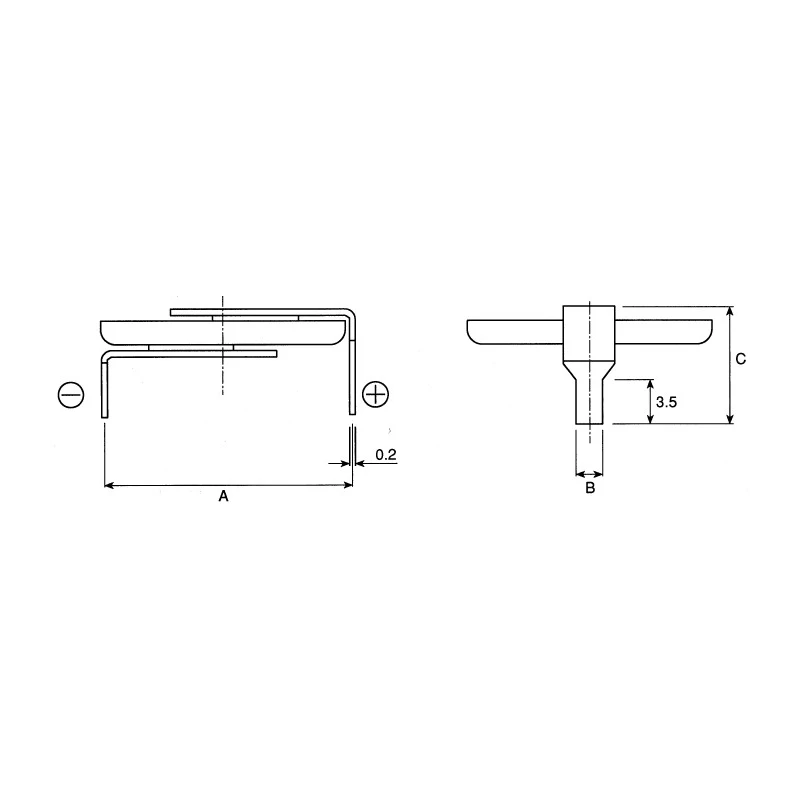

Measuring 12.5 mm in diameter and 2 mm in height, it mounts horizontally with PCB pin termination, allowing compact and secure integration on circuit boards. The battery supports a broad operating temperature range from -20°C to 60°C, suitable for rigorous environmental conditions.

With an approximate 1000 charge/discharge cycles at 10% discharge, this Panasonic VL series battery is well suited for memory backup in RTC circuits, desktop computers, mobile phones, handheld devices, PDAs, fax machines, and various office equipment. Its minimal self-discharge rate of around 2% annually enhances the battery life and reduces maintenance frequency.

The lithium vanadium pentoxide chemistry prioritizes voltage stability rather than capacity, providing an average discharge voltage of 2.85 V and a charge voltage range of 3.25 to 3.55 V. This chemistry also ensures safety through its ability to handle overcharge and over-discharge scenarios effectively.

Employs Lithium Vanadium Pentoxide chemistry for environmental friendliness and reliability. Features stable nominal voltage of 3 V for consistent power delivery. Supports approximately 1000 charge/discharge cycles at partial discharge.

Designed with PCB pin for horizontal mounting. Operative between -20°C and 60°C for diverse environmental conditions. Low self-discharge rate approximating 2% per year prolongs battery life. Compact dimensions of 12.5 mm diameter and 2 mm height optimize use of PCB space.

Applications include RTC memory backup, mobile devices, office and handheld equipment. Stable voltage output critical for sensitive electronic devices. Explore EnvMart's range of Panasonic VL Series rechargeable batteries for reliable, efficient power solutions in electronics manufacturing and repair industries.
