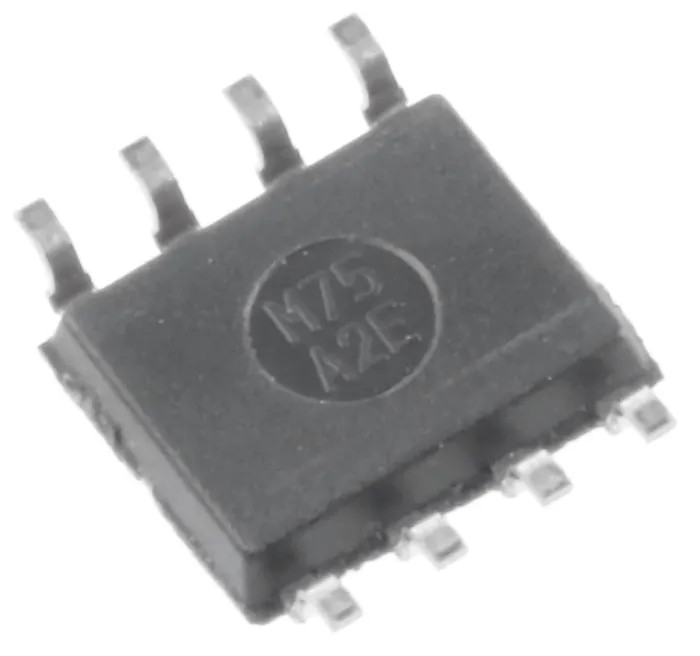

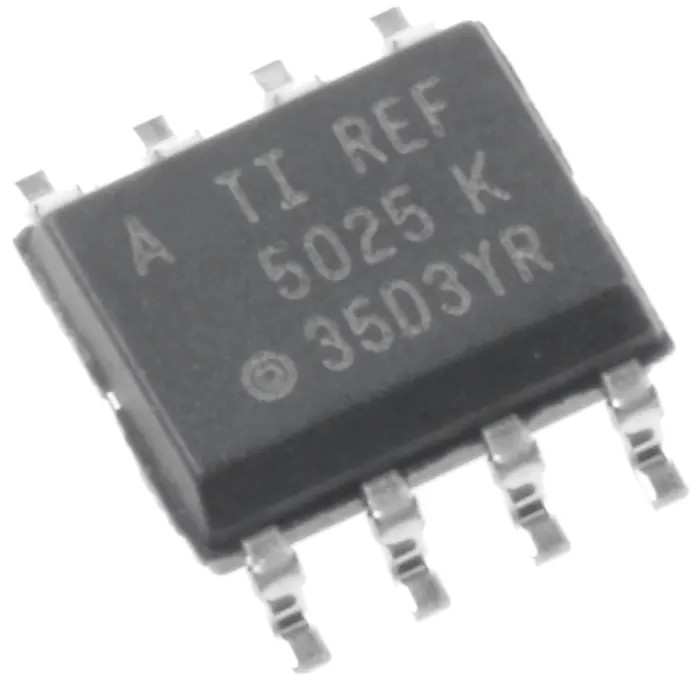

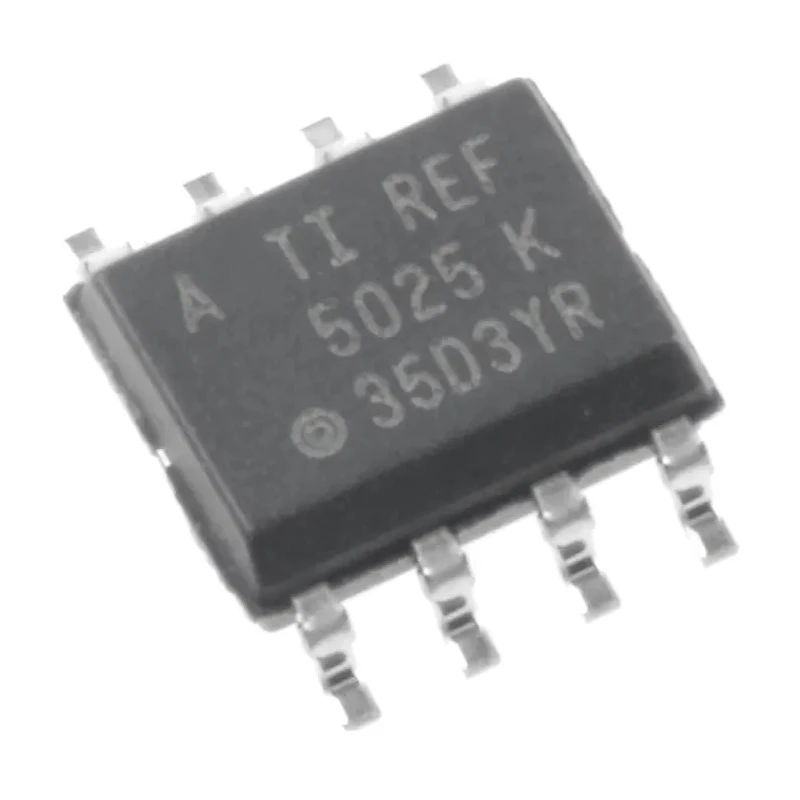

Texas Instruments Fixed Series Voltage Reference ±0.05 % Accuracy 2.5V 8-Pin SOIC REF5025AID
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.5mm |
| Length | 5mm |
| Model | REF5025AID |
| Mount Type | Surface |
| Output type | Fixed |
| Series | REF5025 |
| Temperature Coefficient | 3 ppm/°C |
| Output Current | 10mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 50 ppm/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 18V |
| Line Regulation | 1 ppm/V |
| Minimum Input Voltage | 2.7V |
| Pin Count | 8 |
| Reference Voltage | 2.5V |
| Initial Accuracy | ±0.05 % |
Key Features
- The reference voltage is fixed at 2.5 volts for stable and accurate voltage output.
- Initial accuracy is ±0.05 %, ensuring high precision in voltage regulation.
- Temperature coefficient is 3 ppm/°C, maintaining performance across a wide temperature range.
- Surface mount SOIC package with 8 pins enables compact PCB designs.
- Maximum input voltage is 18 volts with a minimum input of 2.7 volts for reliable operation.
- Maximum operating temperature reaches up to 125°C for industrial and commercial applications.
- Output current capability is 10mA suitable for various power management requirements.
- Line regulation of 1 ppm/V and load regulation of 50 ppm/mA ensure stable voltage output under varying load conditions.
Product Description
Texas Instruments REF5025AID is a fixed series voltage reference designed for high-precision power management applications. This 8-pin SOIC surface mount device offers a stable 2.5V reference voltage with an exceptional initial accuracy of ±0.05 % and a low temperature coefficient of 3 ppm/°C, making it ideal for industrial, laboratory, and commercial electronics requiring precise voltage regulation.
The REF5025AID supports a maximum input voltage of 18V and operates reliably over a wide temperature range from -40°C to 125°C. Its 10mA output current rating allows it to supply stable voltage to a variety of downstream circuitry in electronic systems.
This voltage reference IC features excellent line regulation of 1 ppm/V and load regulation of 50 ppm/mA, providing consistent output voltage despite changes in input voltage or load conditions. Its compact 8-pin SOIC package contributes to space-efficient PCB layouts in complex systems.
Applications include power management ICs, instrumentation, data acquisition systems, and other electronic devices requiring dependable voltage references. The robust industrial temperature range and surface mount topology make the REF5025AID suitable for use in automotive, instrumentation, laboratory, and manufacturing environments.
The reference voltage is fixed at precisely 2.5 volts for accurate performance. Initial accuracy is within ±0.05 %, supporting precision electronics. Temperature coefficient ensures minimal drift across temperature variations.
Surface mount 8-pin SOIC packaging facilitates automated assembly. Wide operating temperature range allows use in harsh environmental conditions. High max input voltage and regulated output current suit advanced applications.
Excellent line and load regulation maintain voltage stability. Explore EnvMart's catalog for additional Texas Instruments Voltage Reference ICs and other precision power management components for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reference voltage of this model is fixed at 2.5 volts, providing stable and accurate voltage output.
It has an initial accuracy of ±0.05 %, ensuring high precision in voltage regulation.
The temperature coefficient is 3 ppm/°C, which helps maintain performance across a wide temperature range.
The maximum input voltage is 18 volts, with a minimum input voltage of 2.7 volts for reliable operation.
It has an output current capability of 10mA, suitable for various power management requirements.
The line regulation is 1 ppm/V and the load regulation is 50 ppm/mA, ensuring stable voltage output under varying load conditions.
This model operates reliably over a temperature range from -40°C to 125°C, making it suitable for industrial applications.
It comes in a surface mount SOIC package with 8 pins, facilitating compact PCB designs.
This voltage reference is suitable for power management ICs, instrumentation, data acquisition systems, and other electronic devices requiring dependable voltage references.
The dimensions of this model are 1.5mm in height and 5mm in length.
The topology of this voltage reference is series, which is typical for fixed voltage references.
The country of origin for this model is India.
