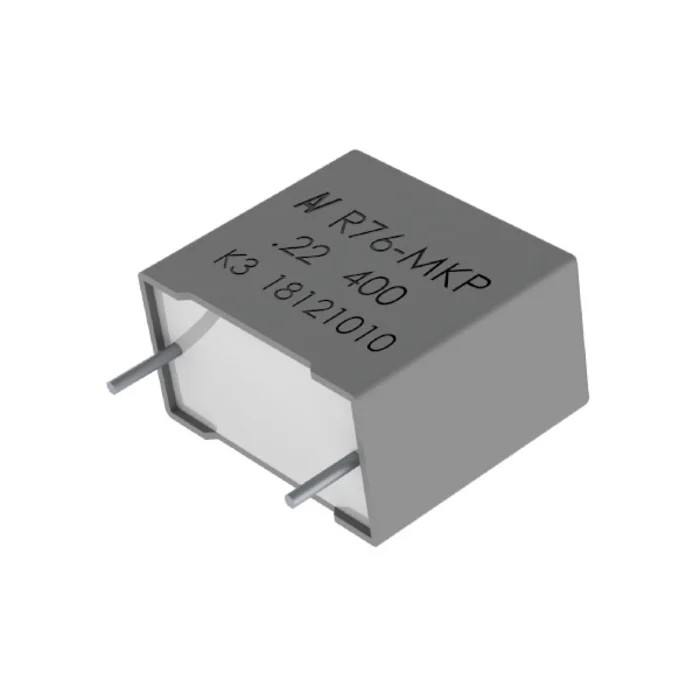

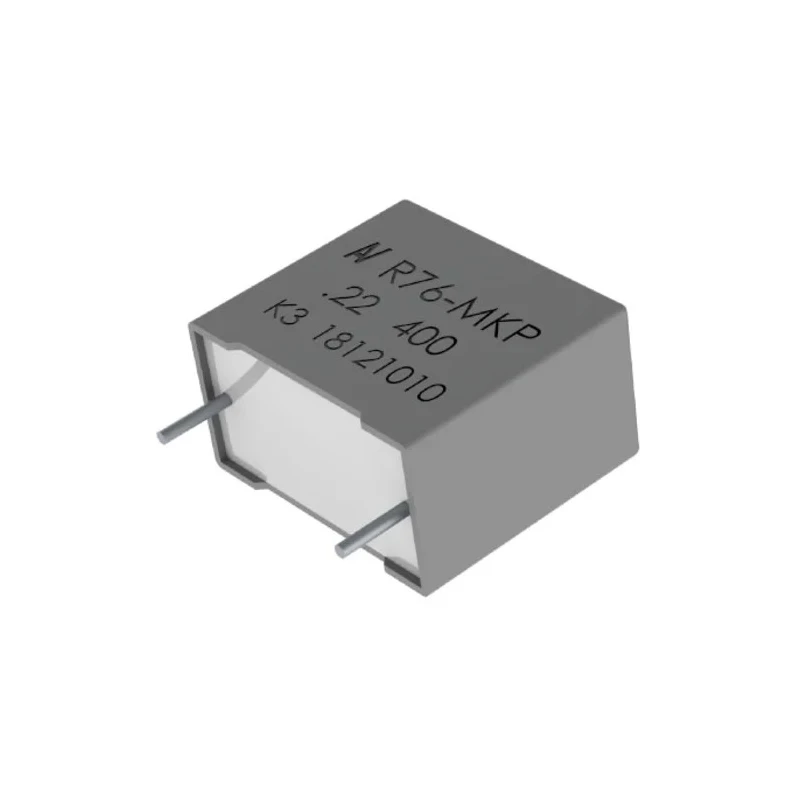

KEMET R76_125C Film Capacitor, ±5% Tolerance, 560 nF Capacitance, 1 kV DC 600 V AC Rated Voltage, Through R76QR356050H3J
Specifications
| Country of Origin | China |
|---|---|
| Capacitance Range | 100 pF - 15 μF |
| Brand | KEMET |
| Height | 37mm |
| Length | 32mm |
| Model | R76QR356050H3J |
| Packaging | Tray |
| Width | 22mm |
| Mount Type | Through Hole |
| Series | R76_125C |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 560nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Dissipation Factor | 0.06% |
| Lead Length | 25mm |
| Standards/Approvals | IEC 60286-2, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 600V ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 27.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±2.5%, ±5%, ±10% |
| Lead Spacing | 10 mm - 37.5 mm |
| Equivalent Series Resistance ESR | 11mΩ |
Key Features
- Constructed with polypropylene film and double metallized polyester film electrodes.
- Encapsulated in a solvent-resistant, self-extinguishing plastic case with thermosetting resin.
- Operating temperature range from -55°C to 125°C suitable for harsh environments.
- Lead pitch of 27.5 mm and pin diameter of 0.8 mm, with solder terminal type.
- Low dissipation factor of 0.06% and ESR of 11 mΩ enhances performance stability.
- Complies with automotive standard AEC-Q200 and IEC 60286-2, RoHS certified.
- Typical uses include resonant circuits, snubbers, SCR and IGBT commutation circuits, MOSFET applications, and high voltage/high current environments.
- Available in tray packaging and manufactured in China.
Product Description
KEMET R76QR356050H3J is a high-performance film capacitor from the R76_125C series designed to operate with a capacitance of 560 nF and voltage ratings of 1 kV DC and 600 V AC. It features a through-hole mount type, making it suitable for robust printed circuit board assembly.
The capacitor is crafted from polypropylene film combined with double metallized polyester film electrodes. Radial leads are electrically welded to the metal layer and encapsulated in a flame-retardant, solvent-resistant plastic case using thermosetting resin, ensuring durability and safety in industrial and automotive applications.
It operates reliably in extreme temperature conditions ranging from -55°C to 125°C, making it ideal for harsh industrial environments. The capacitor has a lead pitch of 27.5 mm and a lead diameter of 0.8 mm, with solder terminals for secure connections.
Electrical characteristics include a tolerance of ±5%, a low dissipation factor of 0.06%, and a low equivalent series resistance (ESR) of 11 mΩ, which provides stable performance in high-frequency and high-current circuits.
Compliant with the automotive standard AEC-Q200 and meeting IEC 60286-2 and RoHS directives, this capacitor is designed for applications such as resonant circuits, high-frequency high-current snubbers, silicon-controlled rectifier (SCR) and IGBT commutation circuits, and SiC MOSFET commutation circuits. It is also suitable for environments requiring high voltage and ambient temperature resistance.
The product is supplied in tray packaging for easy handling and is made in China. Constructed with polypropylene and double metallized polyester film electrodes for durability. Encapsulated in a self-extinguishing, solvent-resistant plastic case with thermosetting resin.
Operating temperature range from -55°C to 125°C for harsh environment use. Lead pitch of 27.5 mm and pin diameter of 0.8 mm, designed for through-hole mounting. Low dissipation factor (0.06%) and ESR (11 mΩ) for stable high-frequency performance.
Meets automotive standards AEC-Q200 and IEC 60286-2, RoHS compliant. Ideal for resonant circuits, snubbers, SCR, IGBT, and MOSFET commutation circuits. Supplied in tray packaging and manufactured in China.
Explore more Film Capacitors and high-quality electronic components in the Electronics Components category at EnvMart to suit various industrial, automotive, and commercial applications.
