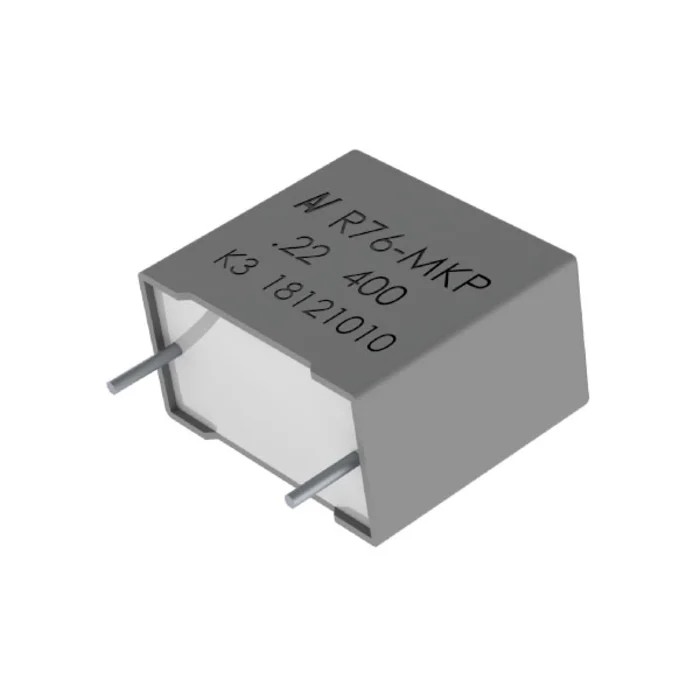

KEMET Film Capacitor , ±5 % Tolerance, 150 nF Capacitance, 400 V DC, 250 V AC, Through Hole Mount R76MI315050H7J
Specifications
| Country of Origin | China |
|---|---|
| Capacitance Range | 100 pF - 15 μF |
| Brand | KEMET |
| Height | 12mm |
| Length | 18mm |
| Model | R76MI315050H7J |
| Packaging | Bag |
| Width | 13mm |
| Mount Type | Through Hole |
| Series | R76_125C |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 150nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Dissipation Factor | 0.06% |
| Lead Length | 25mm |
| Standards/Approvals | IEC 60286-2, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±2.5%, ±5%, ±10% |
| Lead Spacing | 10 mm - 37.5 mm |
| Equivalent Series Resistance ESR | 11mΩ |
Key Features
- This film capacitor has a capacitance tolerance of ±5 percent ensuring precision performance.
- Rated for 400 V DC and 250 V AC voltage applications providing versatility.
- Constructed with polypropylene and double metallized polyester film for durability.
- Features 15 mm lead pitch and solder terminal type for secure connections.
- Operating temperature range from -55°C to 125°C suitable for harsh environments.
- Complies with automotive standard AEC-Q200 and IEC 60286-2 with RoHS certification.
- Encapsulated in a self-extinguishing solvent resistant plastic case for safety.
- Applications include resonant circuits, snubber, and high frequency power electronics.
Product Description
KEMET R76MI315050H7J Film Capacitor is a through-hole mounted Film Capacitor offering 150 nF capacitance with ±5 % tolerance. It is rated for 400 V DC and 250 V AC, making it suitable for various electronic and power applications. Constructed using polypropylene and double metallized polyester film electrodes with radial leads, it ensures high reliability and excellent electrical performance.
The capacitor features a 15 mm lead pitch and solderable terminals with 25 mm lead length. It is designed for high-frequency, high-current circuits including resonant circuits, silicon-controlled rectifier commutation, and IGBT and MOSFET power modules. The device operates reliably within a temperature range from -55°C to 125°C, meeting stringent automotive standard AEC-Q200 requirements and is compliant with IEC 60286-2 and RoHS directives.
Its encapsulated plastic case is self-extinguishing and solvent resistant, providing increased safety and durability in industrial and commercial electronic assemblies. The capacitor’s low dissipation factor (0.06 %) and low equivalent series resistance (11 mΩ) contribute to energy efficiency and thermal stability in demanding environments.
This capacitor provides ±5 % capacitance tolerance for precise electrical characteristics. Rated voltage levels of 400 V DC and 250 V AC allow compatibility with various power electronics designs. The robust design supports stable operation in automotive, industrial electronics, and high-frequency applications.
Compliance with AEC-Q200 ensures reliability in harsh automotive environments. Plastic encapsulation offers protection against solvents and flame resistance. Lead spacing of 15 mm fits standard through-hole mounting circuits.
Typical applications include resonant circuits, snubber circuits, and semiconductors switching circuits like SCR and SiC MOSFETs.
This capacitor is an excellent component choice for engineers seeking reliable, high-performance passive components in the electronics and power connector sectors. Browse EnvMart’s Electronics Components category for more capacitors and related components to meet your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 150 nF with a tolerance of ±5%.
It is rated for 400 V DC and 250 V AC applications, providing versatility for various electronic designs.
The operating temperature range is from -55°C to 125°C, making it suitable for harsh environments.
This capacitor features a through-hole mount type with a lead pitch of 15 mm.
The lead length is 25 mm and the lead diameter is 0.8 mm.
It complies with automotive standard AEC-Q200 and IEC 60286-2, and is RoHS certified.
The equivalent series resistance (ESR) is 11 mΩ, contributing to its energy efficiency.
The dissipation factor is 0.06%, which supports thermal stability in demanding environments.
Typical applications include resonant circuits, snubber circuits, and semiconductor switching circuits.
It is constructed with polypropylene and double metallized polyester film electrodes.
The dimensions are 18 mm in length, 13 mm in width, and 12 mm in height.
This model features solder terminals for secure connections.
