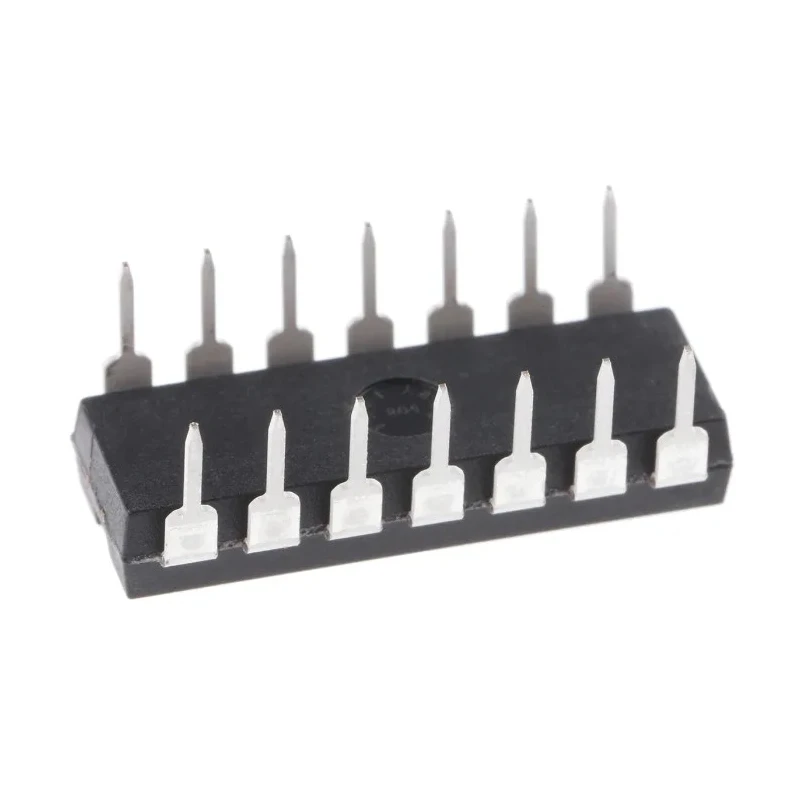

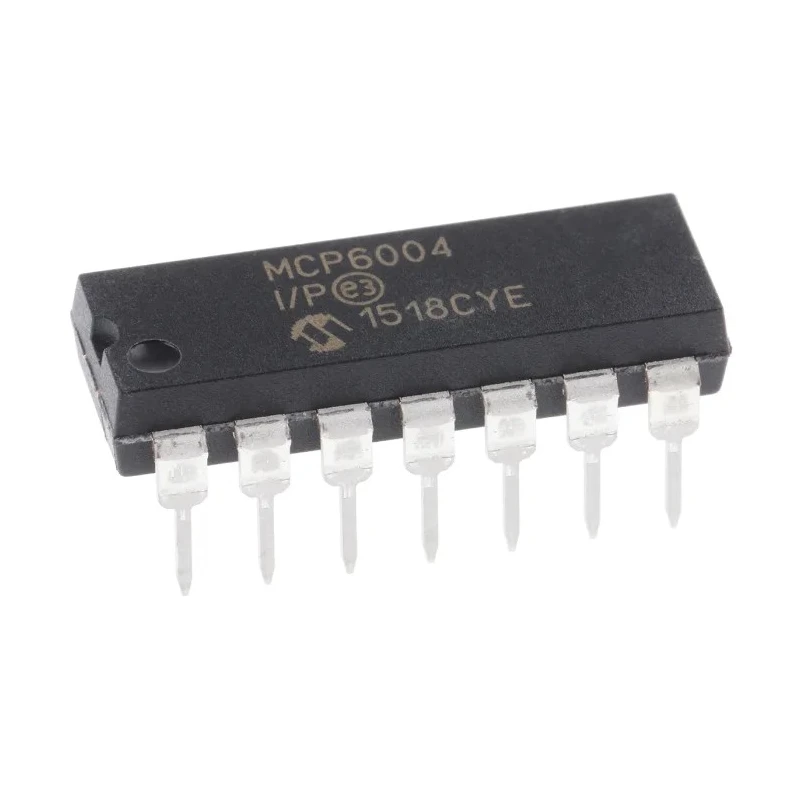

Microchip Operational Amplifier 1 MHz 14-Pin PDIP 3-6 V MCP6004-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | MCP6004-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP6004 |
| Output Current | 23mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 19 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
| MCP6004-E/P Microchip, Op Amp, RRIO, 1MHz, 1.8 → 6 V, 14-Pin PDIPBrand | Microchip |
Key Features
- The device features 4 operational amplifier channels in a single package.
- It is designed to operate from a minimum supply voltage of 3 volts to a maximum of 6 volts.
- The input bias current is ultra-low at 19 pA to enable precision amplification.
- The maximum operating temperature range extends up to 85°C, suitable for industrial applications.
- The input offset voltage is 4.5 mV with an exceptionally low input offset current of 1 pA.
- The slew rate of the amplifier is 0.6 V/µs ensuring adequate response speed.
- Output current capability is up to 23 mA for driving loads efficiently.
Product Description
Microchip MCP6004-I/P is a quad operational amplifier designed for a variety of precision analog signal processing applications. With a gain bandwidth product of 1 MHz, this device balances speed and accuracy, making it suitable for industrial, laboratory, audio, and instrumentation use cases.
Encased in a 14-pin PDIP package, the MCP6004-I/P supports through-hole mounting widely favored in prototyping and educational settings. It operates reliably within a supply voltage range from 3 V to 6 V, accommodating low-voltage circuits.
The operational amplifier features a very low input bias current of 19 pA and an input offset current of just 1 pA, critical for precision measurement and low noise conditions. The input offset voltage is maintained at 4.5 mV, ensuring stable signal amplification with minimal drift.
The maximum operating temperature is rated at 85°C, permitting deployment in harsh industrial environments. It also offers an output current capability of 23 mA, suitable for moderate load driving.
Its slew rate of 0.6 V/µs provides good response times for signals within the MHz range, making it useful in audio and general-purpose amplification tasks. The MCP6004 series complies with RoHS standards, affirming its environmentally friendly design.
Quad operational amplifier with 4 channels in one package. Through hole mount with 14-pin PDIP package type. Gain bandwidth product of 1 MHz for balanced speed and accuracy. Operating voltage range from 3 V to 6 V provides design flexibility.
Ultra-low input bias and offset currents for precision amplification. Slew rate of 0.6 V/µs enabling adequate signal response. Output current up to 23 mA to drive a variety of loads. Industrial grade operating temperature from -40°C to 85°C.
RoHS compliant for reduced environmental impact.
This Operational Amplifier is ideal for industrial automation, laboratory instrumentation, embedded systems, audio processing, sensor interfacing, and other electronic circuit designs requiring low noise, precision amplification. For further product range and designs, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, balancing speed and accuracy for various applications.
It operates within a supply voltage range from 3 V to 6 V, providing flexibility for low-voltage circuit designs.
This operational amplifier features 4 channels in a single package, allowing for multiple signal processing tasks.
The maximum operating temperature is rated at 85°C, making it suitable for industrial applications.
It has an output current capability of up to 23 mA, which is adequate for driving moderate loads efficiently.
The input bias current is ultra-low at 19 pA, which is important for precision amplification.
This model is encased in a 14-pin PDIP package, suitable for through-hole mounting.
The slew rate is 0.6 V/µs, providing adequate response speed for signals in the MHz range.
The input offset voltage is maintained at 4.5 mV, ensuring stable signal amplification with minimal drift.
The MCP6004-I/P complies with RoHS standards, affirming its environmentally friendly design.
The minimum operating temperature is -40°C, allowing it to function in harsh conditions.
This operational amplifier is suitable for industrial automation, laboratory instrumentation, audio processing, and sensor interfacing, among others.
