TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 1825136-9

TE Connectivity 1825136-9 Toggle Switch is a precision-engineered PCB mount switch designed for robust industrial and electronic applications. Its On-On SPDT configuration allows for versatile switching between two circuits. Rated for 28 V dc and 115 V ac contact voltage, it ensures reliable electrical performance under demanding conditions.

The switch features through hole terminals that provide secure and stable PCB mounting. Constructed with a phenolic actuator and a stainless steel frame equipped with brass tin plated solder support, it delivers mechanical durability and excellent conductivity. The epoxy sealed terminals further enhance reliability by protecting against environmental contaminants.

With an IP67 ingress protection rating, this toggle switch is highly resistant to dust ingress and water exposure, making it suitable for harsh and industrial environments. Its operating temperature range from -30°C to 85°C allows functionality in extreme temperature conditions encountered in various sectors such as industrial automation, machinery control, and electrical panels.

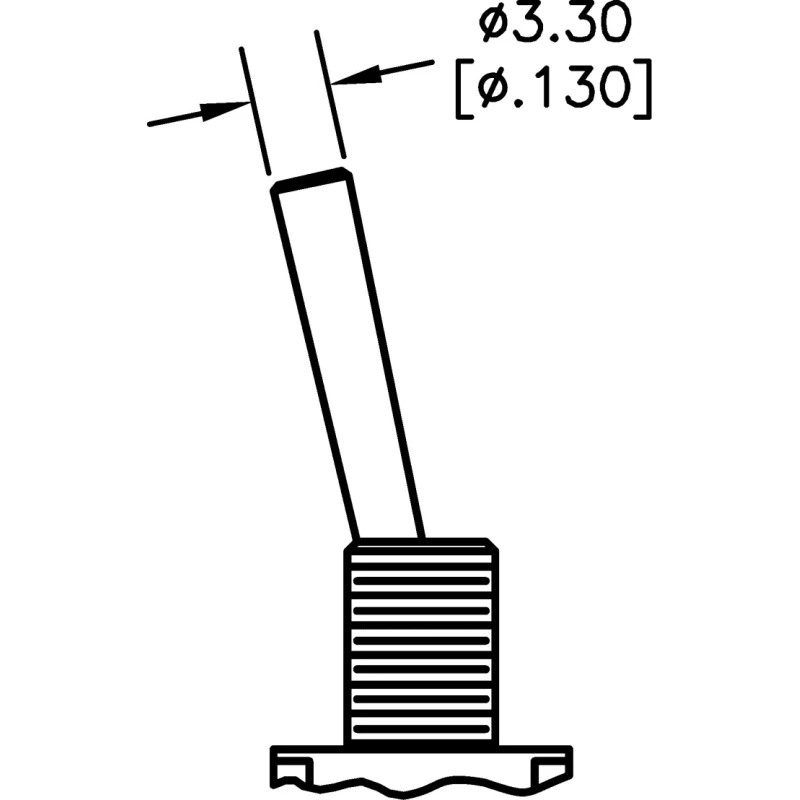

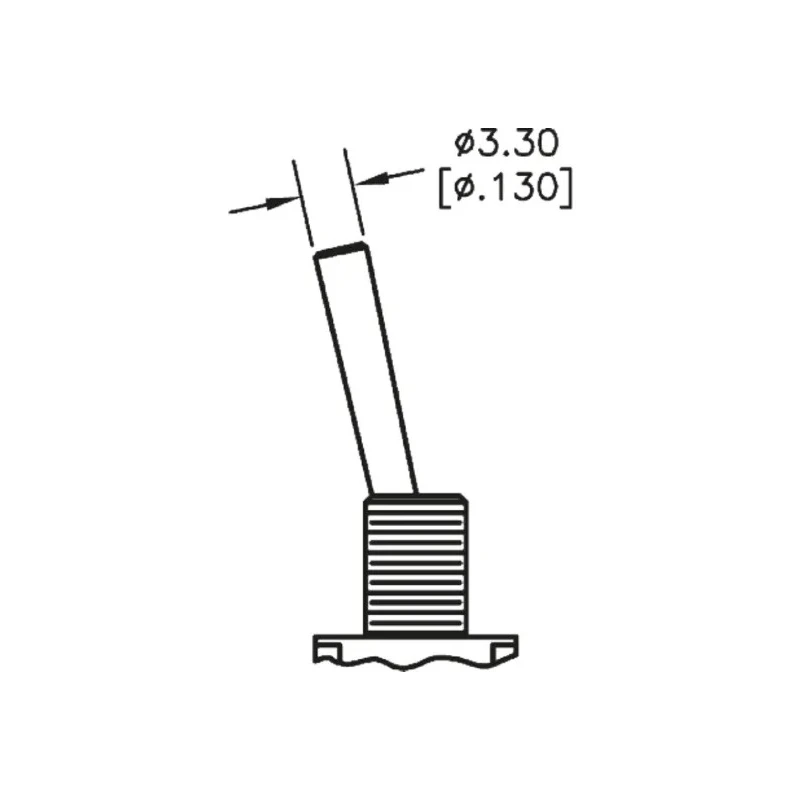

The actuator length of 18.03 mm provides comfortable and precise manual operation. The product meets RoHS compliance, ensuring it is free from harmful substances, adhering to international environmental standards.

The switch features a SPDT contact configuration with On-On switch operation. Designed for PCB mounting with through hole terminals for secure connections. Rated for a maximum contact current of 5A, ensuring robust performance.

Constructed with a phenolic actuator material and stainless steel frame with brass tin plated solder support. Offers an IP67 rating for protection against dust and water ingress. Epoxy sealed terminals enhance durability and reliable contact performance.

Operates reliably within a temperature range of -30°C to 85°C. The actuator length is 18.03 mm for precise manual control. Meets RoHS standards ensuring compliance with hazardous substance regulations. Ideal for electrical, automation, and machinery control applications requiring durable toggle switching.

This toggle switch is perfect for use in electrical systems, automation solutions, industrial controls, and other applications requiring dependable manual switching with high environmental resistance. Its robust construction and compliance with environmental standards make it an excellent choice for professional engineers and designers.
