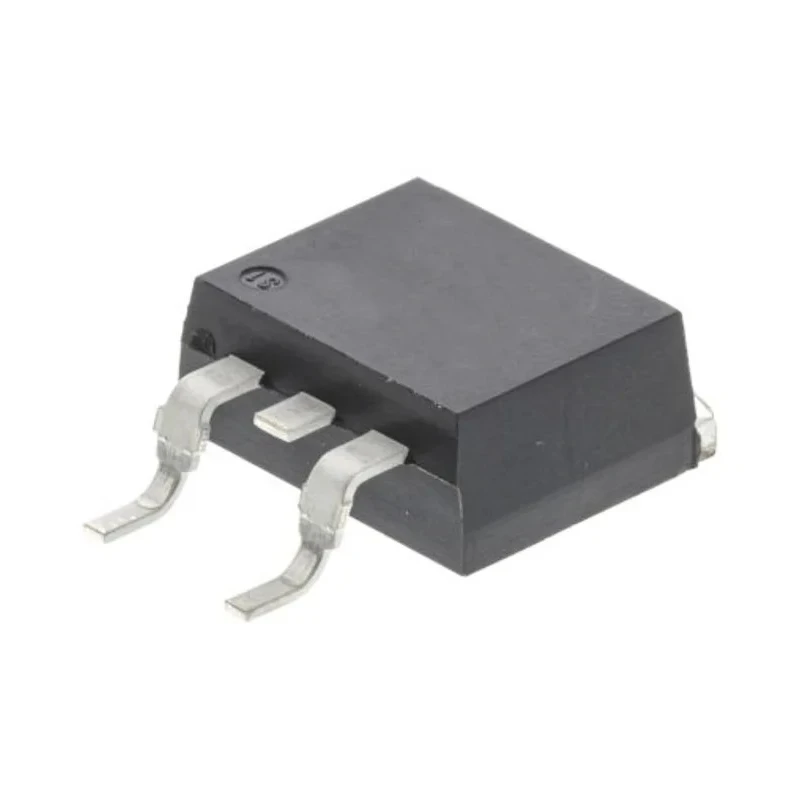

STMicroelectronics Thyristor SCR TO-263, 600 V, 25 A, 15 mA Gate Trigger Current, 394 A Surge Current TN4015H-6G

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Thyristor SCR TO-263, 600 V, 25 A, 15 mA Gate Trigger Current, 394 A Surge Current TN4015H-6G

Name: STMicroelectronics Thyristor SCR TO-263, 600 V, 25 A, 15 mA Gate Trigger Current, 394 A Surge Current TN4015H-6G
Brand: STMicroelectronics
SKU: 160115
Price: 1.61 USD
Availability: InStock



Category Thyristor Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Brand	STMicroelectronics
Model	TN4015H-6G
Mount Type	Surface
Series	40 A SCRs
Maximum Operating Temperature	150°C
Package Type	TO-263
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	25A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	394A
Maximum Gate Trigger Current Igt	15mA
Maximum Holding Current Ih	60mA
Maximum Gate Trigger Voltage Vgt	1.3V
Repetitive Peak Off-State Current	6mA

Key Features

Rated average on-state current of 25A ensures reliable conduction under load.
High repetitive peak reverse voltage of 600 V supports robust blocking capability.
Surge current rating up to 394A handles transient overloads effectively.
Low gate trigger current at 15 mA enables easy gate activation.
Maximum operating temperature up to 150 °C allows high thermal performance.
Compact TO-263 package suits modern surface mount designs.
High noise immunity with dV/dt rating of 500 V/μs ensures stable operation.
Low maximum gate trigger voltage of 1.3 V for efficient gate drive.

Product Description

STMicroelectronics TN4015H-6G is a high-performance SCR thyristor designed for power management and switching in industrial, automotive, and consumer electronics applications. Featuring a rated average on-state current of 25 A and repetitive peak reverse voltage of 600 V, this device ensures reliable conduction and blocking in demanding environments.

Its surface mount TO-263 package supports compact and efficient PCB layouts suitable for modern designs. The device offers excellent thermal performance with a maximum junction temperature of 150 °C, allowing operation under harsh thermal conditions.

The TN4015H-6G exhibits high noise immunity with a dV/dt of 500 V/μs, minimizing false triggering in noisy environments. With a low gate trigger current of 15 mA and gate trigger voltage of 1.3 V, the device facilitates ease of control and efficient switching. Surge current handling capability of 394 A ensures tolerance against transient overloads, protecting the circuitry.

Designed for use in motor control circuits in power tools and kitchen appliances, overvoltage crowbar protection, and inrush current limiting circuits, this thyristor offers robust and compact control solutions. Its wide operating temperature range from -40 °C to 150 °C makes it suitable for a variety of industrial and automotive applications.

Rated average on-state current of 25 A ensures sustained power handling. Repetitive peak reverse voltage up to 600 V protects circuits from voltage spikes. Surge current rating of 394 A offers transient overload protection.

Low gate trigger current at 15 mA for easy device activation. Maximum operating temperature of 150 °C for thermal resilience. Compact TO-263 surface mount package for modern PCB design. High noise immunity with 500 V/μs dV/dt tolerance.

Maximum holding current of 60 mA supports steady switching. Operating temperature range from -40 °C to 150 °C. Typical applications include industrial drives, motor control, and overvoltage protection. The TN4015H-6G thyristor is manufactured in China and is part of the 40 A SCR series by STMicroelectronics, adhering to industry standards for semiconductor devices.
