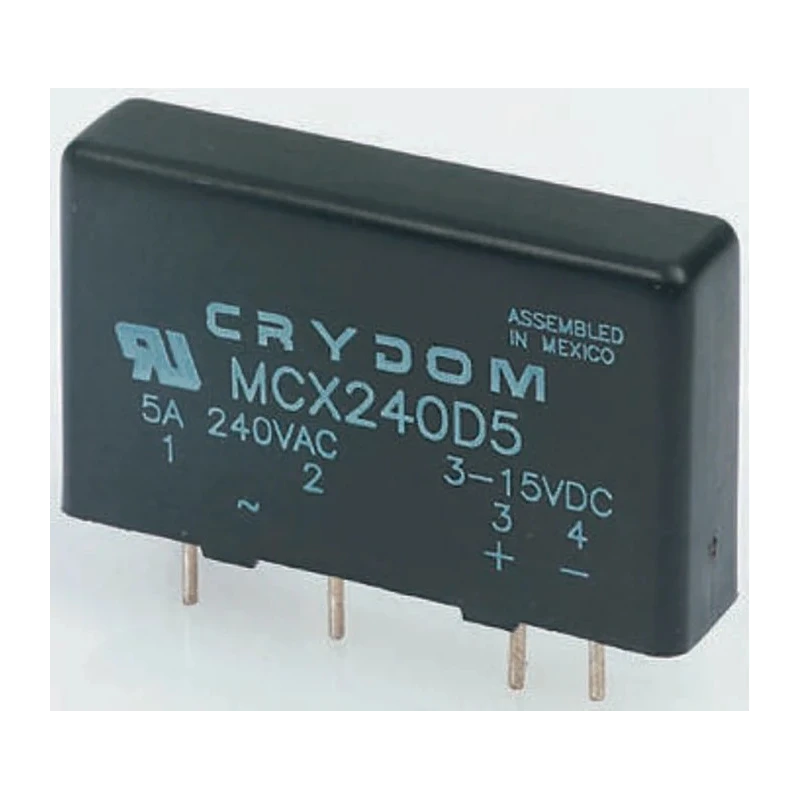

Crydom MCX Series Solid State Relay 5 A Load Panel Mount 280 V Load 36V Control MCXE240A5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 25.4mm |
| Operating Temperature Range | -40 to +80°C |
| Length | 43.1mm |
| Model | MCXE240A5 |
| IP Rating | IP20 |
| Width | 10.2mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | MCX |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | UR, RoHS, CSA |
| Maximum Load Voltage | 280V |
| Minimum Load Voltage | 12V |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 36V |
| Off State Leakage Current | 0.1mA |
| Surge current peak | 250A |
| Input-Output capacitance | 10pF |
Key Features
- Supports up to 5 amp maximum load current.
- Panel mount type with screw terminal connections for secure wiring.
- Operates efficiently across a temperature range of -40 to 80°C.
- Features zero-cross switching for reduced electrical noise and surge.
- Compact SIP package with dimensions 25.4mm height, 10.2mm width, and 43.1mm length.
- High surge current peak capacity of 250 amps for one cycle.
- Low off-state leakage current of 0.1mA for energy-efficient standby.
- Output type is Silicon Controlled Rectifier (SCR) ensuring robust solid-state switching.
Product Description
The Crydom MCX Series Solid State Relay model MCXE240A5 is a reliable panel mount SSR designed to handle up to 5 A load currents at a maximum load voltage of 280 V. It utilizes 36V control voltage input with a minimum control threshold of 4V, making it compatible with various automation and control systems.

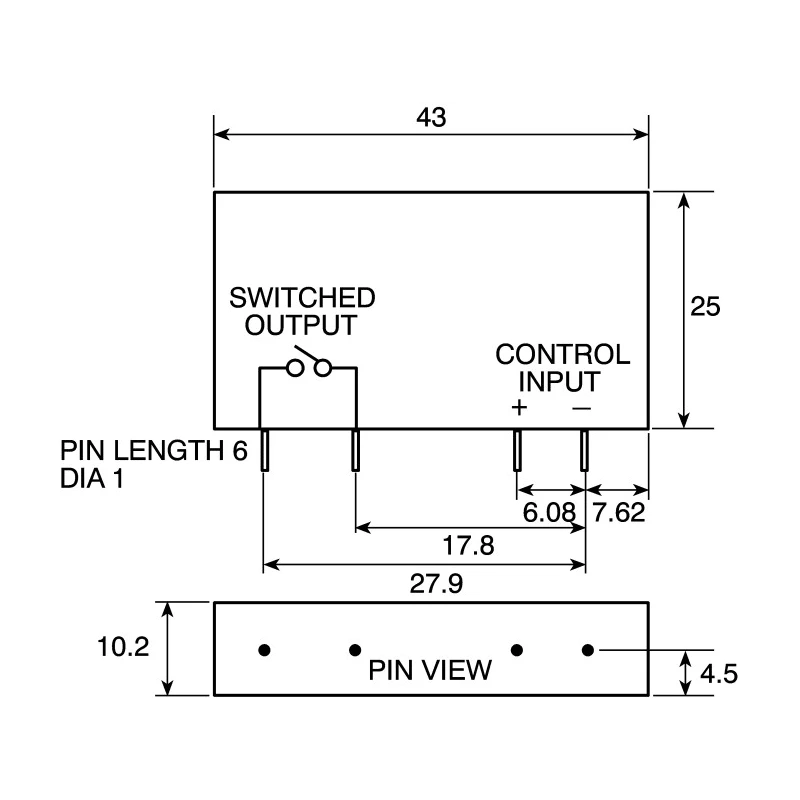

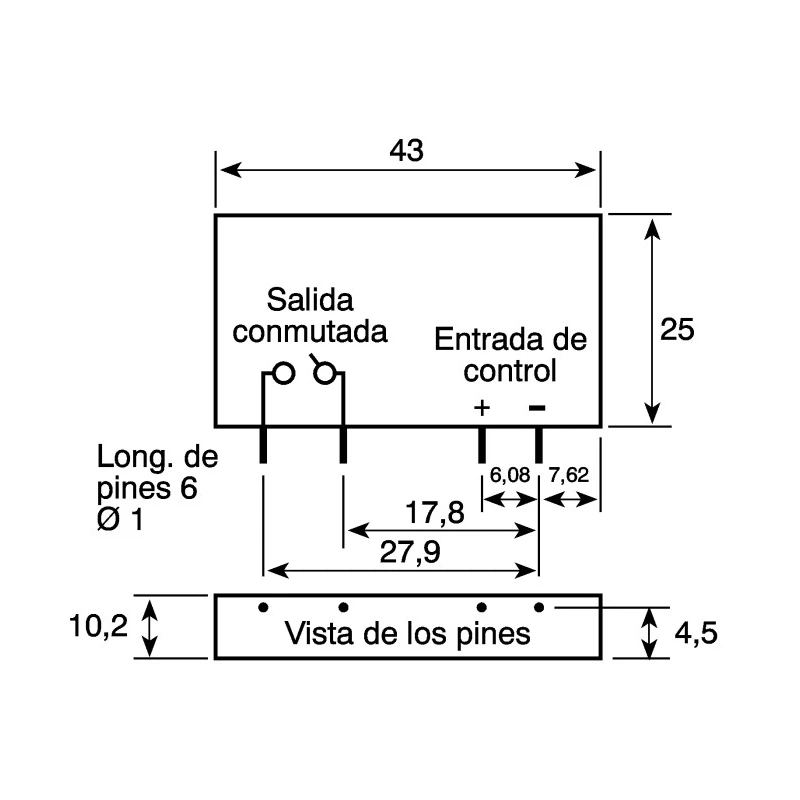

This solid state relay offers zero-cross switching operation, reducing electrical noise and transient voltages during switching cycles. It is housed in a compact SIP package with overall dimensions of approximately 25.4mm height, 10.2mm width, and 43.1mm length, suitable for efficient panel installations.
The relay’s electrical terminals are screw type, allowing firm and easy installation. Its operating temperature range from -40°C up to +80°C ensures robust performance in industrial environments. It maintains a low off-state leakage current of 0.1mA, contributing to energy savings during standby conditions.
Notably, it provides an ultra-high surge current capability up to 250A for one cycle, enabling handling of sudden power spikes typical in industrial switching applications. The output utilizes Silicon Controlled Rectifier (SCR) technology for solid-state, contactless switching, enhancing durability and reliability.
With IP20 protection rating, it is suited for indoor panel mount applications where basic finger protection is sufficient. The relay complies with relevant safety and environmental standards such as UR, RoHS, and CSA certifications, affirming its quality and safe use.
Supports 5 A load current with 280 V maximum load voltage and 36V control input. Zero-cross switching minimizes electrical noise and prolongs equipment life. Compact SIP package for easy panel mounting with screw terminals.
Wide operation temperature range from -40°C to 80°C for industrial suitability. High surge capacity of 250 A peak current for handling transient spikes.
This Crydom MCXE240A5 solid state relay is ideal for industrial, electrical, automation, and control panel applications requiring reliable, low-maintenance switching solutions. It supports various load switching needs in manufacturing, HVAC systems, water treatment, and process automation industries.
Browse EnvMart’s comprehensive selection of Solid State Relays and related control components for reliable and high-quality industrial automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 5 A.
It operates with a control voltage range from 4 V to 36 V.
This solid state relay supports a maximum load voltage of 280 V.
It features zero-cross switching, which minimizes electrical noise during operation.
The dimensions of this model are 25.4 mm in height, 10.2 mm in width, and 43.1 mm in length.
The operating temperature range is from -40°C to +80°C.
It has a surge current peak capacity of 250 A for one cycle.
The relay uses screw type terminals for secure wiring connections.
This model has an IP20 protection rating, suitable for indoor panel mount applications.
It complies with UR, RoHS, and CSA certifications, ensuring its quality and safe use.
The off-state leakage current is 0.1 mA, contributing to energy efficiency during standby.
The output type is Silicon Controlled Rectifier (SCR), facilitating robust solid-state switching.
