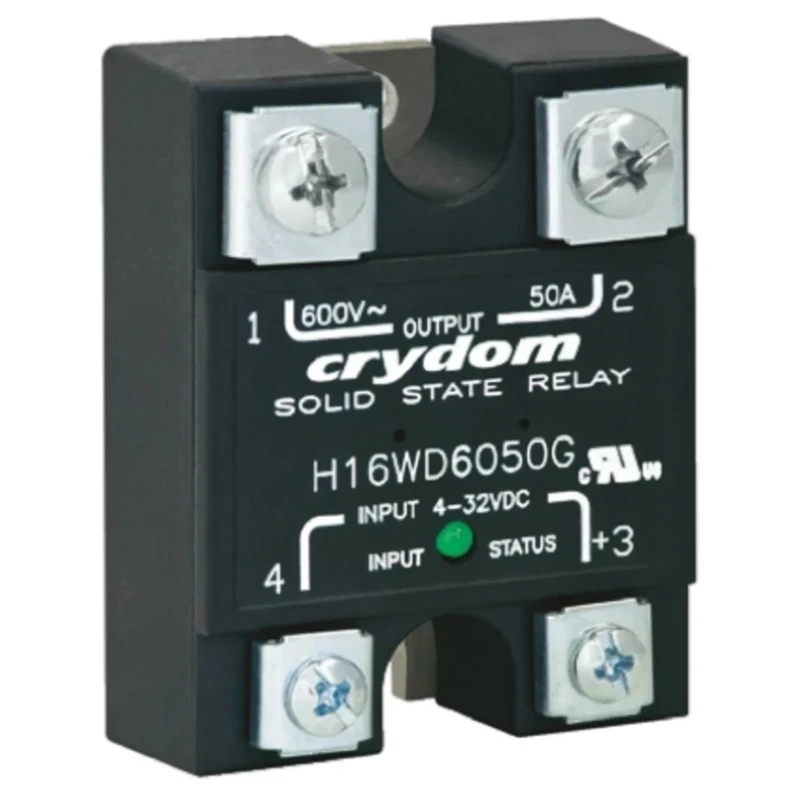

Crydom Panel Mount Solid State Relay 75 A Load, 660 V AC Load, 32 V DC Control H16WD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 58.4mm |
| Length | 45.7mm |
| Model | H16WD |
| Mount Type | Panel |
| Series | H16WD |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Maximum Load Current | 75A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Supports maximum load current of 75 amperes for heavy industrial uses.
- Capable of handling load voltages up to 660 volts AC with a minimum of 48 volts AC.
- Control voltage operation ranges from 4 volts DC minimum to 32 volts DC maximum.
- Features a robust panel mount design with screw terminal connections for ease of installation.
- Operates reliably in temperatures from -40 degrees Celsius to 80 degrees Celsius.
- Equipped with low off-state leakage current of 1 mA to enhance efficiency.
- Hockey puck style casing offers durability and high breakdown voltage of 1600 volts.
- Zero-cross operation mode available for resistive loads, and random firing for inductive loads.
Product Description
Crydom H16WD6075G is a high-performance Panel Mount Solid State Relay from the H16WD Series, engineered for industrial control applications requiring 75 A load current and up to 660 V AC load voltage with 32 V DC control input.
This solid state relay features a hockey puck style casing that provides excellent resistance to surge voltages with a breakdown voltage rating of 1600 volts. The SCR output supports heavy industrial loads safely and efficiently.
Designed with both zero-crossing operation for resistive loads and random-fire operation modes for inductive loads, this relay ensures optimal switching performance and noise immunity in demanding environments.
The robust panel mount form factor with screw terminals simplifies installation while the LED indicator provides clear operational status at a glance. Operating temperature range from -40°C to 80°C makes the relay suitable for a variety of industrial, manufacturing, process control, and automation system applications.
Its low off-state leakage current of 1 mA and capacitance of 8 pF contribute to minimal power losses and signal integrity. This product complies with RoHS standards ensuring environmental compliance. Maximum load current: 75 A.
Load voltage range: 48 V AC to 660 V AC. Control voltage range: 4 V DC to 32 V DC. Operating temperature: -40°C to 80°C. Panel mount design with screw terminal type. Low off-state leakage current of 1 mA. Compact dimensions of 45.7 mm length and 58.4 mm height.
Hockey puck casing with 1600 volt blocking capability. Zero-cross and random firing output modes. LED operational indicator.
This solid state relay is ideal for industrial automation, manufacturing, HVAC systems, and heavy electrical load control. Browse more Solid State Relays and components in the Electronics & Electricals category on EnvMart for compatible accessories and replacements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 75 amperes, making it suitable for heavy industrial applications.
It is capable of handling load voltages from 48 volts AC up to 660 volts AC.
The control voltage operation ranges from a minimum of 4 volts DC to a maximum of 32 volts DC.
This unit has a length of 45.7 mm and a height of 58.4 mm.
It features screw terminal connections, which facilitate ease of installation.
It operates reliably within a temperature range of -40°C to 80°C.
Yes, it supports zero-cross operation for resistive loads and random firing for inductive loads, ensuring optimal performance.
The off-state leakage current is low, rated at 1 mA, which enhances efficiency.
The hockey puck style casing has a high breakdown voltage rating of 1600 volts.
Yes, it complies with RoHS standards, ensuring environmental compliance.
This relay is ideal for industrial automation, manufacturing, HVAC systems, and heavy electrical load control.
It features a robust panel mount design, which is suitable for various installation scenarios.
