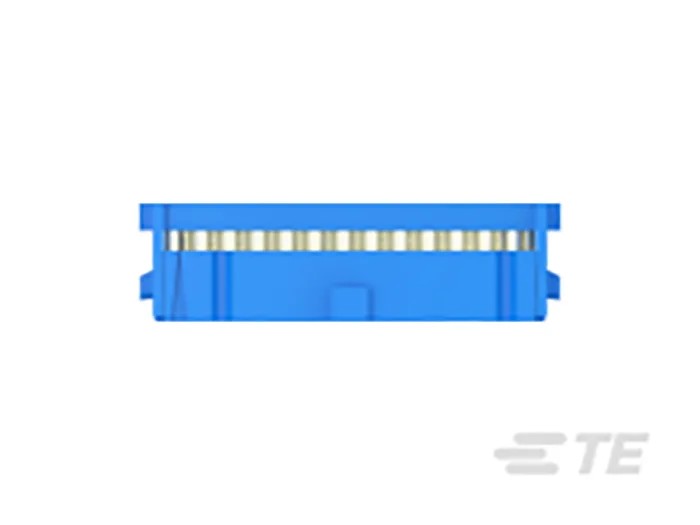

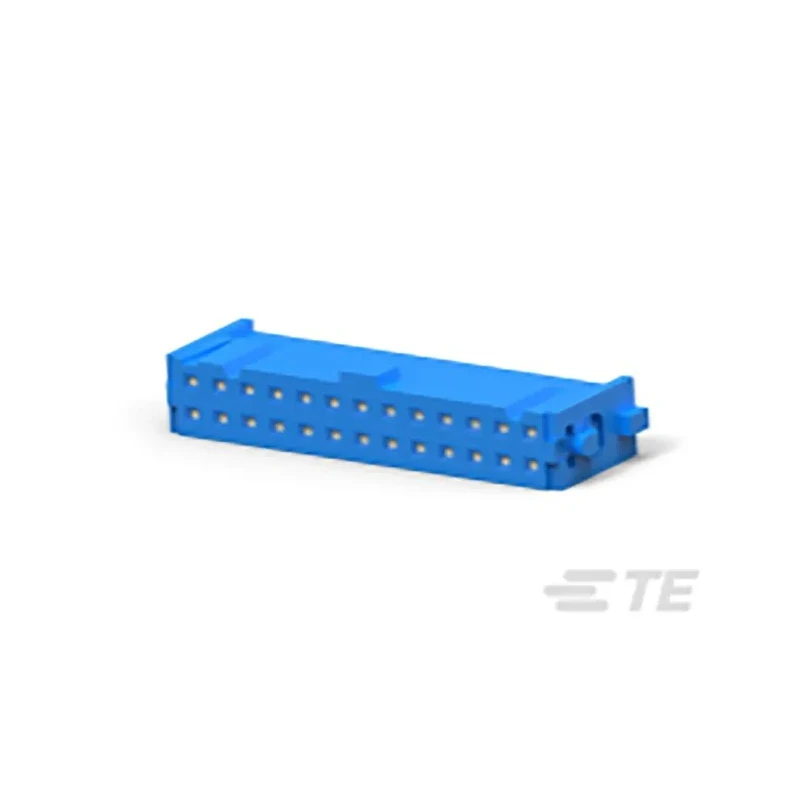

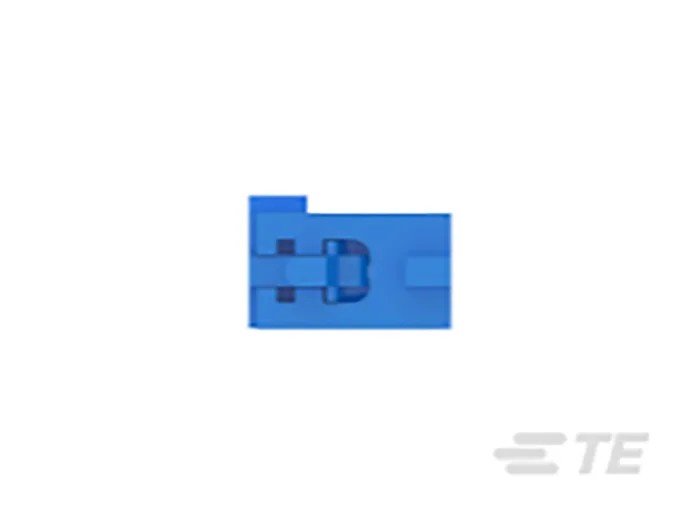

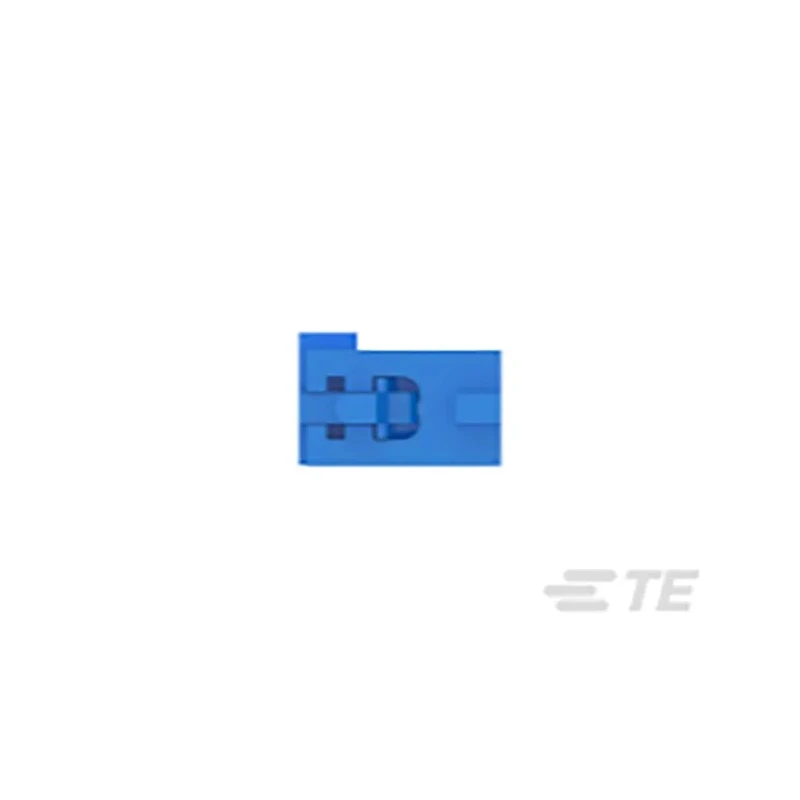

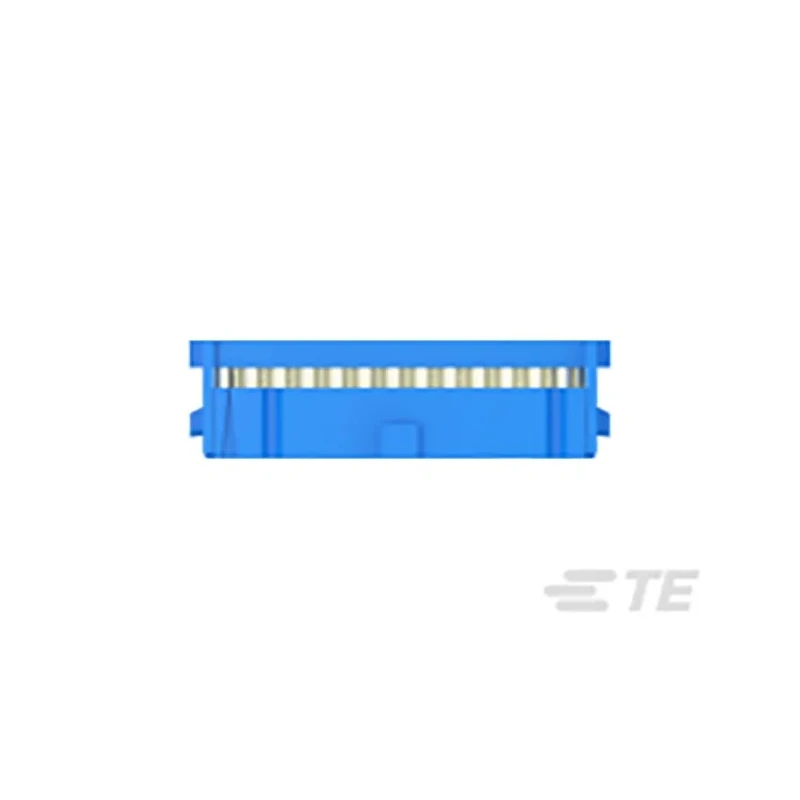

TE Connectivity 26-Way IDC Connector Female for Cable, 2 Row, 1A, 300V, Shrouded, Gold Contact Plating 1-1658526-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Glass Filled Thermoplastic |
| Contact Material | Beryllium Copper Alloy |
| Series | 609 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The connector features 26 contacts arranged in 2 rows for efficient wiring.
- It supports a current rating of 1 Ampere and voltage up to 300 Volts.
- Gold plating on contacts ensures superior conductivity and corrosion resistance.
- Constructed with beryllium copper alloy contacts and glass filled thermoplastic housing for durability.
- Operates reliably within temperature range from -55°C to 125°C.
- The connector design includes a straight orientation and IDC termination type for easy cable connection.
- Complies with series 609 specifications but has no additional standards or approvals.
Product Description
TE Connectivity 1-1658526-5 IDC Connector Female 26-Way 2 Row is a robust and reliable electronic component designed for cable mounting applications. Rated for 1 Ampere current and a voltage of 300 Volts, this connector is ideal for industrial, commercial, and electronic manufacturing environments.
The connector is shrouded, enhancing the safety and reliability of the contact interface. Featuring 26 female contacts in 2 parallel rows with a pitch of 2.54 mm, it facilitates precise and secure electrical connections in wiring harnesses.
The contacts are made of beryllium copper alloy plated with gold in the mating area to ensure high conductivity and resistance to corrosion. The housing is constructed from glass filled thermoplastic, providing durability and excellent insulating properties even in harsh conditions. It operates effectively across a wide temperature range from -55°C to 125°C, making it suitable for demanding environments.
This connector uses IDC (Insulation Displacement Contact) termination, allowing for fast, reliable cable connections without pre-stripping wires. The straight orientation simplifies integration in compact assemblies.
The connector features 26 contacts arranged in 2 rows for efficient wiring. It supports a current rating of 1 Ampere and voltage up to 300 Volts. Gold plating on contacts ensures superior conductivity and corrosion resistance.
Constructed with beryllium copper alloy contacts and glass filled thermoplastic housing for durability. Operates reliably within temperature range from -55°C to 125°C. The connector design includes a straight orientation and IDC termination type for easy cable connection.
Complies with series 609 specifications but has no additional standards or approvals.
This IDC Connector is widely applied in electronic equipment assembly, power distribution systems, and industrial control panels. It provides a secure and durable connection point critical for maintaining system reliability in manufacturing, test instrumentation, automation, and other electronic component industries.
Explore the extensive range of electronic connectors at EnvMart for compatible components and accessories to complete your wiring and assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1 Ampere and a voltage rating of up to 300 Volts.
The contacts are made of beryllium copper alloy, and the housing is constructed from glass filled thermoplastic.
It operates reliably within a temperature range of -55°C to 125°C.
This connector features 26 contacts arranged in 2 rows.
It uses IDC (Insulation Displacement Contact) termination, allowing for fast and reliable cable connections without pre-stripping wires.
The connector has a straight orientation, which simplifies integration in compact assemblies.
The contacts are arranged with a pitch of 2.54 mm.
This connector is shrouded, enhancing the safety and reliability of the contact interface.
It complies with series 609 specifications but has no additional standards or approvals.
This IDC connector is widely applied in electronic equipment assembly, power distribution systems, and industrial control panels.
The connector features female contacts.
The country of origin for this connector is India.
