HARTING 34-Way IDC Connector Female for Cable, 2 Row, Shrouded, Gold Plating, 2A, 320V AC, SEK 18 Series 09185346813

Free Delivery in India | Lowest Global Shipping Charges

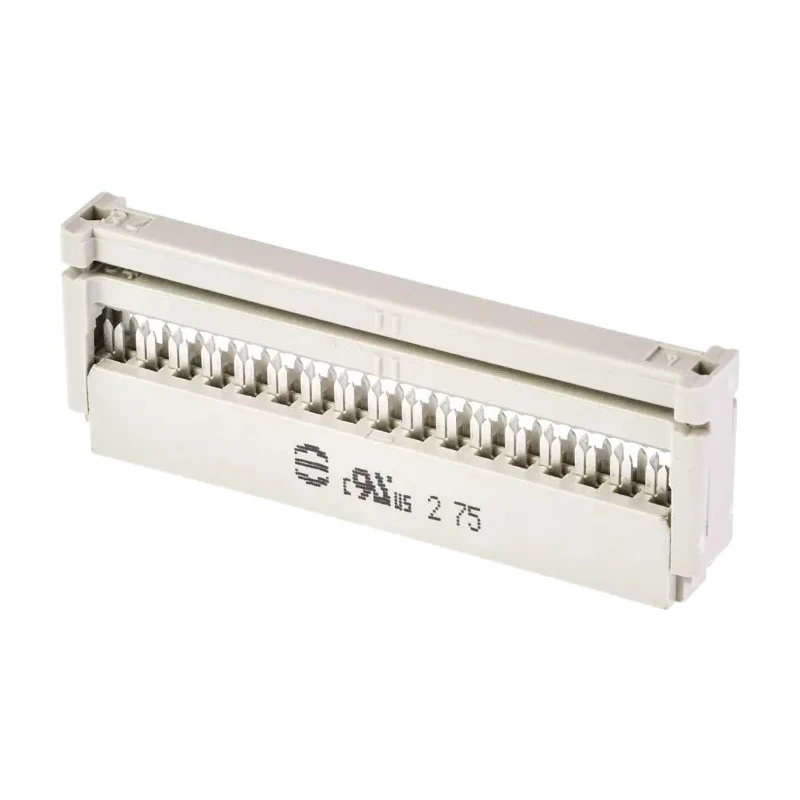

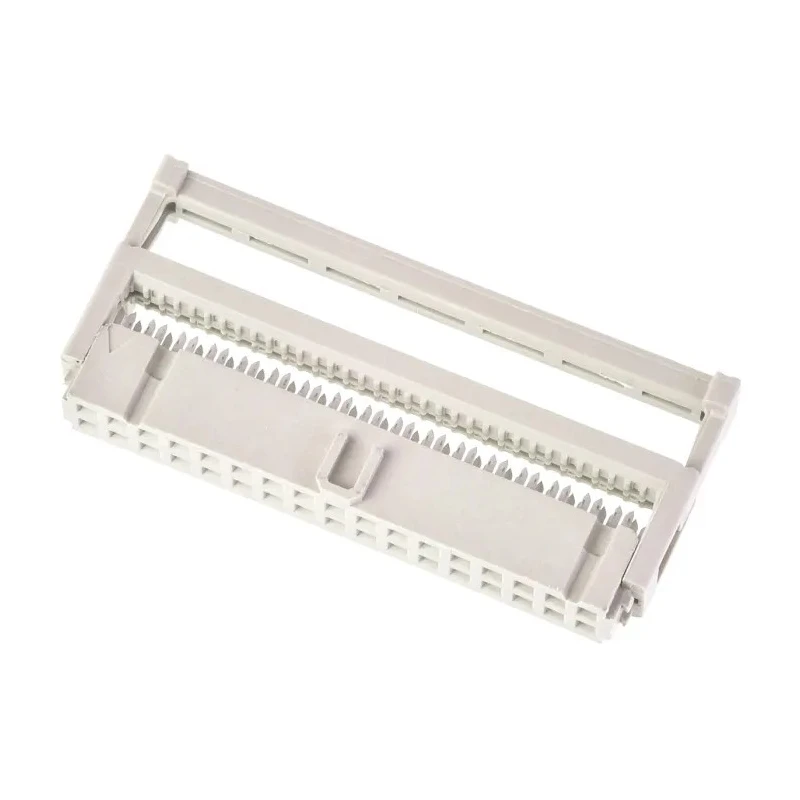

HARTING 34-Way IDC Connector Female for Cable, 2 Row, Shrouded, Gold Plating, 2A, 320V AC, SEK 18 Series 09185346813

Name: HARTING 34-Way IDC Connector Female for Cable, 2 Row, Shrouded, Gold Plating, 2A, 320V AC, SEK 18 Series 09185346813
Brand: HARTING
SKU: 183997
Price: 4.39 USD
Availability: InStock



Category IDC Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	320V ac
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

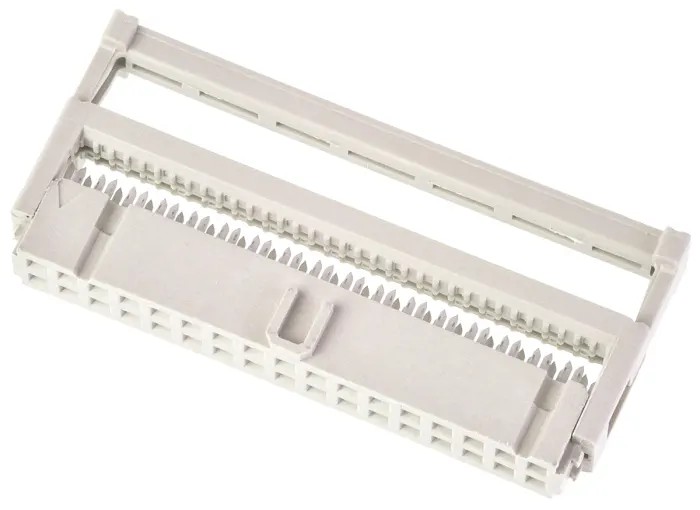

TE Connectivity 34-Way IDC Connector Socket for Cable Mount, 2-RowBrand	TE Connectivity
HARTING 34-Way IDC Connector Female for Cable, 2 RowBrand	HARTING

Key Features

Designed for cable mount with shrouded housing for protection and integrity.
Features right-angle orientation for flexible installation options.
Gold plated contacts ensure excellent conductivity and corrosion resistance.
Rated for 2 amperes current and 320 volts AC voltage for medium power applications.
Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
Suitable for operation in temperatures from -55°C to 125°C, ensuring broad environmental tolerance.
Termination type IDC (Insulation Displacement Contact) enables quick and secure connections.
Complies with standards including IDC, BT224, DIN41651, and DIN EN 60603-13.

Product Description

HARTING 09185346813 34-Way IDC Connector Female for Cable is a robust and reliable connector designed for use in industrial and electronic cable assemblies where secure and efficient connections are required.

This IDC connector features 34 contacts arranged in 2 rows, allowing for dense wiring configurations. It is shrouded, providing protection to the contacts and preventing accidental disconnections or damage.

The connector is gold plated, enhancing electrical conductivity and resistance against corrosion, vital for maintaining signal integrity over time. It is rated for a maximum current of 2 amperes and a voltage of 320 volts AC, making it suitable for various medium-powered applications in electronics, manufacturing, and automation systems.

Constructed with copper alloy contacts and a durable polybutylene terephthalate housing, this connector withstands mechanical and thermal stresses. It operates reliably across a temperature range from -55°C to 125°C, suitable for demanding environments.

The right-angle orientation provides flexible installation in tight spaces, and the IDC termination type allows for quick cable assembly without the need for additional soldering or complex tools.

Reliable 34-way female IDC Connector for cable mount. Shrouded body protects contacts from damage and environmental exposure. Gold plated contacts ensure superior electrical performance. Rated up to 2A current and 320V AC voltage.

Wide operating temperature range from -55°C to 125°C. Durable copper alloy contacts and polybutylene terephthalate housing. Right angle orientation for space-efficient designs. Conforms to standards IDC, BT224, DIN41651, DIN EN 60603-13.

This connector is ideal for use in electronics manufacturing, telecommunications, industrial control, and other electrical applications requiring dependable wire-to-board connections. HARTING products are recognized for industrial quality and reliability.

Explore more connectors and related components in the EnvMart catalog for compatible solutions and accessories to complete your assemblies.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This connector is rated for a maximum current of 2 amperes and a voltage of 320 volts AC, suitable for medium power applications.

It operates reliably across a temperature range from -55°C to 125°C, making it suitable for demanding environments.

This model features IDC (Insulation Displacement Contact) termination, allowing for quick and secure connections without additional soldering.

The connector has 34 contacts arranged in 2 rows, allowing for dense wiring configurations.

It is constructed with copper alloy contacts and a polybutylene terephthalate housing, ensuring durability and resistance to mechanical stresses.

This connector features a right-angle orientation, providing flexible installation options in tight spaces.

Yes, it has a shrouded housing that protects the contacts from damage and environmental exposure.

It complies with several standards including IDC, BT224, DIN41651, and DIN EN 60603-13.

The pitch of the contacts is 2.54mm, which is standard for many IDC connectors.

It is ideal for use in electronics manufacturing, telecommunications, industrial control, and other electrical applications requiring dependable wire-to-board connections.

The connector is manufactured in India.

This model features female contacts, making it a female connector for cable mounting applications.
