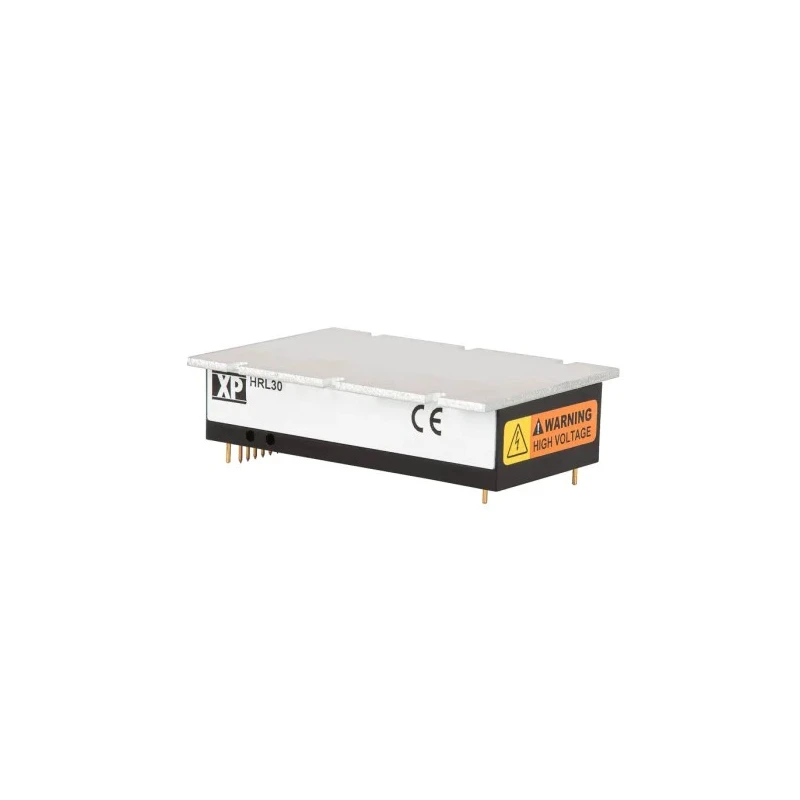

XP Power High Voltage Regulated DC/DC Converter 6000V Output, 30V DC Input, 300mA Output Current, 30W Power, Through HRL30

XP Power HRL30 DC/DC Converter is a miniature, high voltage regulated power supply designed to deliver up to 6000V DC output at a power rating of 30W. It operates from a 22 to 30V DC input voltage range and a maximum output current of 300mA. The device utilizes a proprietary topology that achieves high efficiency of 85% while maintaining low electromagnetic interference (EMI) through low ripple noise of 5%.

The converter supports both voltage and current mode control with automatic crossover to current limiting mode, ensuring the output current does not exceed programmed levels. Its integrated digital compatible voltage and current monitors enable fine-tuned control for a variety of high voltage applications.

Operating from a through hole mount type for straightforward PCB integration, the HRL30 series is designed to function reliably in harsh environments with temperatures ranging from -40°C to +70°C. The converter features robust protections including short circuit, arc, and overload safeguards to maintain operational safety and longevity.

With compact dimensions of 76.2mm length, 50.8mm width, and 18.6mm depth, and a weight of approximately 120 grams, this converter is an efficient solution for medical devices, semiconductor manufacturing, analytical instruments, and other industrial equipment requiring precise high voltage DC power.

Supports through hole mounting for easy PCB integration. Operates efficiently with 85% efficiency and low ripple noise at 5%. Designed to function in temperature ranges from -40°C up to 70°C. Includes short circuit, arc, and overload protections for enhanced reliability.

Equipped with voltage and current monitors enabling precise control. Compact dimensions of 76.2mm length, 50.8mm width, and 18.6mm depth. Contains 14 pins and a mean time between failures (MTBF) of 1 million hours. Includes onboard +5V reference voltage for stable operation.

Suitable for industrial, laboratory, and power supply applications requiring high voltage conversion.

This high voltage DC/DC converter by XP Power is suitable for use in industrial, laboratory, construction, power supply, and other applications where reliable and accurate DC voltage conversion is required. Its advanced design makes it ideal for use in demanding environments requiring stability and protection.
