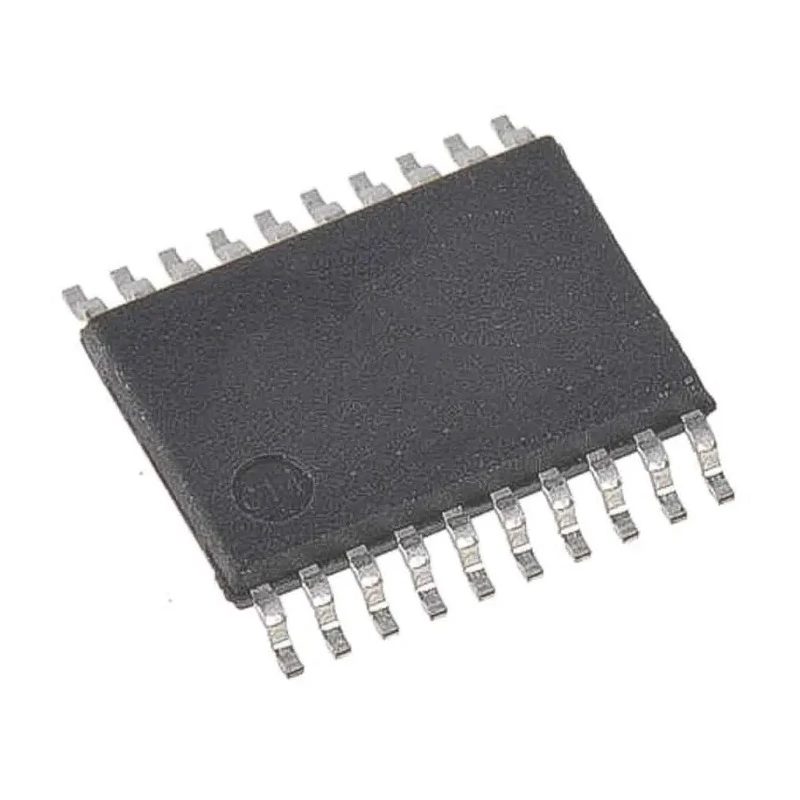

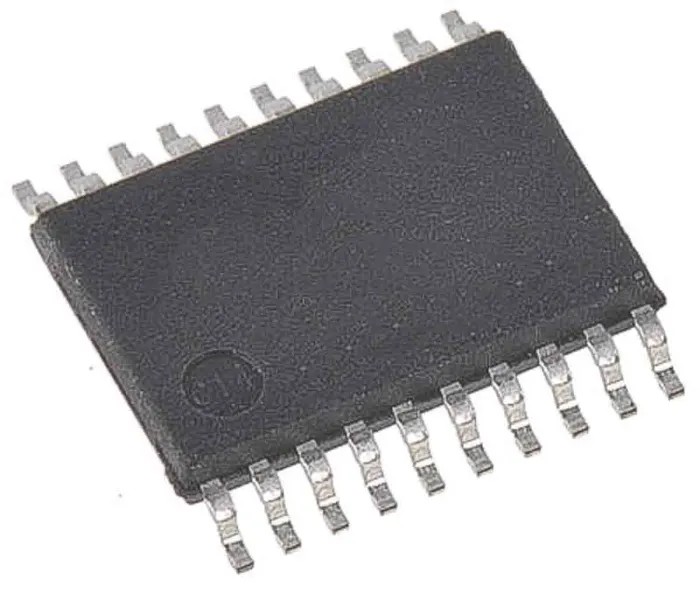

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 20-Pin TSSOP ST3222BTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 20-Pin TSSOP ST3222BTR

Name: STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 20-Pin TSSOP ST3222BTR
Brand: STMicroelectronics
SKU: 158663
Price: 1.34 USD
Availability: InStock



Category Line Interface ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.2mm
Length	6.6mm
Model	ST3222BTR
Width	4.48mm
Mount Type	Surface
Output type	CMOS/TTL
Series	ST3222B
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
IC Type	Line Transceiver IC
Number Of Channels	2
Pin Count	20
Maximum Supply Voltage	3.3V
Logic Family	CMOS/TTL
Logic Function	Line Transceiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	-1mA
Maximum Propagation Delay Time @ CL	200ns
Supply Current	1mA
Maximum Low Level Output Current	1.6mA

Key Features

The device operates from a 3 V to 3.6 V power supply with low power requirements.
It features two receivers and two drivers suitable for EIA/TIA-232 and V.28/V.24 communications.
Includes a 1 mA shutdown mode to reduce power consumption in portable systems.
Supports data rate guarantee of 250 kbps with RS-232 output levels.
Requires only four 0.1 µF external capacitors for operation from 3 V supply.
Typical applications include notebooks, battery-powered and handheld equipment.
Compact TSSOP package with 20 pins and surface mount type.
Operating temperature range from -40°C to 85°C.

Product Description

STMicroelectronics ST3222BTR is a 2-channel line transceiver designed for EIA/TIA-232 and V.28/V.24 communication interfaces, powered by a low 3 V supply with CMOS/TTL logic compatibility. It operates efficiently in portable and handheld devices, extending battery life through a low power 1 mA shutdown mode while allowing receiver activity for monitoring modems.

This line transceiver features a proprietary low dropout transmitter output stage, ensuring true RS-232 performance at supply voltages from 3 to 3.6 V. The device supports a minimum guaranteed data transfer rate of 250 kbps and slew rate of 6 V/µs, suitable for high-speed serial communication.

The ST3222BTR is housed in a compact 20-pin TSSOP surface mount package, measuring 6.6 mm in length, 4.48 mm in width, and 1.2 mm in height, making it ideal for space-constrained electronic designs. The operating temperature range of -40°C to 85°C ensures reliable performance in harsh environments.

The device requires only four small 0.1 µF capacitors for complete operation from a 3 V supply, simplifying external component requirements. With a supply current of 1 mA and output current characteristics of -1 mA (high level) and 1.6 mA (low level), it meets the demands of modern battery-powered systems.

Typical industrial applications include integration in notebooks, sub-notebooks, palmtop computers, handheld devices, peripherals, and printers requiring reliable serial communication.

The device operates efficiently with low power consumption suitable for portable equipment. Guarantees RS-232 performance with a data rate of 250 kbps. Compact TSSOP 20-pin package ideal for surface mounting in space-constrained applications.

Wide operating temperature range for industrial and commercial uses. Simple external capacitor configuration enhances ease of integration. Explore more products in the Interface ICs category at EnvMart for diverse semiconductor solutions.

Explore more products in our Line Interface ICs category.
