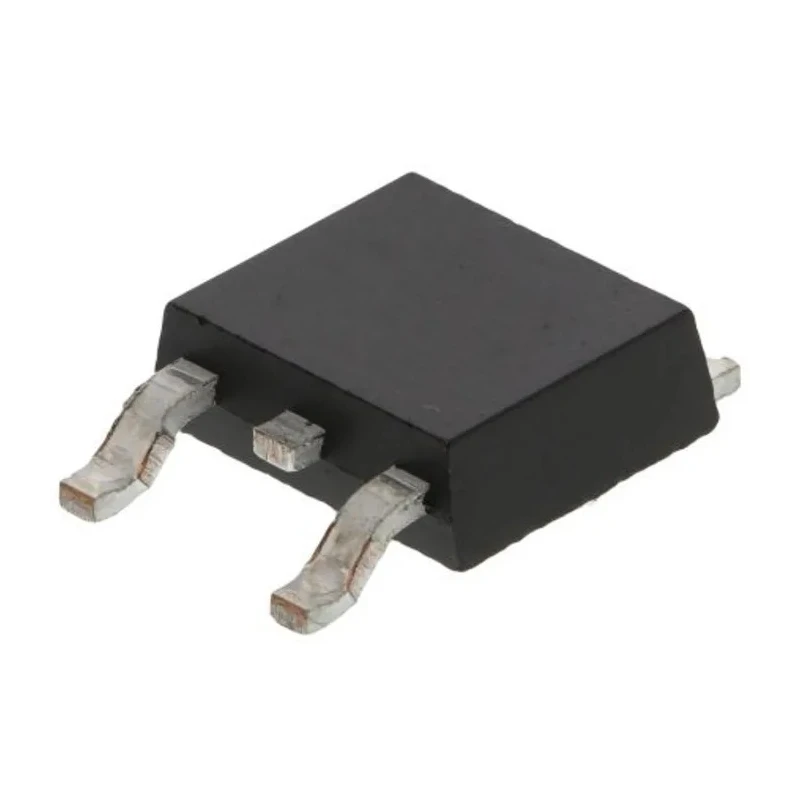

STMicroelectronics Surface Mount Positive Voltage Regulator 35V 0.5A Quiescent Current 6mA L78M08CDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 35V 2-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.73mm |
| Model | L78M08CDT-TR |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | L78M |
| Maximum Operating Temperature | 150°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6mA |
| Pin Count | 2 |
Key Features
- Offers local on-card voltage regulation for stable power supply.
- Features internal current limiting and thermal shutdown for durability.
- Includes short circuit protection and output transition SOA protection.
- Supports output voltage tolerance of 2%.
- Operates up to a maximum temperature of 150°C for high reliability.
- Compact size with dimensions approximately 6.73mm length and 6.22mm width.
- 2-pin configuration suitable for surface mounting applications.
- Designed primarily as a fixed voltage regulator with options for adjustable voltages.
Product Description
STMicroelectronics L78M08CDT-TR is a surface mount positive voltage regulator designed for reliable power management in electronic circuits. It features a maximum input voltage of 35V and a quiescent current of only 6mA, delivering stable output currents up to 0.5A when adequately heat-sinked.
The device incorporates robust protections including internal current limiting, thermal shutdown, short circuit protection, and output transition safe operating area (SOA) protection, ensuring long-term durability and enhanced device security during operation.
The regulator offers output voltage tolerance of 2% and supports operation up to a maximum temperature of 150°C, making it suitable for demanding industrial, electronics manufacturing, and embedded power supply applications.
Physically, the L78M08CDT-TR comes in a compact surface mount package measuring approximately 6.73 mm in length by 6.22 mm in width, with a 2-pin configuration for ease of PCB mounting.
While mainly used as a fixed voltage regulator, this series supports use with external components to achieve adjustable voltage and current outputs, providing flexibility for varied design requirements.
Local on-card regulation minimizes distribution issues associated with single-point regulation. Internal thermal and current protections enhance device reliability. Compact dimensions aiding space-efficient PCB layouts. Wide industrial use including electronics, power supplies, and embedded control systems.
Supports applications requiring stable and regulated voltage under varying loads.
This product is part of STMicroelectronics’ L78M series, well-suited for industrial, electronics, and power management use cases requiring small surface mount voltage regulation with reliable performance.
Explore a wide range of power management ICs and Voltage Regulators at EnvMart for your industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V.
The quiescent current of this voltage regulator is 6mA.
This unit has dimensions of approximately 6.73mm in length, 6.22mm in width, and a height of 2.4mm.
The L78M08CDT-TR operates at a maximum temperature of 150°C.
This model supports surface mounting with a 2-pin configuration.
It includes internal current limiting, thermal shutdown, short circuit protection, and output transition safe operating area (SOA) protection.
The output voltage tolerance for this regulator is 2%.
It is designed for use in industrial applications, electronics manufacturing, and embedded power supply systems requiring stable voltage regulation.
While primarily a fixed voltage regulator, it can support adjustable voltages with external components.
This voltage regulator is part of the L78M series by STMicroelectronics.
The polarity of this voltage regulator is positive.
The country of origin for this model is India.
