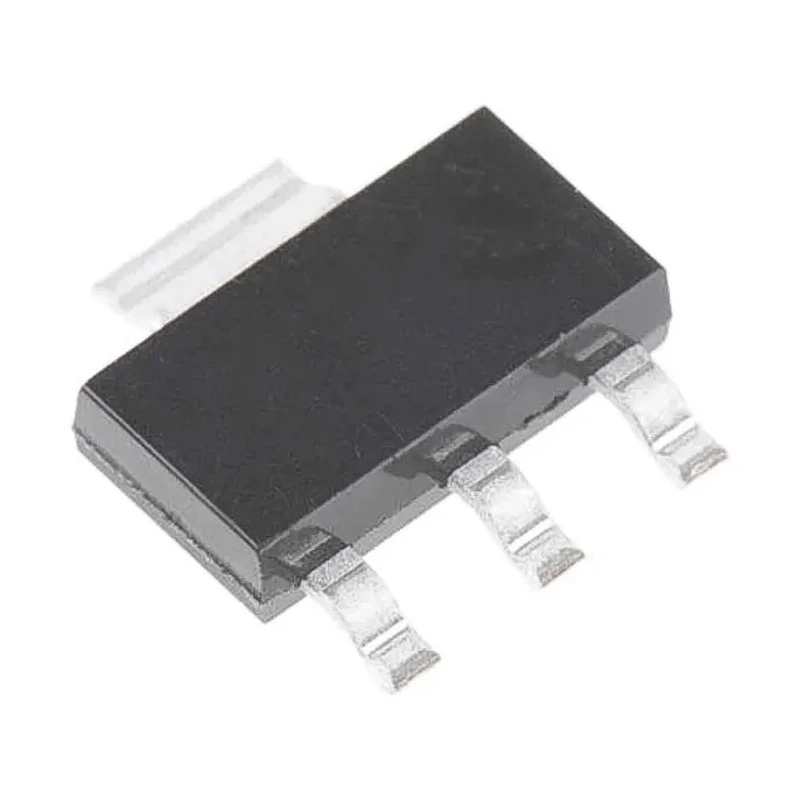

STMicroelectronics Surface Mount 4-Pin TRIAC 600 V Gate Trigger 1.3 V Z0107NN 5AA4

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Surface Mount 4-Pin TRIAC 600 V Gate Trigger 1.3 V Z0107NN 5AA4

Name: STMicroelectronics Surface Mount 4-Pin TRIAC 600 V Gate Trigger 1.3 V Z0107NN 5AA4
Brand: STMicroelectronics
SKU: 158531
Price: 0.19 USD
Availability: InStock



Category TRIAC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.8mm
Length	6.7mm
Model	Z0107NN 5AA4
Mount Type	Surface
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	SOT-223
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Rated Average On-State Current Irms	1A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	8.5A
Maximum Gate Trigger Current Igt	25mA
Maximum Holding Current Ih	10mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak Gate Power Dissipation	1W

Key Features

The TRIAC supports a rated average on-state current of 1 A for reliable switching.
It comes in a compact SOT-223 package designed for surface mounting.
The device features a gate trigger current of up to 25 mA and a maximum holding current of 10 mA.
Operational temperature ranges from -40°C to 125°C, allowing use in diverse environments.
The surge current rating of 8.5 A ensures durability under transient conditions.
This single-configuration TRIAC is RoHS compliant, making it environmentally friendly.
The package dimensions include a length of 6.7 mm and height of 1.8 mm for space-sensitive PCB designs.

Product Description

STMicroelectronics Z0107NN 5AA4 is a new surface-mount 4-pin TRIAC designed for general purpose AC switching applications in electronic circuits.

This TRIAC operates with a repetitive peak reverse voltage rating of 600 V and requires a maximum gate trigger voltage of 1.3 V, enabling efficient triggering in low-voltage control environments.

Key electrical parameters include a rated average on-state current of 1 A and a peak surge current rating of 8.5 A, suitable for loads such as home appliances, pumps, and lamp controls.

The device comes enclosed in a space-saving SOT-223 package with a length of 6.7 mm and height of 1.8 mm, facilitating compact and surface-mounted PCB assemblies.

Its operating temperature range extends from -40°C to 125°C, ensuring dependable performance across varied environments including industrial, commercial, and laboratory applications.

The TRIAC’s gate trigger current is specified at 25 mA max, while the maximum holding current is 10 mA, optimizing control with microcontrollers and other low-power drivers. The device is RoHS compliant, indicating adherence to environmental standards banning hazardous substances.

The TRIAC enables effective AC power switching for applications such as fan speed controllers and electrovalves. Its SOT-223 surface mount package supports efficient heat dissipation and compact design. Robust gate and surge current ratings provide high reliability for transient electrical conditions.

Operating temperature range allows use in industrial and consumer electronics. Compliance with RoHS ensures eco-friendly electronics manufacturing. This product is ideal for electronics manufacturers, industrial machine builders, HVAC system integrators, and other technical users seeking reliable AC switching components.
