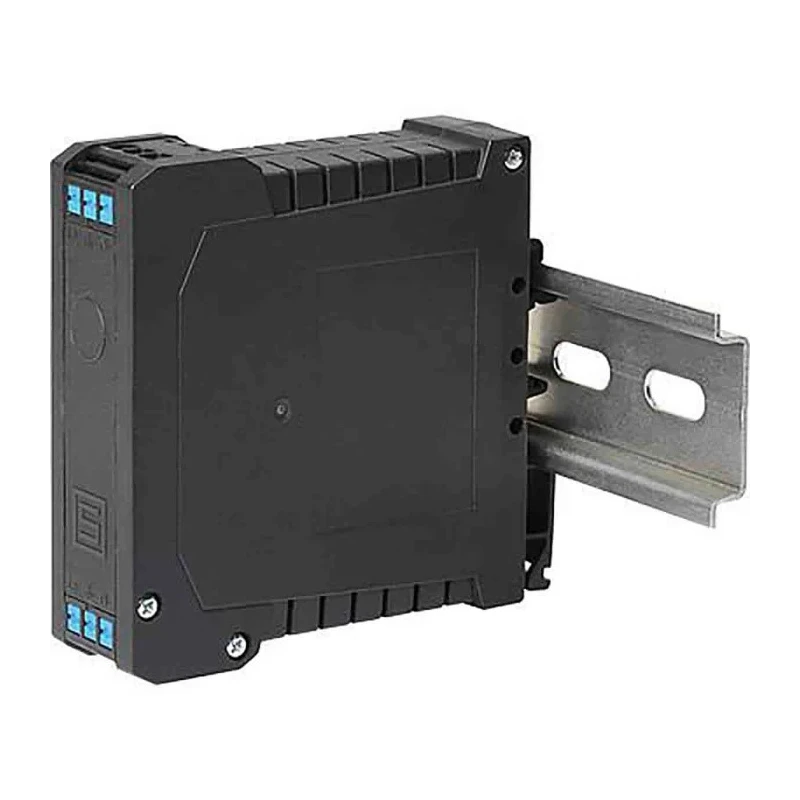

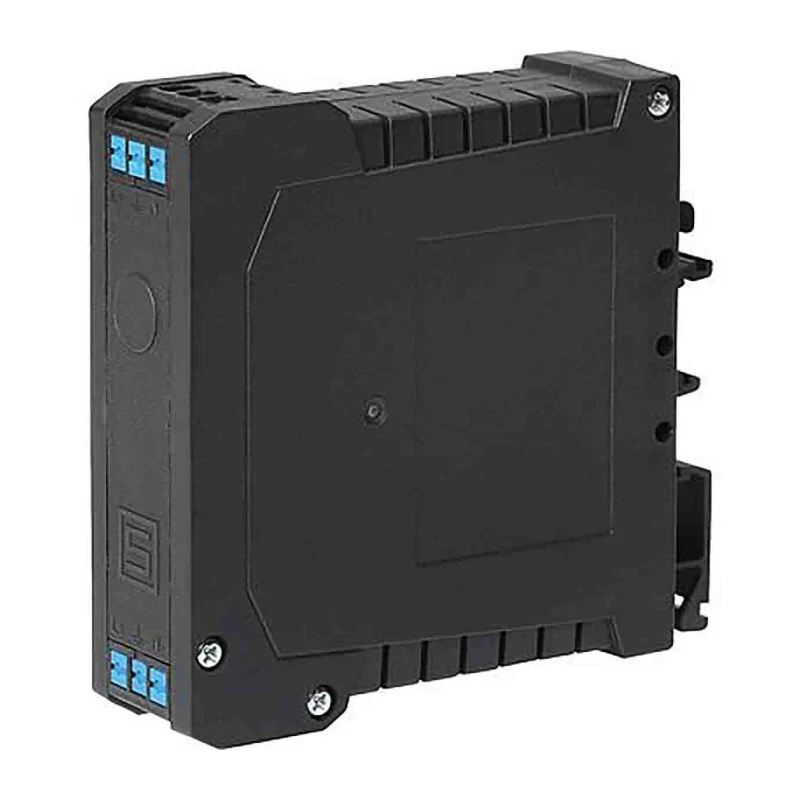

Schurter FPBB Series 16A 250V AC/DC 50Hz-60Hz DIN Rail Power Line Filter with Cage Clamp Terminal 3-103-678

Free Delivery in India | Lowest Global Shipping Charges

Schurter FPBB Series 16A 250V AC/DC 50Hz-60Hz DIN Rail Power Line Filter with Cage Clamp Terminal 3-103-678

Name: Schurter FPBB Series 16A 250V AC/DC 50Hz-60Hz DIN Rail Power Line Filter with Cage Clamp Terminal 3-103-678
Brand: Schurter
SKU: 158178
Price: 20.22 USD
Availability: InStock



Category Power Line Filters Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	85mm
Length	25mm
Depth	89.5mm
Packaging	20 pieces
Mount Type	DIN Rail
Operating Frequency	50, 60Hz
Series	FPBB
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	8mΩ
Minimum Operating Temperature	-40°C
Maximum Current	16A
Number of Phases	1
Leakage Current	500μA
Maximum Voltage	250V ac/dc
Standards/Approvals	IEC 61140, RoHS, UL, VDE
Termination Style	Cage Clamp Terminal
Power Loss	1.55W

Key Features

The filter operates efficiently at 50 and 60 Hz frequencies, providing high attenuation.
It features a slim design with cage clamp terminals for quick and secure wiring.
Comprises 2-stage AC/DC filtering for enhanced interference suppression.
Designed with overcurrent and overvoltage protection including fuse holder and thermal circuit breaker options.
Supports a wide operating temperature range from -40°C to 100°C for durability.
Compliance with standards IEC 61140, RoHS, UL, and VDE ensures reliability and safety.
Has a low resistance of 8mΩ and power loss of 1.55W, enhancing energy efficiency.
Leakage current is minimal at 500μA, suitable for sensitive electronic environments.

Product Description

Schurter 3-103-678 FPBB 16A 250V AC/DC Power Line Filter is engineered for single-phase DIN rail mounting applications. It effectively filters interference voltage from power mains and minimizes electromagnetic disturbances generated by connected equipment.

This 2-stage AC/DC power line filter features cage clamp terminals offering easy and secure wiring connections. Designed with overcurrent and overvoltage protection, the filter includes options for fuse holders and thermal circuit breakers, improving equipment safety in industrial and commercial electrical switch cabinets.

Operating reliably between -40°C and 100°C, this robust filter supports frequencies of 50 and 60 Hz and complies with IEC 61140, RoHS, UL, and VDE standards ensuring high quality and regulatory compliance.

The compact dimensions (85mm height, 89.5mm depth, 25mm length) and slim form factor allow installation in limited space environments. With a very low resistance of 8mΩ and power loss of 1.55W, it maintains system efficiency while leakage current remains low at 500μA.

Efficient 2-stage AC/DC filtering for EMI suppression. Quick wiring with cage clamp terminals. Overcurrent and overvoltage protection with fuse holder or thermal circuit breaker. Slim and compact design for DIN rail or chassis mounting.

Operating temperature range from -40°C to 100°C. Complies with IEC 61140, RoHS, UL, and VDE standards. Suitable for electric switch and control cabinets. Pack of 20 pieces for bulk industrial use.

Ideal for industrial, laboratory, manufacturing, and HVAC applications requiring reliable suppression of electromagnetic interference and protection of sensitive equipment. Explore more Power Line Filters and EMI protection devices in the EnvMart catalog.
