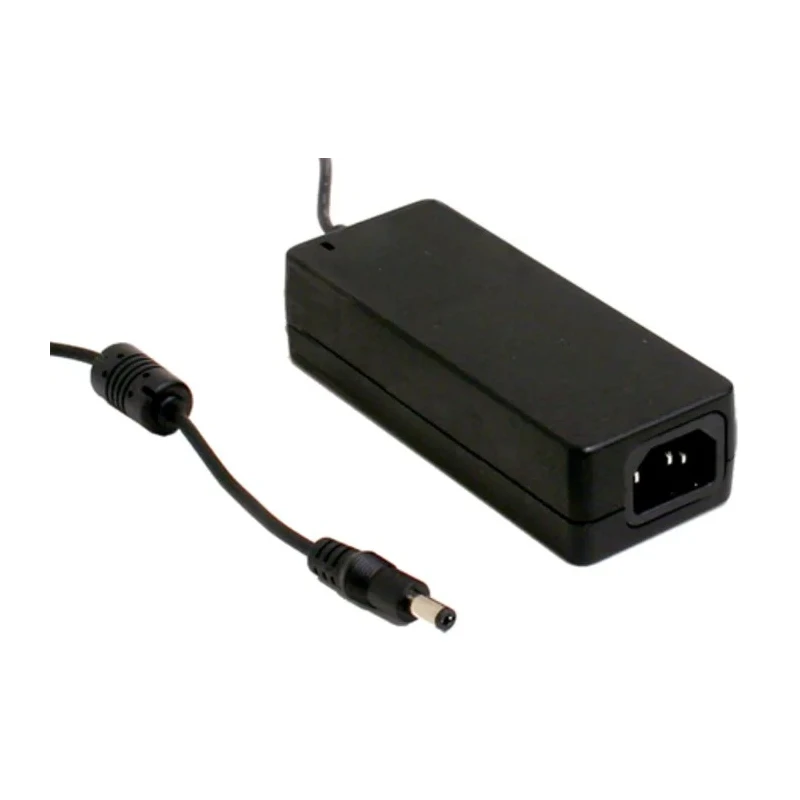

MEAN WELL Medical Grade AC/DC Adapter Type C 264V AC Input 12V DC 11.5A Output GSM160A12-R7B

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Medical Grade AC/DC Adapter Type C 264V AC Input 12V DC 11.5A Output GSM160A12-R7B

Name: MEAN WELL Medical Grade AC/DC Adapter Type C 264V AC Input 12V DC 11.5A Output GSM160A12-R7B
Brand: MEAN WELL
SKU: 141356
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GSM160A12-R7B
Cable Length	1000mm
Overall Length	175mm
Series	GSM160A
Overall Width	67mm
Maximum Operating Temperature	70°C
Plug Type	Type C
Maximum Input Voltage	264V ac
Maximum Output Current	11.5A
Standards/Approvals	CE, IEC 60950-1, UL 60950-1
Minimum Input Voltage	90V ac
Overall Depth	35mm
Minimum Output Voltage	12V dc
Input Connector Type	IEC 320-C14
Better World Verification	UL Energy Verified

Key Features

Supports a universal input voltage range from 90V to 264V AC.
Provides a maximum output current of 11.5 amperes at 12 volts DC.
Includes a 3 pole IEC 320-C14 inlet for easy connection.
Constructed for medical safety compliance with ultra-low leakage current.
Achieves up to 94% efficiency with very low no-load power consumption below 0.15 W.
Features cable length of 1000 mm and overall compact dimensions of 175x67x35 mm (LxWxD).
Designed to meet international standards including CE, IEC 60950-1, and UL 60950-1.
Certified as a Better World product with UL Energy Verified rating.

Product Description

MEAN WELL GSM160A12-R7B medical grade AC/DC adapter is a highly reliable power supply solution intended for use in medical, industrial, and commercial environments requiring strict safety and efficiency standards. It features a Type C plug and 3-pole IEC 320-C14 inlet, accommodating an input voltage range from 90V AC to 264V AC, making it suitable for global applications.

This adapter delivers a fixed 12V DC output with a maximum current of 11.5A, ensuring stable power for sensitive medical devices and equipment. The GSM series adheres to 2*MOPP international medical safety standards, significantly reducing leakage current to protect patients and users.

Engineered for energy efficiency, the GSM160A12-R7B achieves up to 94% efficiency and maintains very low standby power consumption below 0.15 watts, supporting environmental sustainability and compliance with Level V energy regulations.

The device is certified to meet global safety standards, including CE marking, IEC 60950-1, and UL 60950-1 approvals, providing assurance of product quality and safety. Its operating temperature can reach up to 70°C, suitable for demanding operational conditions.

Physical dimensions of 175 mm length, 67 mm width, and 35 mm depth, along with a 1000 mm cable, offer compact installation and ease of use in various applications.

This AC/DC adapter is ideal for powering medical instruments, laboratory equipment, and other devices requiring stable and certified power supply solutions. The product contributes to energy saving and reducing carbon footprint as a Better World product, verified by UL Energy certification.

Supports universal AC voltage input from 90V to 264V AC. Fixed DC output voltage of 12V with a maximum current of 11.5A. Medical safety compliance with ultra-low leakage current. High energy efficiency up to 94% with low no-load power use.

Certified to international standards CE, IEC 60950-1, UL 60950-1. Compact dimensions at 175 x 67 x 35 mm and cable length of 1000 mm. Operating temperature up to 70°C for reliable performance. Energy saving Level V compliant and Better World verified.
