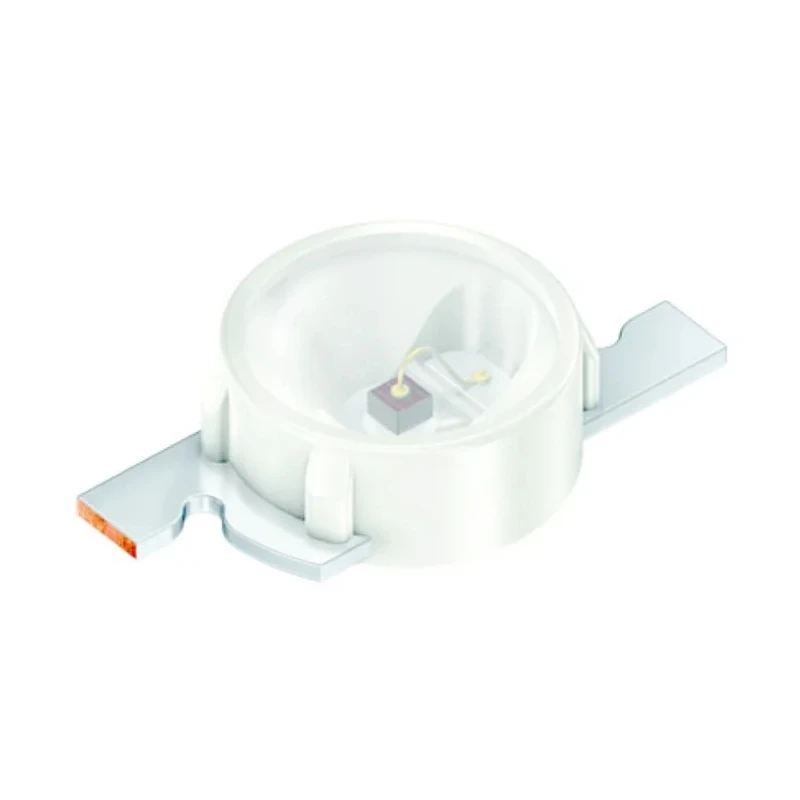

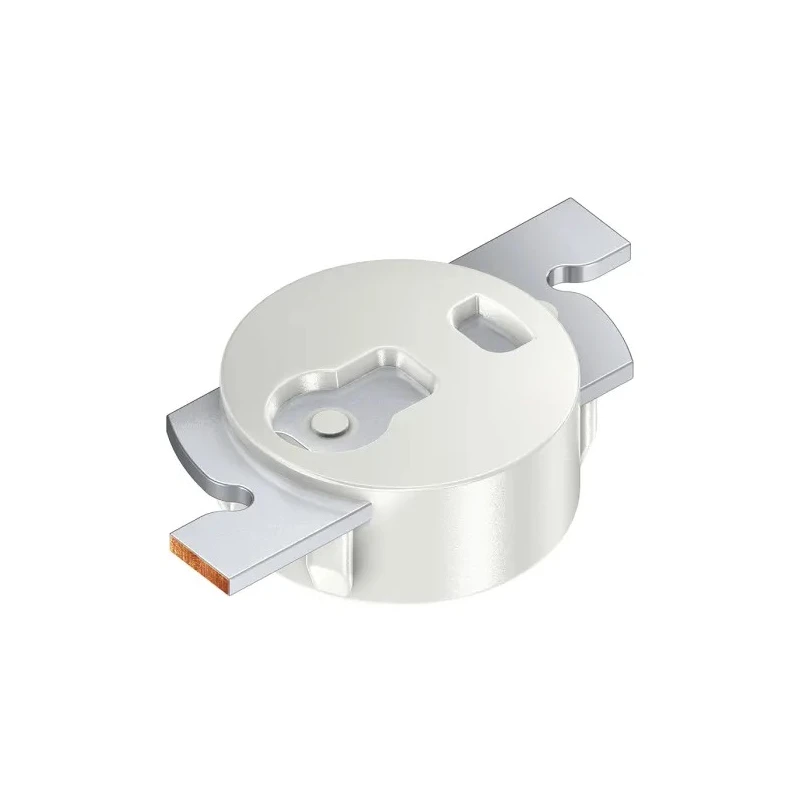

ams OSRAM 2.25 V Red LED SMT Surface PointLED LS P47F-U2AA-1-3A5A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | ams OSRAM |
| Package | white SMT package, colourless clear resin |
| Model | LS P47F-U2AA-1-3A5A |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | PointLED |
| Maximum forward current | 50mA |
| Viewing angle | 120 ° |
| Package Type | SMT |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 633nm |
| Forward Voltage | 2.25V |
| Number of Pins | 2 |
| LED Luminosity | 710 mcd |
| Lens Dimensions | 3.4 x 1.9 x 0.82 mm |
| Lens Shape | Round |
| LED Luminous Flux | 1910 mLm |
| Chip technology | Thinfilm |
| Typ. Radiation | 120° (Lambertian emitter) |
| Corrosion Robustness Class | 3B |
Key Features
- Operates at a maximum forward current of 50 mA for reliable performance.
- Features a surface mount tape & reel packaging for easy PCB integration.
- Emits red light with a dominant wavelength of 633 nm and a viewing angle of 120°.
- Compact lens dimensions measure 3.4 x 1.9 x 0.82 mm with a round clear lens shape.
- Provides a luminous flux of 1910 mLm and luminosity of 710 mcd for bright illumination.
- Uses Thinfilm chip technology ensuring durability and efficiency.
- Designed without automotive standard compliance, suitable for diverse electronics applications.
- Corrosion Robustness Class 3B enhances longevity in harsh conditions.
Product Description
ams OSRAM LS P47F-U2AA-1-3A5A is a Red LED SMT Surface PointLED designed for high luminous efficacy in a compact 2 mm package with 2.25 V forward voltage. It features a thin, flat, round lens with a diameter of just 2 mm and a height of 0.775 mm, making it ideal for applications sensitive to space constraints.
This LED is packaged as a white SMT with a colorless clear resin lens that emits super red light concentrated at a dominant wavelength of 633 nm. It provides a wide 120° Lambertian radiation pattern ensuring uniform illumination across its emission angle.
Constructed using Thinfilm chip technology, it supports a maximum forward current of 50 mA and a luminous flux output of 1910 mLm with luminosity reaching 710 mcd. The lens dimensions of 3.4 x 1.9 x 0.82 mm accommodate surface mounting on electronic equipment.
Compliant with RoHS standards and classified under Corrosion Robustness Class 3B, this LED is suitable for use in ambient light sensors, cluster and button backlighting, gaming and amusement devices, interior illumination including ambient map lighting, and transportation sectors including planes and ships. It is also applicable in white goods manufacturing and various electronic equipment requiring high-efficiency indicator lighting.
Operates at forward voltage of 2.25 V with maximum forward current of 50 mA. Offers a 120° viewing angle with a round clear lens shape. LED luminous flux rated at 1910 mLm and luminosity at 710 mcd. Corrosion Robustness Class 3B ensures performance stability in challenging environments.
Packaged in tape & reel format for automated surface mounting. Thinfilm chip technology delivers reliability and efficiency. Ideal for industrial, automotive (non-automotive standard), and consumer electronic lighting applications.
This product is manufactured in Malaysia and is supplied as new, ready for integration in various electronic designs. Explore more ams OSRAM LEDs and electronic components at EnvMart for enhanced system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 50 mA, ensuring reliable performance during operation.
This LED emits red light with a dominant wavelength of 633 nm, providing a specific color output for various applications.
It features a viewing angle of 120°, allowing for a wide dispersion of light across its emission pattern.
The lens dimensions measure 3.4 x 1.9 x 0.82 mm, making it compact for various electronic applications.
It is packaged in a white SMT format with a tape & reel packaging style for easy integration onto PCBs.
The luminous flux is rated at 1910 mLm, providing bright illumination for effective lighting solutions.
This model has a luminosity of 710 mcd, which contributes to its brightness in various applications.
It utilizes Thinfilm chip technology, which enhances reliability and efficiency in performance.
Yes, it is compliant with RoHS standards, ensuring it meets environmental regulations for electronic components.
This LED is classified under Corrosion Robustness Class 3B, indicating its capability to perform in harsh conditions.
It is suitable for various applications including ambient light sensors, backlighting, and interior illumination in electronic devices.
This product is manufactured in Malaysia, ensuring quality in production.
