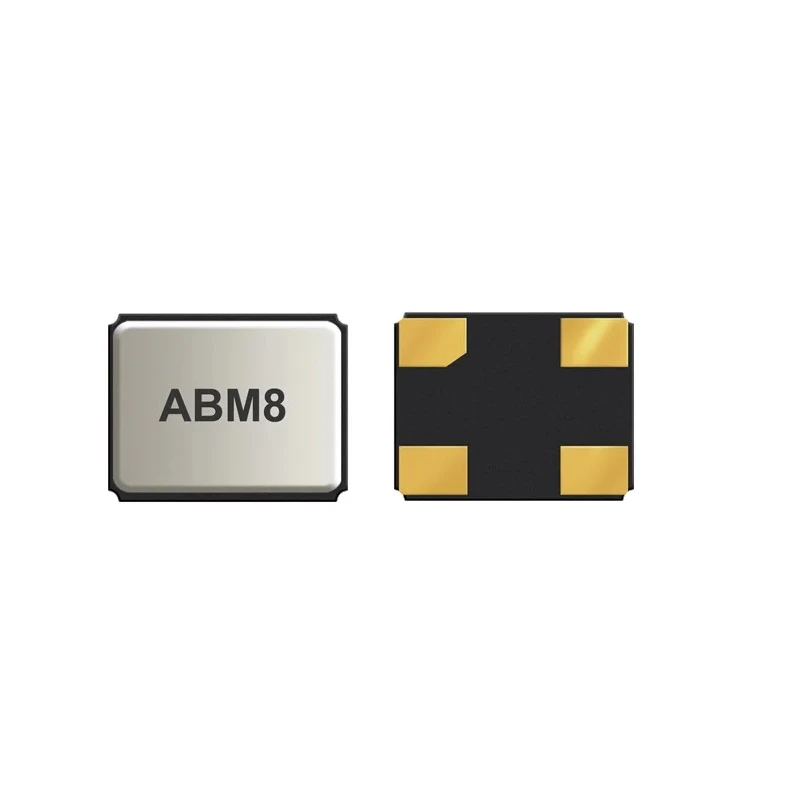

Abracon 16 MHz Crystal Unit ±10 ppm Frequency Tolerance Surface Mount 4-Pin Package ABM8-16.000MHz-9-D1G-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-16.000MHz-9-D1G-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 9pF |
| Series Resistance | 70Ω |
Key Features
- Standard frequency of 16 MHz suitable for precise timing applications.
- Surface mount package with 4 pins designed for compact PCBs.
- Low height of 0.8 mm supports thin electronic equipment.
- Series resistance of 70 ohms allows low signal loss.
- Operating temperature range from -40°C to 85°C for reliability.
- Packaged in tape and reel form for automated assembly.
- Complies with RoHS standards for environmental safety.
- Load capacitance of 9 pF for optimal oscillator performance.
Product Description
The Abracon ABM8-16.000MHz-9-D1G-T is a precision 16 MHz crystal unit designed for surface mount technology with a 4-pin package configuration. Featuring a low profile of only 0.8 mm height, this crystal unit is ideal for incorporation into thin and compact electronic devices where space is limited. The unit provides a tight frequency tolerance of ±10 ppm and frequency stability of ±15 ppm, ensuring reliable timing accuracy essential for communication, test, and industrial electronic systems.
Constructed with a seam-sealed package design, the crystal unit offers high reliability and resistance to environmental stresses. Its operating temperature range from -40°C to 85°C enables stable performance under various environmental conditions. The series resistance of 70 ohms minimizes signal loss, enhancing circuit efficiency.
This crystal unit is supplied in tape and reel packaging, facilitating automated pick-and-place assembly processes. It complies with RoHS directives, confirming its suitability for environmentally conscious electronics manufacturing.
Common applications for this crystal unit include high-density circuit designs, modems, wireless communication devices, PMCIA cards, and test equipment, where precision and stability are critical.
Standard frequency of 16 MHz suitable for precise timing applications. Surface mount 4-pin package supporting compact PCB designs. Low profile height of 0.8 mm for thin device integration. Frequency tolerance ±10 ppm and stability ±15 ppm for accuracy.
Series resistance of 70 ohms ensuring low insertion loss. Wide operating temperature range from -40°C to 85°C. RoHS compliant for environmentally safe applications. Tape and reel packaging compatible with automated assembly.
Load capacitance of 9 pF optimized for oscillator circuits. Ideal for communication, wireless, and test equipment applications. Explore more Crystal Units and related electronics components at EnvMart for your industrial and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz, suitable for precise timing applications.
This model has a low profile height of 0.8 mm, which is ideal for integration into thin electronic devices.
The load capacitance of this crystal unit is 9 pF, optimized for oscillator performance.
The series resistance is 70 ohms, which helps to minimize signal loss in circuits.
It operates within a temperature range of -40°C to 85°C, ensuring stable performance under various conditions.
The crystal unit is packaged in tape and reel form, which is compatible with automated assembly processes.
It supports surface mounting, making it suitable for compact PCB designs.
The dimensions are 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
It complies with RoHS standards, indicating its suitability for environmentally safe applications.
Common applications include high-density circuit designs, modems, wireless communication devices, and test equipment.
The frequency tolerance is ±10 ppm, providing reliable timing accuracy.
The model number is ABM8-16.000MHz-9-D1G-T, which identifies this specific crystal unit.
