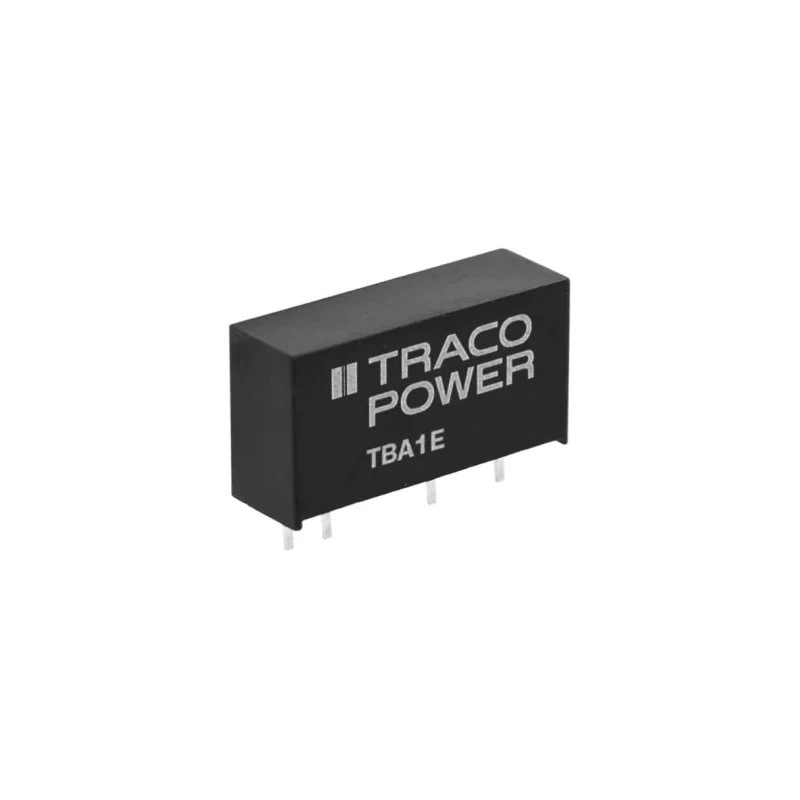

TRACOPOWER DC/DC Converter 15V dc, 33mA Output Current, 13.2V dc Input, 10.8V Input, 1W Power, PCB Mount, SIP-7 TBA 1-1223E
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TBA 1E DC/DC Converter, 15V dc/ 33 mA |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 19.5mm |
| Model | TBA 1-1223E |
| Depth | 9.55mm |
| Width | 6mm |
| Mount Type | PCB |
| Series | TBA 1E |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-7 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 33mA |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | -15V dc |
| I/O isolation | 1500 VDC |
Key Features
- Operates with input voltage from 10.8V to 13.2V dc.
- Compact SIP-7 package suitable for space-constrained circuits.
- Maintains performance from -40°C to 85°C without derating.
- Features 1,500 VDC isolation for safe electrical separation.
- Continuous short circuit protection enhances reliability and safety.
- Achieves up to 80% efficiency ensuring minimal power loss.
- Mean time between failures (MTBF) is 2,000,000 hours indicating long service life.
- Unregulated dual outputs including 15V dc and -15V dc.
Product Description
TRACOPOWER's TBA 1-1223E model is a robust DC/DC Converter designed for electronic and industrial applications requiring stable power supply on printed circuit boards. This device delivers 15V dc output at a current of 33mA with an input voltage range from 10.8V to 13.2V dc, built into a SIP-7 package that optimizes footprint space on PCBs.
Engineered for operations in demanding environmental conditions, this converter supports temperatures from -40°C minimum to 85°C maximum without derating, making it ideal for industrial, telecommunications, and commercial electronics.
The converter includes continuous short circuit protection and a high isolation voltage of 1,500 VDC between input and output, satisfying stringent safety requirements. Its efficiency of approximately 80% ensures energy effective operation with minimal heat generation.
Its dual outputs provide unregulated voltages of +15V and -15V dc, suitable for powering symmetrical loads in sensitive analog or digital circuits. Offered with a 3-year product warranty, the TBA 1-1223E assures long operational reliability with a mean time between failure rating of 2 million hours.
Operates reliably over a wide temperature range from -40°C to +85°C. Low-profile SIP-7 package for efficient PCB integration. High isolation rated at 1,500 VDC ensures safety and noise immunity. Short circuit protected for enhanced durability in fault conditions.
Unregulated dual outputs meet diverse application needs. High efficiency reduces overall power consumption and heat build-up. Long-lasting performance with a 2 million hour MTBF.
This DC/DC converter is ideal for use in industrial controls, instrumentation, communications equipment, and embedded systems where reliable low power DC supply isolation is critical.
Browse related TRACOPOWER DC/DC Converters and power supply solutions on EnvMart to find the perfect match for your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 10.8V to 13.2V dc.
This unit provides an output voltage of 15V dc with a maximum output current of 33mA.
It is designed in a low-profile SIP-7 package, suitable for PCB mounting.
The maximum operating temperature for this DC/DC converter is 85°C.
This model features an isolation voltage of 1,500 VDC between input and output.
The efficiency of this unit is approximately 80%, ensuring minimal power loss during operation.
This converter has two outputs: +15V dc and -15V dc.
The mean time between failures (MTBF) for this unit is rated at 2,000,000 hours.
The dimensions of this model are 19.5mm in length, 9.55mm in depth, and 6mm in width.
This model is suitable for use in industrial controls, instrumentation, communications equipment, and embedded systems.
The minimum operating temperature for this unit is -40°C.
Yes, this DC/DC converter includes continuous short circuit protection to enhance reliability and safety.
