TE Connectivity 67 Way Right Angle Edge Memory Card Connector, Solder 1-2199230-6

Free Delivery in India | Lowest Global Shipping Charges

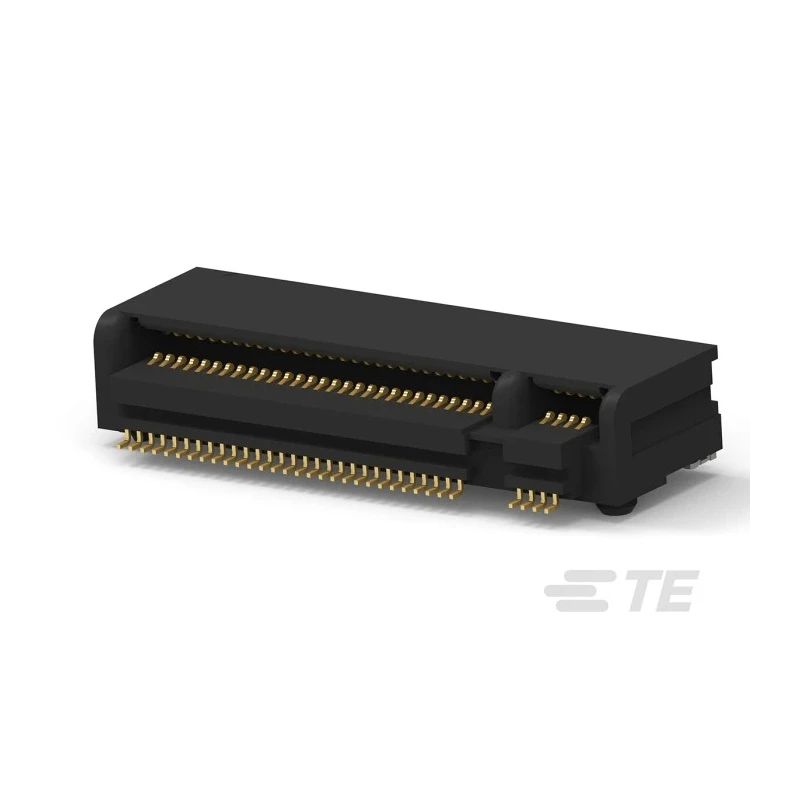

TE Connectivity 67 Way Right Angle Edge Memory Card Connector, Solder 1-2199230-6

Name: TE Connectivity 67 Way Right Angle Edge Memory Card Connector, Solder 1-2199230-6
Brand: TE Connectivity
SKU: 157513
Price: 2.44 USD
Availability: InStock



Category Memory Card Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Orientation	Right Angle
Gender	Female
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Interfaces	USB 3
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	67
Card Type	Edge

Key Features

Offers 67 contacts arranged in 2 rows with 0.5 mm pitch.
Features right angle orientation for compact PCB assembly.
Constructed with copper alloy contacts plated in gold for reliable conductivity.
Housing made of thermoplastic supports operating temperatures from -40°C to 80°C.
Compatible with PCI Express 3.0, USB 3.0, and SATA 3.0 interfaces.
Designed for single and double-sided modules with various keying options.
Reduces PCB real estate usage by over 20% compared to PCIe Mini Card connectors.
Widely used in notebooks, ultrabooks, tablets, servers, and portable gaming devices.

Product Description

TE Connectivity 1-2199230-6 is a 67 way right angle edge memory card connector designed for solder termination and surface mount assembly. It features 67 gold-plated copper alloy contacts arranged in 2 rows with a fine 0.5 mm pitch spacing. The connector housing is made from durable thermoplastic, capable of withstanding operating temperatures ranging from -40°C to 80°C.

This Memory Card Connector supports various high-speed communication standards including PCI Express 3.0, USB 3.0, and SATA 3.0, making it ideal for modern electronic devices requiring fast data transfer. Its right angle orientation and edge card design help in saving over 20% of PCB space compared to conventional PCIe Mini Card connectors, while also reducing connector height by 15%, which benefits compact device assembly.

Suitable for both single and double-sided module cards, the connector comes with versatile keying options to ensure correct mating and module compatibility. Applications span a diverse range of electronic devices such as notebooks, ultrabooks, desktops, tablets, servers, portable gaming devices, and portable mobile devices that require solid state drives (SSD).

67 contacts with gold plating for reliable electrical performance. Right angle orientation for space-efficient PCB design. Thermoplastic housing ensures mechanical robustness and thermal stability. Solder termination and surface mount mount type facilitate automated assembly processes.

Supports PCI Express 3.0, USB 3.0 and SATA 3.0 interfaces for broad device compatibility. Designed to reduce PCB real estate and connector height, enhancing device compactness.

Manufactured in China and provided as new product condition, this connector meets high standards for electronic component performance and reliability. It is an essential component for industrial electronics, computing hardware, telecommunications equipment, and other commercial electronics that demand high-speed and compact memory card connections.

Explore the full range of TE Connectivity connectors and other electronic components available through EnvMart for your next industrial or commercial project.
