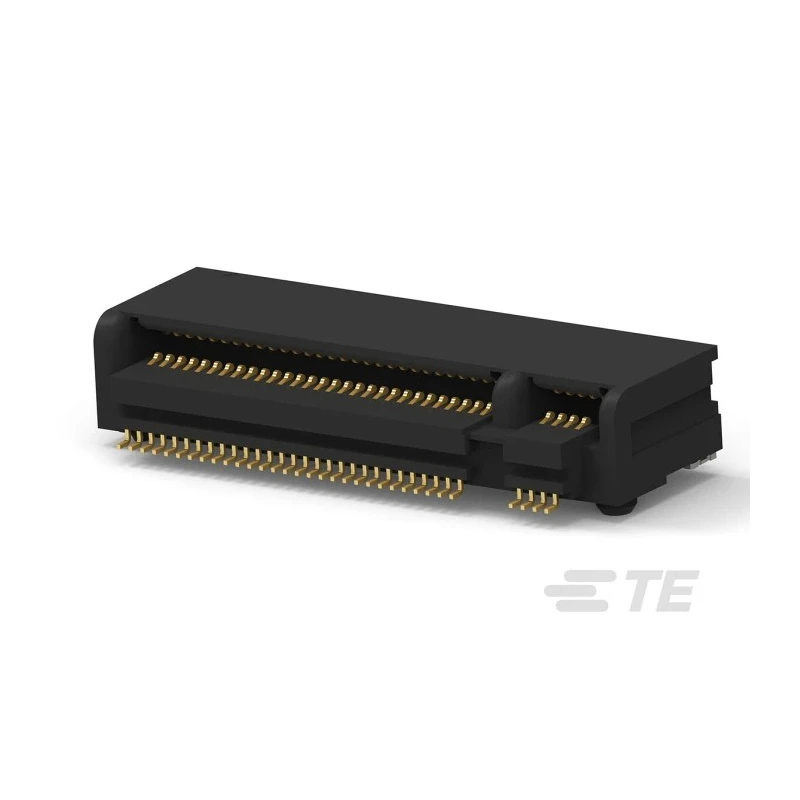

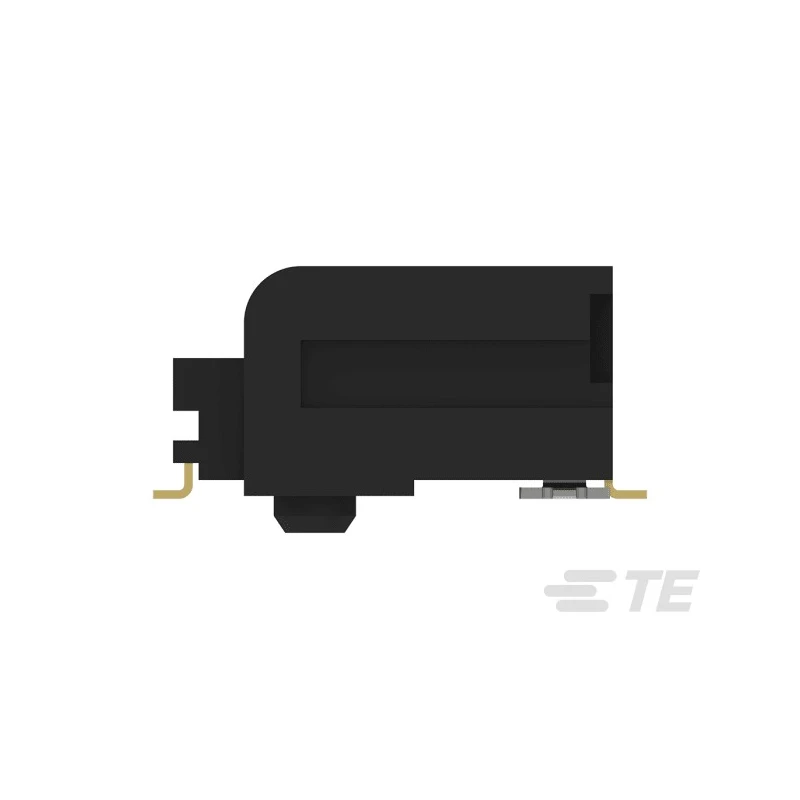

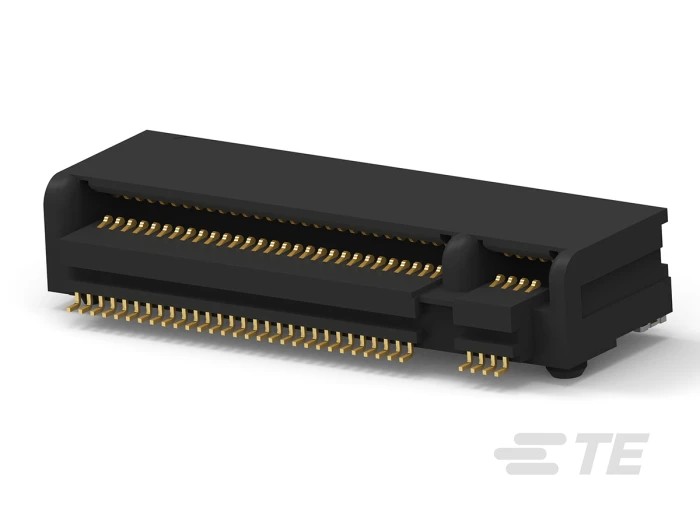

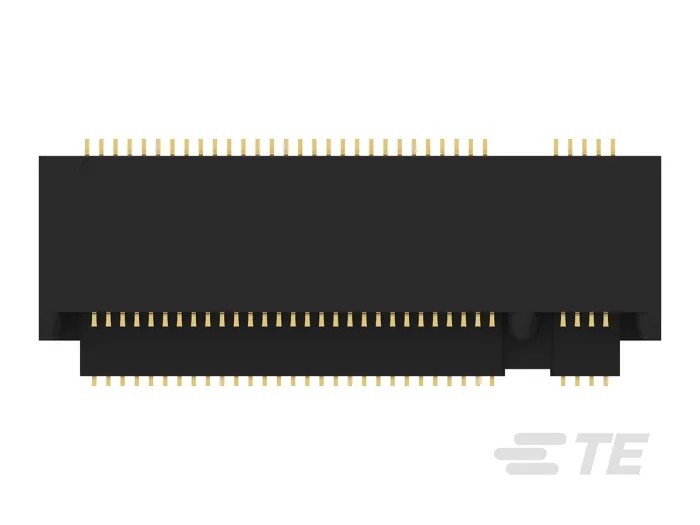

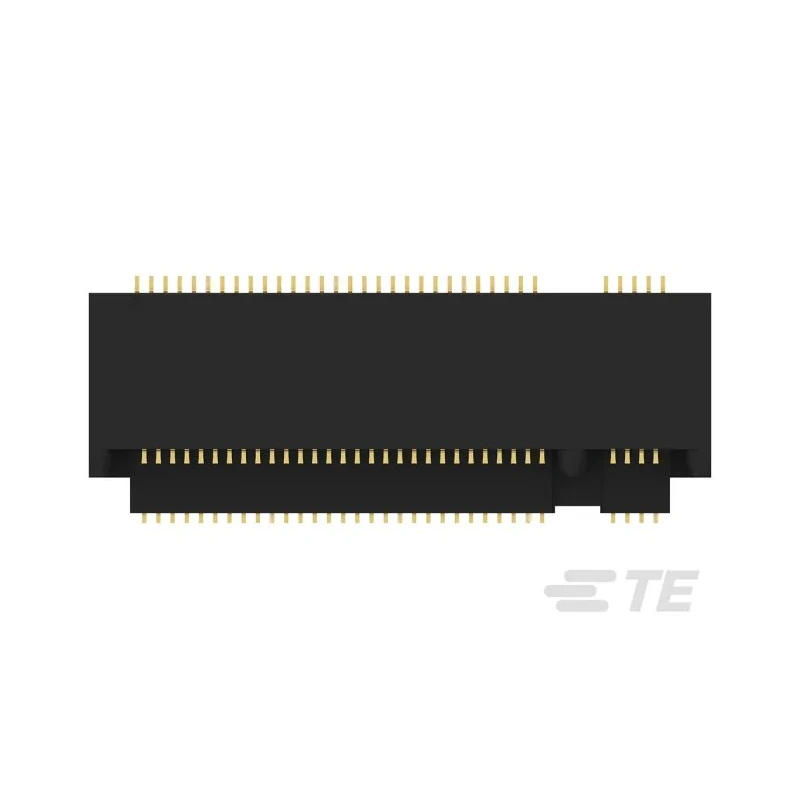

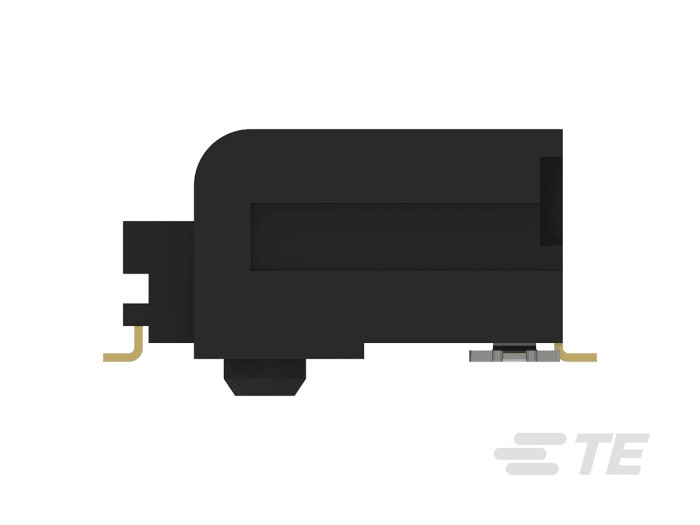

TE Connectivity 67 Way Right Angle Edge Memory Card Connector, Surface Mount, Solder Termination 1-2199230-6

TE Connectivity 1-2199230-6 67 Way Right Angle Edge Memory Card Connector is a precision-designed electronic connector intended for surface-mount solder termination. The connector features 67 female contacts organized in two rows with a fine 0.5mm pitch, offering high-density interconnect solutions for space-constrained applications.

Constructed with a durable thermoplastic housing and copper alloy contacts plated with gold, it offers superior electrical conductivity and corrosion resistance. The right angle orientation helps reduce connector height by 15% while optimizing PCB real estate utilization, offering more compact device designs.

This edge connector supports PCI Express 3.0, USB 3.0, and SATA 3.0 interfaces, enabling high-speed data transmission suitable for devices requiring rapid SSD communication and other high throughput applications. The connector is compatible with both single and double-sided module cards and is supplied in multiple heights and keying options to ensure correct module mating.

The operating temperature range from -40°C to 80°C makes this connector reliable for industrial, commercial, and consumer electronics including notebooks, ultrabooks, desktops, tablets, servers, portable gaming devices, and portable mobile devices requiring solid and efficient memory card connections.

67 contact positions with 2 rows and 0.5mm pitch. Right angle surface mount solder termination. Copper alloy contacts with gold plating for durability and performance. Thermoplastic housing for lightweight and robust design.

Supports USB 3.0, PCI Express 3.0, SATA 3.0 high-speed interfaces. Designed to save PCB space and reduce connector height. Suitable for a variety of computing and mobile device applications. Explore more electronic connector solutions in the Electronics Components category at EnvMart to find compatible parts and accessories for your design requirements.
