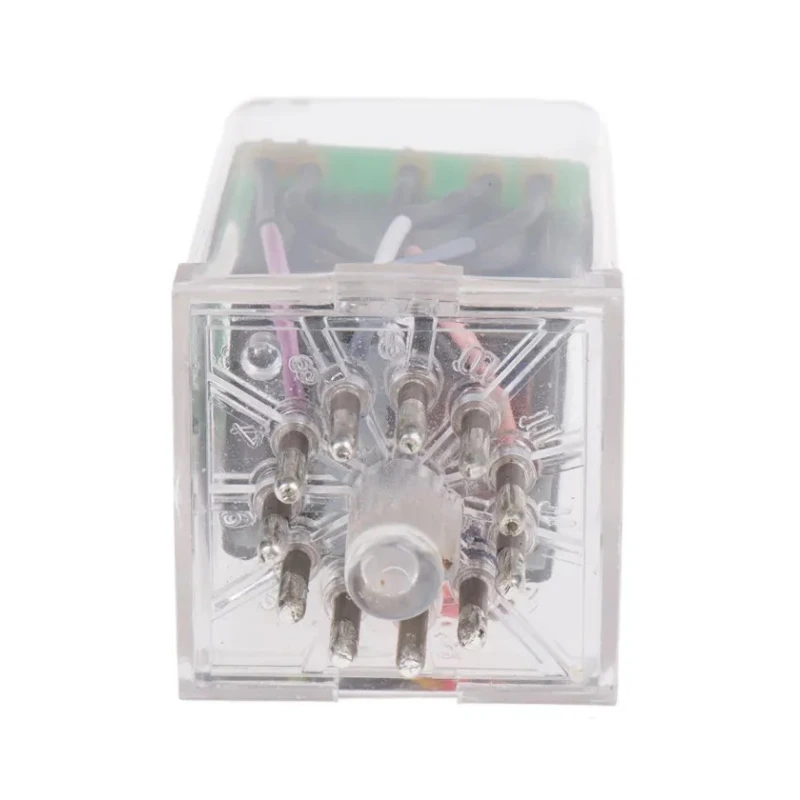

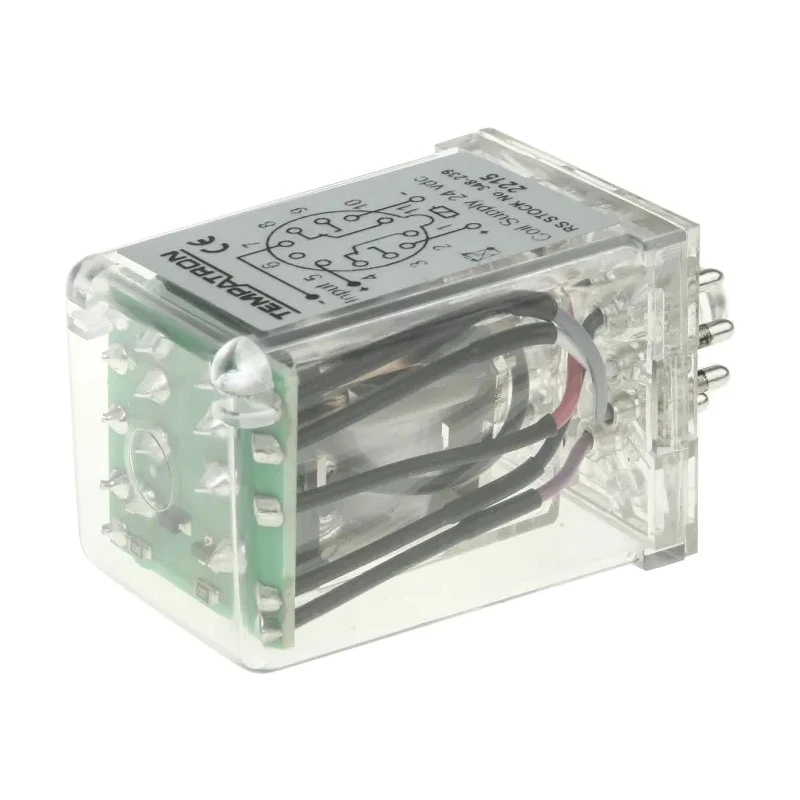

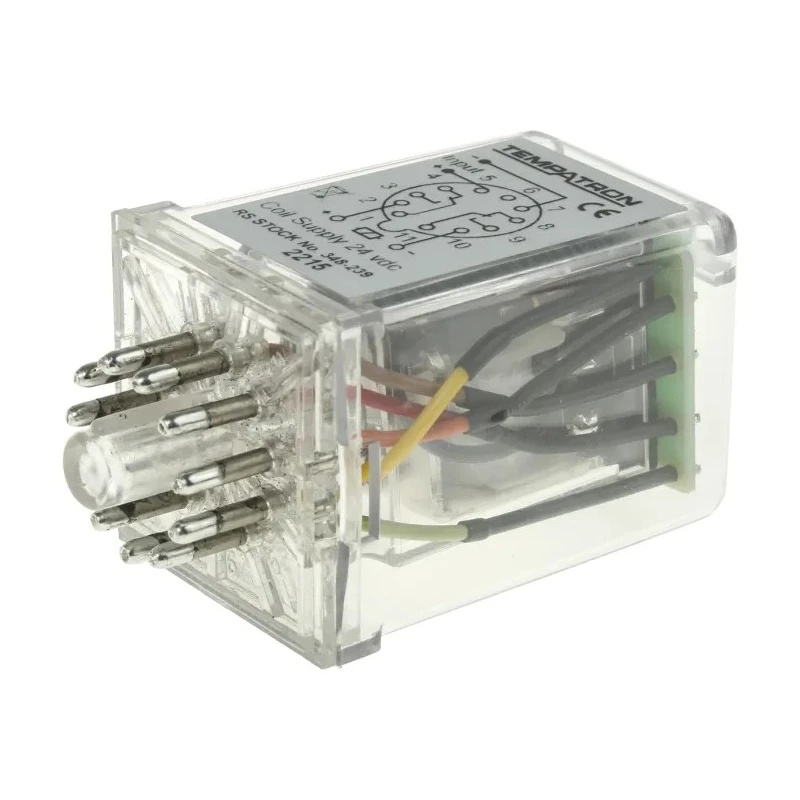

Tempatron Power Relay 24V DC Coil 7A Switching Current DPDT HSR-24VDC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 54mm |
| Length | 36mm |
| Model | HSR-24VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | HSR |
| Maximum Operating Temperature | 50°C |

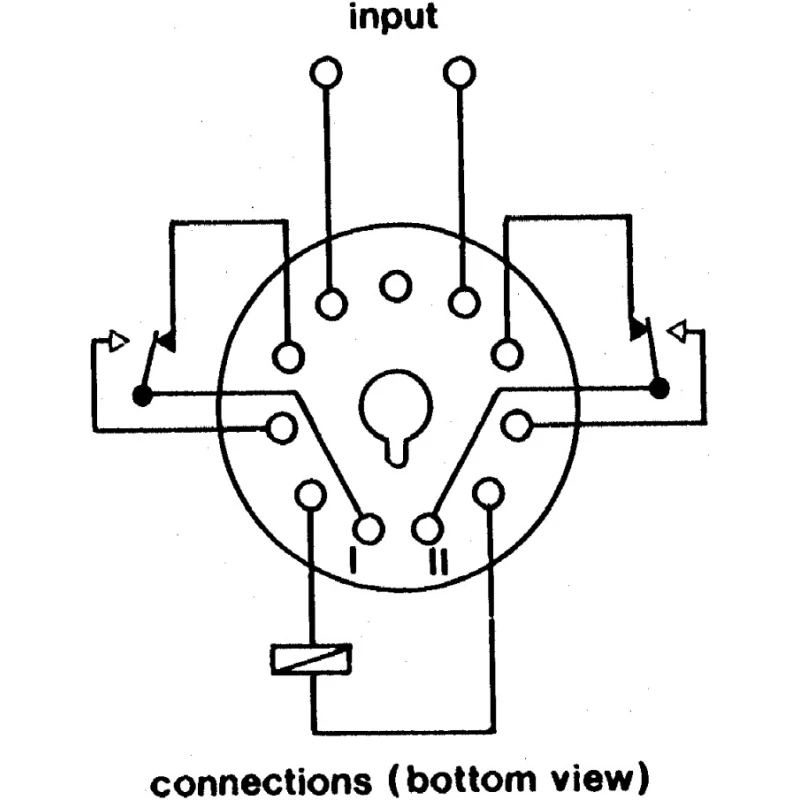

| Contact Configuration | DPDT |
| Minimum Operating Temperature | 0°C |
| Switching Current | 7A |
| Terminal type | Solder |
| Standards/Approvals | CE marked (meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives) |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V ac |
| Wide Input Voltage Range | 3.5V to 50V |
| TRANSISTORISED RELAYBrand | Engel & Gibbs |
Key Features
- Utilizes a transistorised high-sensitivity relay design for reliable operation.

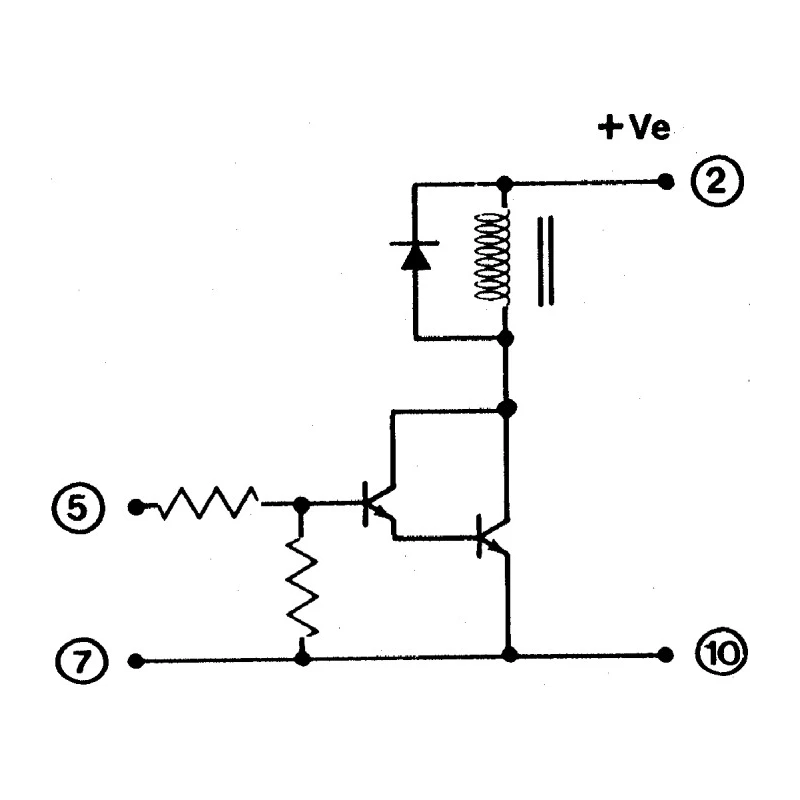

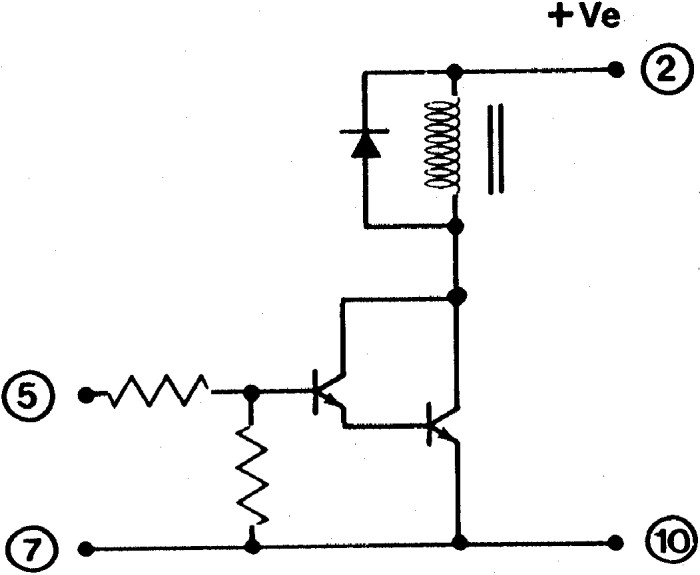

- Equipped with Darlington pair input circuitry suitable for CMOS devices.
- Wide input voltage range from 3.5V to 50V allows versatile applications.
- Contact material is high-quality silver alloy for durable conductivity.
- Terminal type is solder, ensuring secure connections.
- Switching DC voltage rating of 30V DC and AC voltage rating of 240V AC.
- Operating temperature range from 0°C to 50°C for varied environments.
- Compliant with CE standards including EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
Product Description
Tempatron HSR-24VDC Power Relay is a high-performance power relay featuring a 24V DC coil and a double-pole double-throw (DPDT) contact configuration. Designed with a transistorised high-sensitivity approach and Darlington pair input circuitry, it offers excellent sensitivity and is ideal for interfacing with CMOS devices.
This relay supports a wide input voltage range from 3.5V to 50V, providing operational flexibility for various automation and control applications. The contact material is crafted from silver alloy to ensure superior conductivity and longevity under switching loads.
It is rated for switching currents up to 7A with a switching DC voltage max of 30V and AC voltage max of 240V, suitable for efficient power relay operations in industrial, electrical, and automation systems. The relay employs solder terminals to guarantee reliable connections on printed circuit boards.
Compact in size with dimensions 36mm in length, 36mm width, and 54mm height, this product integrates seamlessly into space-constrained applications. It operates reliably within a temperature range of 0°C to 50°C, supporting use in typical industrial environments.
The HSR-24VDC relay meets CE certifications complying with EN61010-1 low voltage and EN50081-1/50082-1 EMC directives, ensuring safety and electromagnetic compatibility. Additionally, it holds UL recognition and CSA certification, underscoring its adherence to stringent quality and safety standards.
Transistorised high-sensitivity relay with Darlington pair input circuitry. Wide input voltage range between 3.5V to 50V for versatile use. Silver alloy contact material guarantees durable conductivity. Rated switching current of 7A with 30V DC and 240V AC switching voltage.
Solder terminal type for secure PCB mounting. Compact dimensions: 36mm (L) x 36mm (W) x 54mm (H). Operates in temperatures from 0°C to 50°C. CE marked to meet EN61010-1 and EMC directives. UL recognized and CSA certified for enhanced safety compliance.
Used extensively in industrial automation, electrical control systems, HVAC equipment, and manufacturing process controls, the Tempatron HSR-24VDC Power Relay delivers reliable switching performance. Its robust build and certifications make it suitable for demanding environments requiring dependable operation.
Explore more Power Relays and automation components at EnvMart to find solutions tailored to your industrial and electrical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this power relay is 7A.
The coil voltage for the Tempatron HSR-24VDC is 24V DC.
This relay has dimensions of 36mm in length, 36mm in width, and 54mm in height.
The contact configuration of this relay is double-pole double-throw (DPDT).
The maximum switching DC voltage is 30V, while the maximum switching AC voltage is 240V.
The operating temperature range for the HSR-24VDC is from 0°C to 50°C.
This model uses solder terminals for secure connections.
The input voltage range for this relay is from 3.5V to 50V.
The contact material is high-quality silver alloy, ensuring durable conductivity.
This relay is CE marked and complies with EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
This power relay is used extensively in industrial automation, electrical control systems, HVAC equipment, and manufacturing process controls.
The Tempatron HSR-24VDC power relay is manufactured in the United Kingdom.
