| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 380μm |
| Length | 1mm |
| Model | NCP115AMX180TCG |
| Width | 1mm |
| Mount Type | Surface |
| Series | NCP115AM |
| Maximum Operating Temperature | 150°C |
| Package Type | XDFN |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 95μA |
| Minimum Input Voltage | 1.7V |
| Pin Count | 4 |
| Operating input voltage range | 1.7 V to 5.5 V |
| Low Dropout | 250 mV Typical at 300 mA @ 2.8 V |
| Available in Fixed Voltage Options | 0.8 V to 3.6 V |
onsemi NCP115AMX180TCG is a high-performance voltage regulator designed for efficient power management in electronic devices. This surface-mount voltage regulator operates with an input voltage range of 1.7 V to 5.5 V and delivers fixed voltage output with options from 0.8 V up to 3.6 V. Its low dropout voltage of 250 mV typical at 300 mA ensures efficient operation even under low voltage differentials.
The device features thermal shutdown and current limit protections, enhancing the reliability of circuits in automotive and industrial applications. Quiescent current is notably low at approximately 50 to 95 μA, which makes this regulator ideal for battery-powered and portable devices.

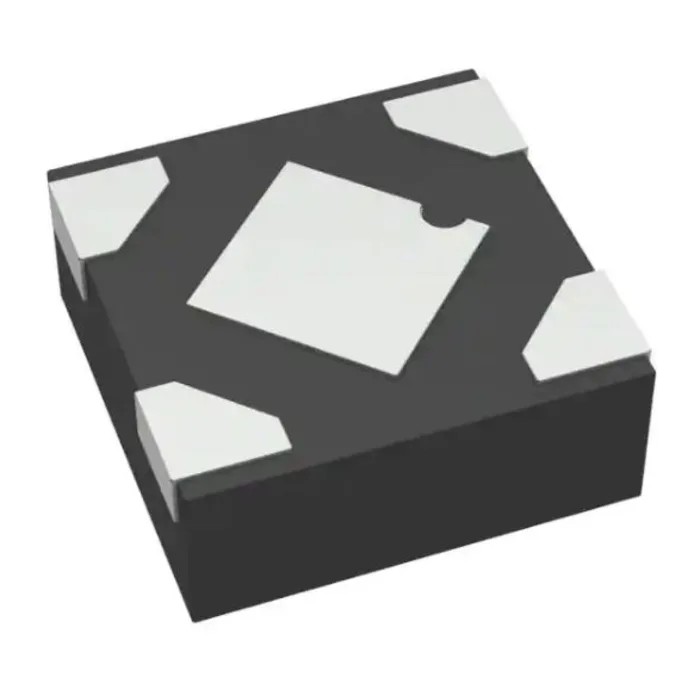

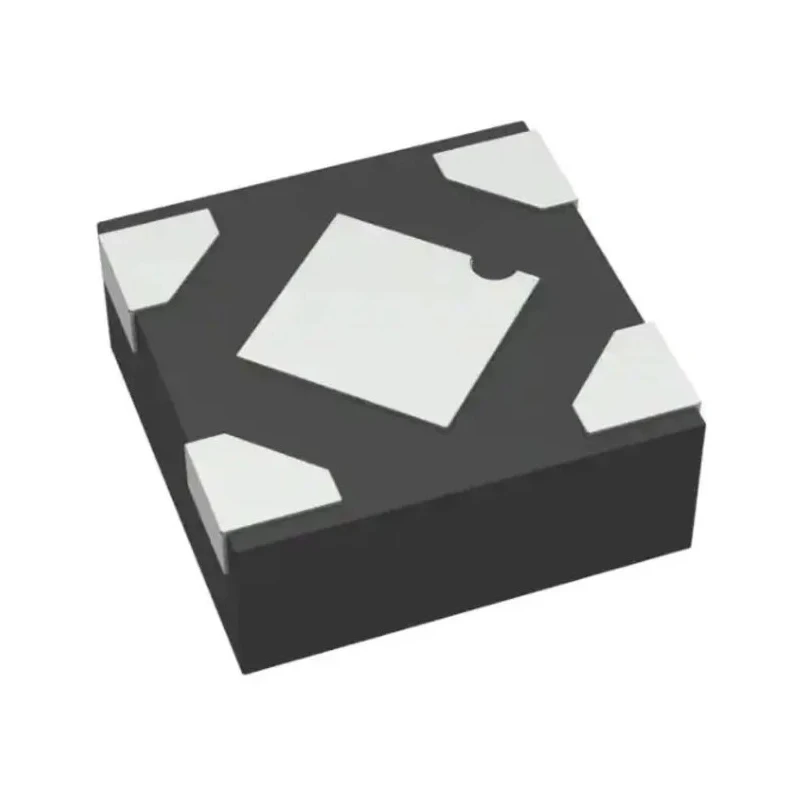

Packaged in a compact XDFN4 1.0 x 1.0 mm package, it is well-suited for space-constrained applications such as smartphones, tablets, IoT sensors, and wireless handsets. The device offers high power supply rejection ratio (PSRR) at 70 dB at 1 kHz, reducing noise sensitivity and improving performance stability in sensitive applications.
Typical applications include touchscreen controller power supplies, wireless module power sources, camera supply modules, and low power MCU and FPGA supply lines. The precise output voltage accuracy of ±1% at 25 °C enhances power-sensitive circuit performance.
Operates from 1.7 V to 5.5 V input voltage range. Available fixed output voltages between 0.8 V and 3.6 V. Low dropout voltage of typically 250 mV at 300 mA load. Thermal shutdown and current limit protections. Low quiescent current ideal for battery-powered devices.
High PSRR of 70 dB at 1 kHz frequency. Compact XDFN4 1.0 x 1.0 mm surface mount package. Output voltage accuracy ±1% typical at 25 °C.
This robust voltage regulator supports industrial, consumer electronics, and IoT manufacturing needs with its reliable design and versatile power management capabilities. Suitable for applications in smart home sensors, factory automation nodes, and other portable electronics.
