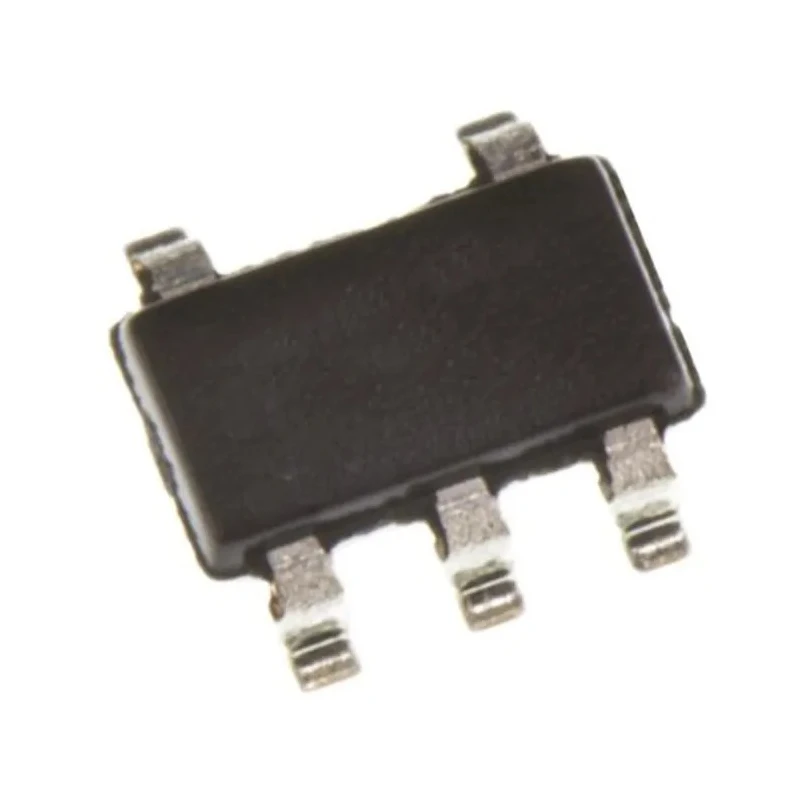

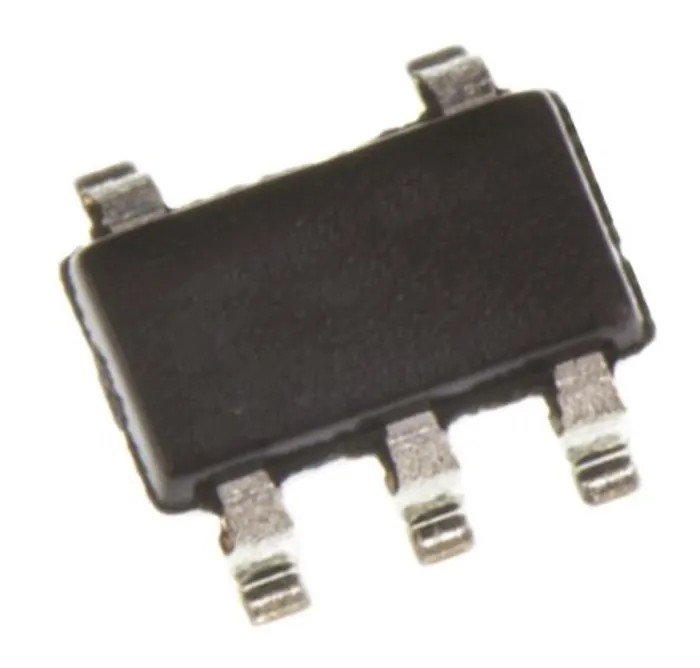

onsemi Voltage Regulator 24V TSOT-23 5-Pin NCP718ASN250T1G

onsemi NCP718ASN250T1G is a voltage regulator designed for industrial and industrial-grade electronic power management applications. Featuring an ultra-low quiescent current of typically 4 μA over temperature, it operates efficiently across a broad input voltage range of 2.5 V to 24 V. The device is packaged in a compact TSOT-23 5-pin surface mount form factor, measuring 2.9 mm in length, 1.6 mm in width, and 900 μm in height, enabling space-saving PCB designs.

This regulator offers both adjustable and fixed output voltage options ranging from 1.2 V to 5 V, making it adaptable to various power supply requirements. It provides high power supply rejection ratio (PSRR) of 60 dB at 1 kHz, minimizing output noise and ensuring stable voltage output for noise-sensitive circuitry. The device features soft-start capability to reduce inrush current and overshoot during startup, protecting downstream components.

Designed to meet the AEC-Q100 automotive standard, the NCP718ASN250T1G is robust and reliable for automotive electronics and other demanding industrial environments with a maximum operating temperature of 150°C. It is stable with a 1 μF output capacitor, allowing for cost-effective external component selection and reliable system performance.

This Voltage Regulator is well-suited for powering microcontroller units (MCUs), wireless routers, industrial smart meters, communication systems, battery-powered devices, sensor systems, wearable electronics, and medical equipment. Its low noise, wide operating voltage range, and efficiency make it ideal for power-sensitive and noise-sensitive applications in telecommunications, industrial controls, and consumer electronics.

Operates on input voltage range from 2.5 V to 24 V. Ultra-low quiescent current typically 4 μA for power efficiency. High PSRR of 60 dB at 1 kHz reduces output noise. Soft-start feature lowers inrush current and overshoot.

Compact TSOT-23 5-pin surface mount package. Maximum operating temperature of 150°C ensures durability. AEC-Q100 compliant for automotive use. Stable with 1 μF output capacitor for cost-effective design. Adjustable/fixed output voltage from 1.2 V to 5 V.

Application includes MCU power, wireless routers, smart meters, industrial and medical equipment.

For demanding industrial power management needs, the onsemi NCP718ASN250T1G offers reliable, low-noise voltage regulation in a compact footprint. Browse the Power Management ICs category on EnvMart for more high-performance semiconductor solutions.
