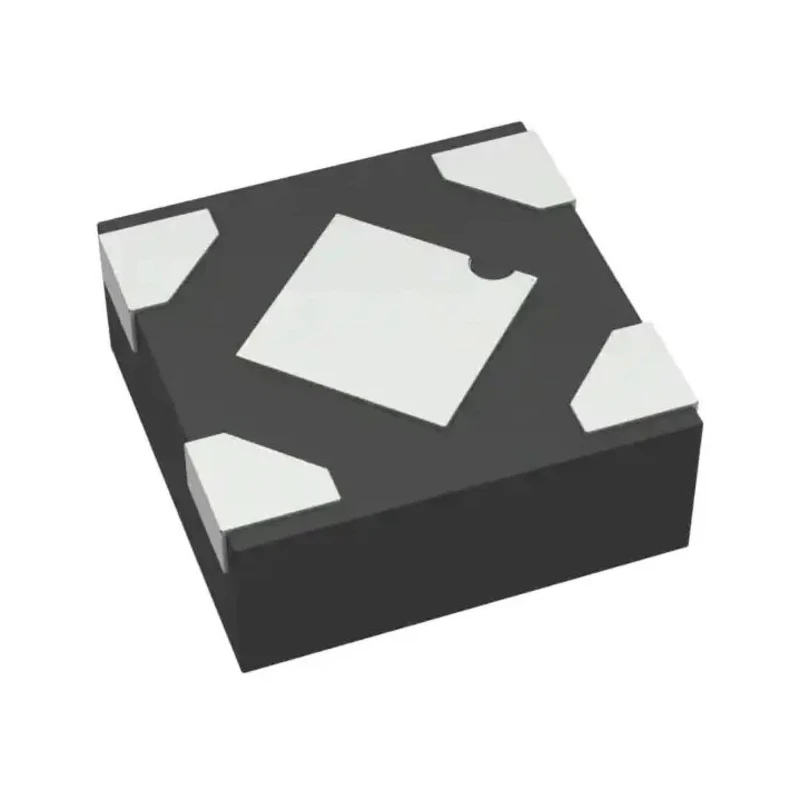

onsemi Voltage Regulator 5.5V XDFN 4-Pin NCP167AMX330TBG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | onsemi |
| Height | 380μm |
| Length | 1mm |
| Model | NCP167AMX330TBG |
| Width | 1mm |
| Mount Type | Surface |
| Series | NCP167 |
| Maximum Operating Temperature | 150°C |
| Package Type | XDFN |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 18μA |
| Minimum Input Voltage | 1.9V |
| Pin Count | 4 |
Key Features
- Capable of supplying up to 700 mA output current.
- Provides ultra-high power supply rejection ratio of 85 dB at 1 kHz.
- Operates with an input voltage range from 1.9 V to 5.5 V.
- Features ultra-low output noise of 8.5 µVRMS and low quiescent current of 12 µA.
- Available in compact XDFN 4-pin package with 1 mm x 1 mm dimensions.
- Designed for noise-sensitive and power-sensitive applications such as Wi-Fi modules.
- Very low dropout voltage of 210 mV at 700 mA load.
- Supports efficient operation during light load conditions.
Product Description
The onsemi NCP167AMX330TBG is a high-performance low dropout (LDO) voltage regulator designed to provide a stable 5.5 V output with ultra-low noise and high power supply rejection ratio (PSRR). This 4-pin XDFN package device is optimized for RF and analog circuit applications, featuring a compact footprint of 1 mm x 1 mm and a low profile height of 380 µm.
It supports an input voltage range from 1.9 V to 5.5 V and can supply up to 700 mA of output current, making it ideal for power-sensitive and noise-sensitive equipment such as Wi-Fi modules, audio codecs, camera modules, RF modules, and battery-powered devices. The device's low quiescent current of 12 µA contributes to extended battery life. Additionally, the regulator maintains excellent transient response and low dropout voltage of 210 mV at maximum load.
The NCP167AMX330TBG is also designed for efficiency during light load conditions and fits well in applications constrained by space due to its ultra-small package. Capable of supplying up to 700 mA output current. Ultra-high PSRR of 85 dB at 1 kHz and 63 dB at 100 kHz.
Ultra-low output noise of 8.5 µVRMS. Low quiescent current of 12 μA. Wide operating input voltage range from 1.9 V to 5.5 V. Low dropout voltage of 210 mV at 700 mA. Compact 1 mm x 1 mm XDFN 4-pin package. Suitable for battery powered and noise sensitive applications.
Common uses include power supply regulation for A/D and D/A converters, audio codecs, camera and RF modules, smartphones, and wireless routers. This device is ideal for industrial, telecommunications, consumer electronics, and battery-powered equipment applications.
Explore more Voltage Regulators and power management ICs on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can supply up to 700 mA of output current.
The input voltage range is from 1.9 V to 5.5 V.
The quiescent current is 12 µA.
It has a low dropout voltage of 210 mV at a load of 700 mA.
The dimensions of the XDFN package are 1 mm x 1 mm with a height of 380 µm.
It features an ultra-high PSRR of 85 dB at 1 kHz.
It is designed for power-sensitive and noise-sensitive applications such as Wi-Fi modules, audio codecs, and RF modules.
The maximum operating temperature is 150°C.
This voltage regulator has a positive polarity.
It is designed for surface mounting.
It has an ultra-low output noise of 8.5 µVRMS.
This model has a pin count of 4.
