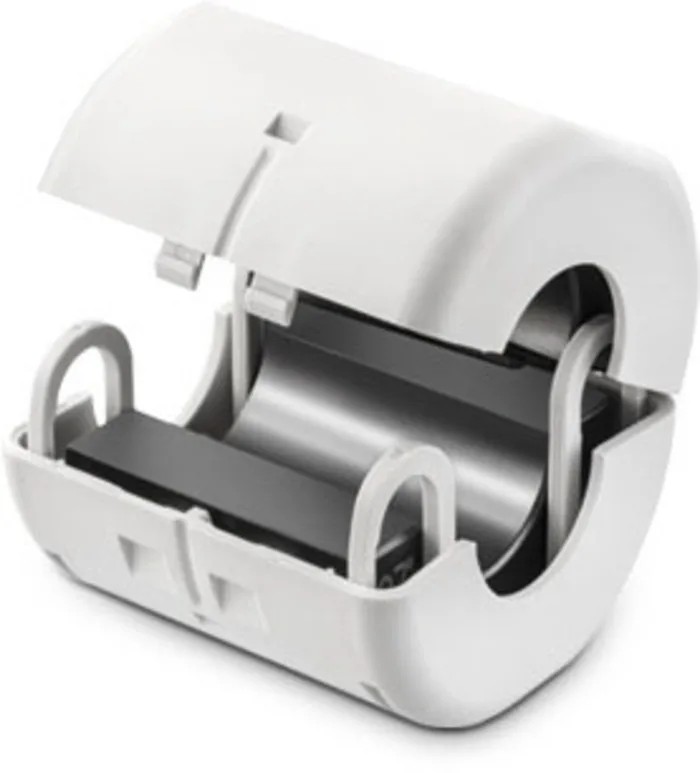

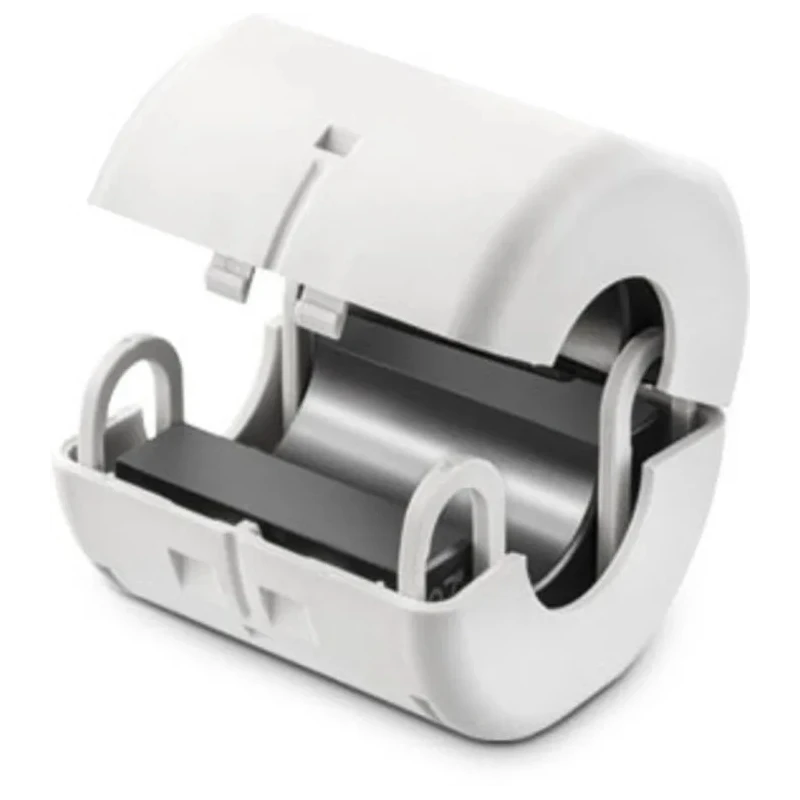

Wurth Elektronik Snap Ferrite Sleeve STAR-TEC Series Openable Diameter 7.5 mm Aperture 1, Key 40 mm x 20 mm x 24 mm 74272131
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Wurth Elektronik |
| Material | Manganese Zinc |
| Operating Temperature | - 25 °C to +105 °C |
| Model | 74272131 |
| Series | STAR-TEC |
| Aperture diameter | 7.5mm |
| Sub Type | Snap Ferrite |
| Core Material | MnZn |
| External Width | 24mm |
| External Depth | 40mm |
| External Height | 20mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 100 MHz | 100Ω |
| Impedance at 25 MHz | 28Ω |
| Number of Apertures | 1 |
| Wurth Elektronik Openable, Diameter 7.5 mm Ferrite Sleeve, Apertures | 1 Key 40 mm 20 mm 24 mm |
Key Features
- Constructed from manganese zinc material ensuring excellent impedance characteristics.
- Aperture diameter of 7.5 mm with one key and external dimensions of 40 mm depth, 20 mm height, and 24 mm width.
- Features patented STAR-TEC key technology providing internal security and preventing unauthorized removal.
- Designed to operate in temperatures from -25 °C to +105 °C.
- High impedance of 28Ω at 25 MHz and 100Ω at 100 MHz for effective EMI filtering.
- Reusable and ideal for applications in low frequency ranges from 300 kHz to 30 MHz.
- Suitable for test, measuring purposes, and for cables with difficult access.
- Complies with REACH and RoHS standards ensuring environmental and safety compliance.
Product Description
Wurth Elektronik 74272131 snap ferrite sleeve from the STAR-TEC series features a diameter of 7.5 mm and is designed specifically for EMI suppression in electronic components and cable assemblies.
Made from manganese zinc (MnZn) core material, this ferrite sleeve offers impedance values of 28Ω at 25 MHz and 100Ω at 100 MHz, providing effective noise attenuation in low frequency ranges between 300 kHz and 30 MHz.
The product incorporates a patented internal security locking system with a STAR-TEC key that prevents unauthorized removal, ensuring cable clamping protection and reliability in various industrial and electronic applications.
The openable design and key technology make it reusable and perfect for test and measurement tasks or installations where cables are difficult to access. Its dimensions include 40 mm external depth, 20 mm height, and 24 mm width, suitable for accommodating cables with a 7.5 mm aperture diameter.
This ferrite sleeve operates within a temperature range from -25 °C to +105 °C and meets stringent REACH and RoHS standards, assuring environmental and health safety compliance. Constructed from manganese zinc (MnZn) core material.
Openable design with STAR-TEC patented key technology. High impedance values at key frequencies for EMI suppression. Reusable and suited for cables with varying diameters. Operating temperature range from -25 °C to +105 °C.
Dimensions: Aperture diameter 7.5 mm, external depth 40 mm, height 20 mm, width 24 mm. Suitable for industrial, electronic, and measurement applications. Complies with REACH and RoHS environmental standards. Manufactured in Germany.
Explore a broad selection of Ferrite Sleeves and EMI filters in the Electronics Components category at EnvMart for reliable electrical noise suppression solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this ferrite sleeve is 28Ω at 25 MHz.
It operates within a temperature range from -25 °C to +105 °C.
The external dimensions are 40 mm in depth, 20 mm in height, and 24 mm in width.
The aperture diameter of this ferrite sleeve is 7.5 mm.
It is constructed from manganese zinc (MnZn) material.
At 100 MHz, the impedance is 100Ω.
Yes, it complies with REACH and RoHS standards for environmental and safety compliance.
It features patented STAR-TEC key technology that provides internal security and prevents unauthorized removal.
Yes, it is designed to be reusable, making it suitable for various applications.
It is suitable for test and measuring purposes, especially for cables with difficult access.
This ferrite sleeve is manufactured in Germany.
This model has one aperture.
