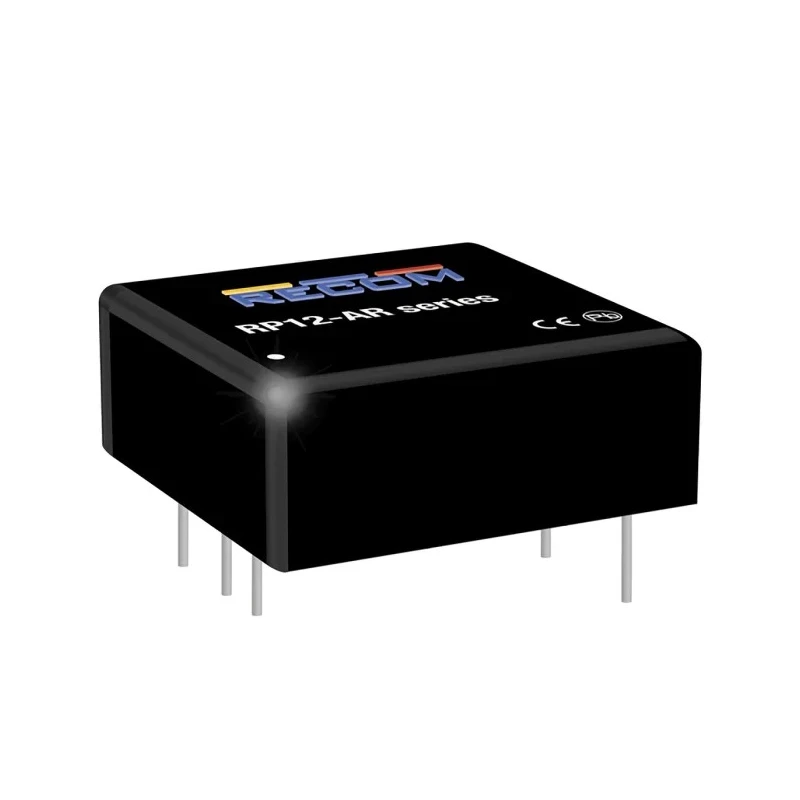

Recom DC/DC Converter, 24V DC Output, 500 mA, 160V DC Max Input, 36V DC Min Input, 12W Through Hole RP12-AR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RP12-AR DC/DC Converter, 24V dc/ 500 mA, 160 |
| Brand | Recom |
| Efficiency | 90% |
| Length | 25.4mm |
| Model | RP12-AR |
| Depth | 9.9mm |
| Gross Weight | 16.5g |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | RP12-AR |
| Maximum Operating Temperature | 100°C |
| Package Type | 1 x 1 in |
| Minimum Operating Temperature | -40°C |
| MTBF | 2090000h |
| Number of outputs | 1 |
| Ripple and Noise | 125mV |
| Maximum Output Power | 12W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | CE, EN50155, EN55032, IEC EN60950-1, RoHS |
| Minimum Input Voltage | 36V |
| Number of Pins | 6 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 3kV dc |
Key Features
- Features a compact 25.4 x 25.4 x 9.9 mm footprint suitable for space-constrained applications.
- Provides high efficiency of 90% ensuring minimal energy loss during voltage conversion.
- Equipped with 3 kV DC isolation voltage for enhanced electrical safety.
- Operates reliably in temperatures from -40°C up to 100°C maximum.
- Includes built-in protection against short circuit, overvoltage, and overload conditions.
- Mean time between failures (MTBF) of 2,090,000 hours for long service life.
- Constructed with a copper case for stable current transmissions and thermal management.
- Single output design with output accuracy of ±1% for precise voltage regulation.
Product Description
Recom RP12-AR DC/DC Converter provides a robust power solution with a 36 to 160V DC input voltage range and a stable 24V DC output at 500 mA, delivering 12 watts of power. With its compact through-hole package measuring 25.4 mm length and width, and 9.9 mm depth, it fits well in industrial, automotive engineering, audiovisual, server room, and laboratory power supply units requiring high reliability and safety.
Designed for demanding electrical environments, this DC/DC converter features a copper case that enhances conductivity and thermal dissipation. It maintains operation over a wide temperature range from -40°C to 100°C. The device ensures electrical isolation of 3 kV DC to protect against hazardous voltage differences. Its high efficiency rating of 90% minimizes wasted energy and reduces heat generation, eliminating the need for additional heatsinks.
The RP12-AR series includes protections against short circuit, overvoltage, and overload conditions, safeguarding connected equipment. With a mean time between failures (MTBF) of approximately 2.09 million hours, it is engineered for long-term dependable service in power supply applications.
This model offers a precise output voltage tolerance of ±1% and a low ripple and noise of 125 mV, guaranteeing stable and clean power delivery. The six-pin through-hole mounting package facilitates easy and secure installation on PCBs designed for power conversion tasks.
Compact through-hole size optimized for tight spaces. Reliable performance in extreme temperature conditions. High isolation voltage increases electrical safety. Robust protections ensure durability and safety of circuits.
Compliance with major industrial safety and environmental standards. Ideal for automotive, industrial electronics, audiovisual systems, and server applications.
This Recom DC/DC converter is manufactured in Taiwan, Province Of China, reflecting quality craftsmanship and performance standards. For comprehensive power management projects, it offers a reliable choice that balances efficiency, size, and ruggedness. Explore related DC/DC Converters in the Recom RP12-AR series and other power supply components available for technical and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum input voltage of 36V DC and a maximum input voltage of 160V DC.
The RP12-AR provides a stable output of 24V DC at 500 mA, delivering a maximum output power of 12 watts.
It features a high efficiency rating of 90%, ensuring minimal energy loss during voltage conversion.
This unit has a compact footprint of 25.4 mm x 25.4 mm x 9.9 mm, making it suitable for space-constrained applications.
The RP12-AR is equipped with built-in protection against short circuit, overvoltage, and overload conditions.
It provides an isolation voltage of 3 kV DC, enhancing electrical safety in operation.
This model operates reliably in temperatures ranging from -40°C to 100°C.
The mean time between failures (MTBF) is approximately 2,090,000 hours, indicating a long service life.
The output ripple and noise is specified at 125 mV, ensuring stable and clean power delivery.
This model features a single output design, providing a straightforward power solution.
It complies with several safety and environmental standards, including CE, EN50155, EN55032, IEC EN60950-1, and RoHS.
This unit uses a through-hole mounting type, facilitating easy installation on PCBs.
