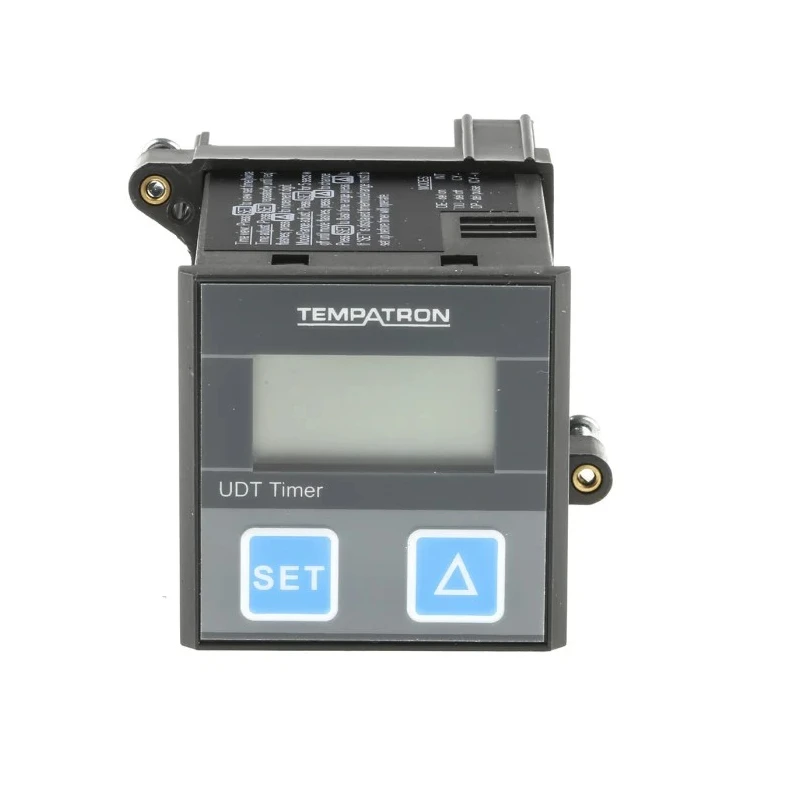

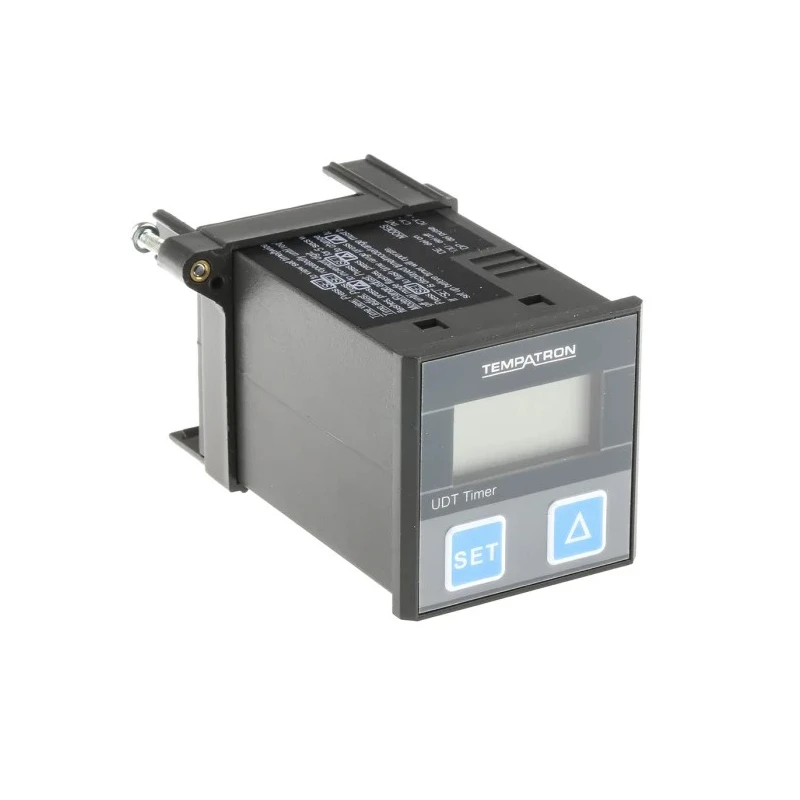

Tempatron Series Multifunction Digital Timer Relay, 1-Contact, 300 V DC, 0.01 to 99.9 Min/Hours/Seconds, 11-Pin Connector UDT

Free Delivery in India | Lowest Global Shipping Charges

Tempatron Series Multifunction Digital Timer Relay, 1-Contact, 300 V DC, 0.01 to 99.9 Min/Hours/Seconds, 11-Pin Connector UDT

Name: Tempatron Series Multifunction Digital Timer Relay, 1-Contact, 300 V DC, 0.01 to 99.9 Min/Hours/Seconds, 11-Pin Connector UDT
Brand: Tempatron
SKU: 157025
Price: 173.35 USD
Availability: InStock



Category Timer Relays Brand Tempatron Condition New

Specifications

Country of Origin	United Kingdom
Brand	Tempatron
Height	89.5mm
Function	Multifunction
Length	48mm
Model	UDT
IP Rating	IP40
Width	48mm
Series	UDT
Maximum Operating Temperature	60°C
Contact Configuration	1 NO/1 NC
Minimum Operating Temperature	-20°C
Terminal type	11-Pin
Standards/Approvals	EN/IEC
Number of Contacts	1
Number of Timer Functions	Multifunction
Contact Current	5A
Supply DC Voltage	300 V dc
Supply AC Voltage	18, 264V ac
SPDT 6 function timer,12-260Vac/dcBrand	Barron

Key Features

Operates on 18V to 264V AC or 18V to 300V DC supply voltages.
Time ranges from 0.01 to 99.9 minutes, hours, and 0.1 to 99.9 seconds for versatile timing functions.
Single pole double throw relay contact with 5A contact current rating.

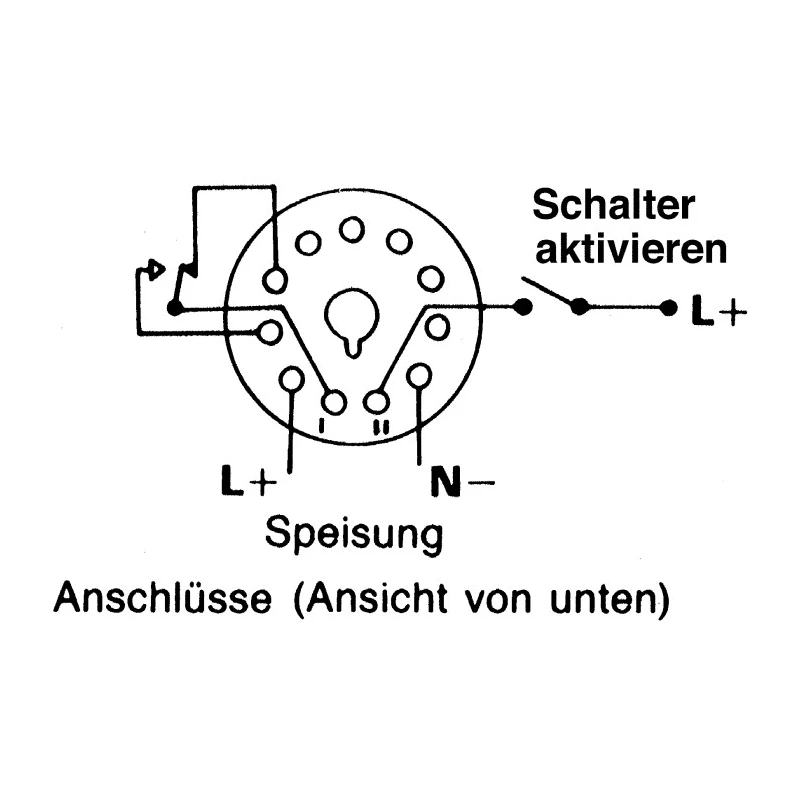

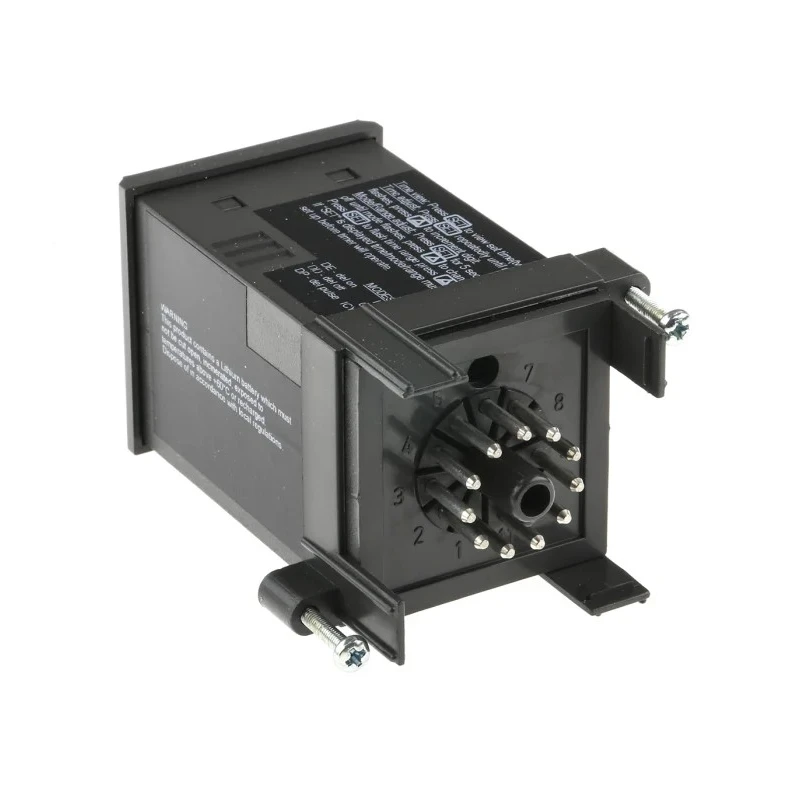

Equipped with an 11-pin connector for easy installation.
Robust operating temperature range from -20°C to 60°C for industrial environments.
IP40 rating ensures protection against solid objects and limited ingress.
Internal lithium battery maintains settings during power failures.
LCD display configurable for count up or count down timing.

Product Description

Tempatron UDT multifunction digital timer relay, model UDT, features a 1-contact SPDT relay capable of precise timing control across multiple time ranges and functions. It operates with a wide input voltage range from 18V to 264V AC or 18V to 300V DC, supporting industrial automation systems and equipment requiring versatile timing solutions.

This timer relay provides time ranges of 0.01 to 99.9 minutes, 0.01 to 99.9 hours, and 0.1 to 99.9 seconds, allowing for exact timing in various industrial processes. The relay contacts are rated for 5A contact current and configured as 1 NO/1 NC, using an 11-pin connector terminal type for reliable connection.

The device includes an internal lithium battery to retain user settings during power loss, enhancing operational reliability. The LCD display can be configured to count up or down, aiding in easy monitoring and control. The device features a delay time of 250ms and maintains an operating temperature range from -20°C to 60°C, suitable for many industrial environments. Its IP40 rating provides protection against solid objects and limited ingress, ensuring durability.

Applications include controlling operations of machinery, equipment, and industrial automation processes that require precise time control and multifunction timer capabilities.

Tempatron UDT timer relay complies with EN/IEC standards and certifications EN 50081-1, EN 50082-1, EN 61010-1, CE certified, EN 50081-2, and EN 6100-6-2, ensuring industrial safety and performance.

Operates on AC/DC supply voltage from 18V to 264V AC or 18V to 300V DC. Multifunction timer with six timing operations and broad timing ranges. Durable 11-pin connector type for secure mounting. Internal lithium battery preserves programming through power interruptions.

Rated for 5A contact current with 1 NO/1 NC contact configuration. Wide operating temperature range for diverse industrial conditions. LCD configurable for up/down count display for ease of monitoring. Explore EnvMart for a wide range of industrial Timer Relays and automation components from trusted brands like Tempatron.
