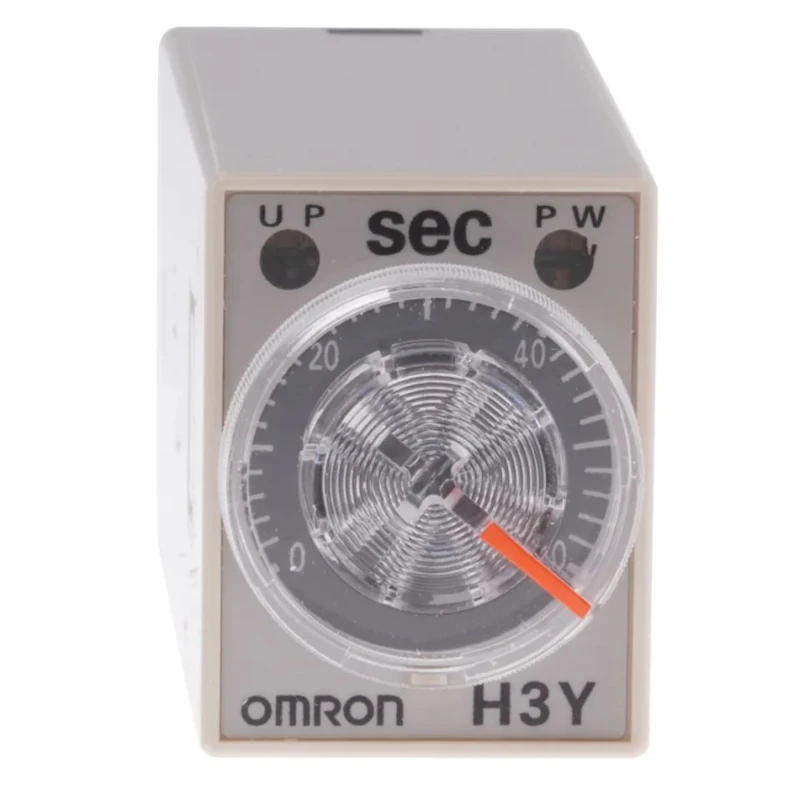

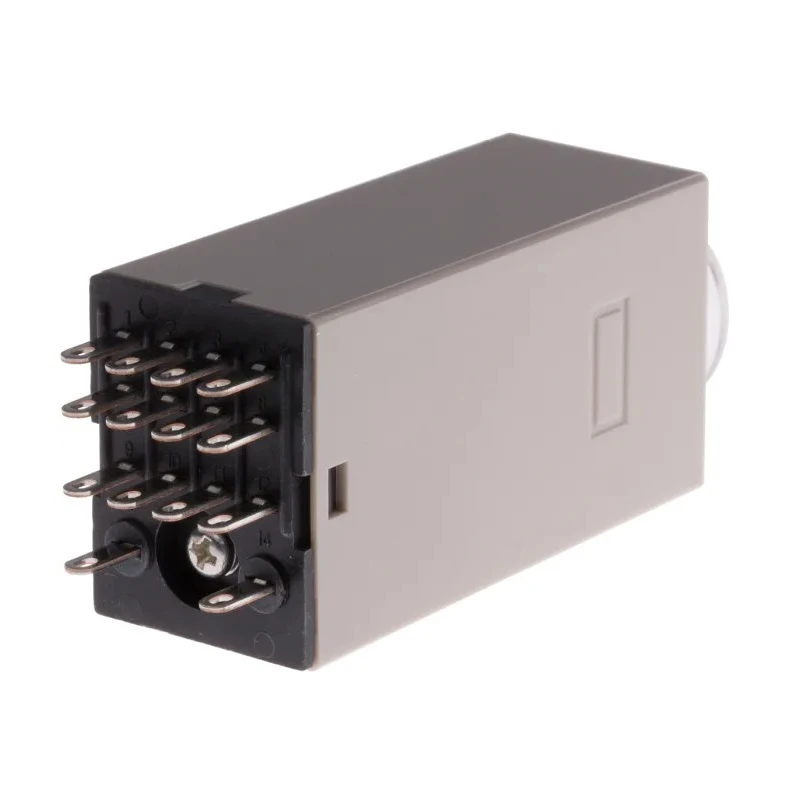

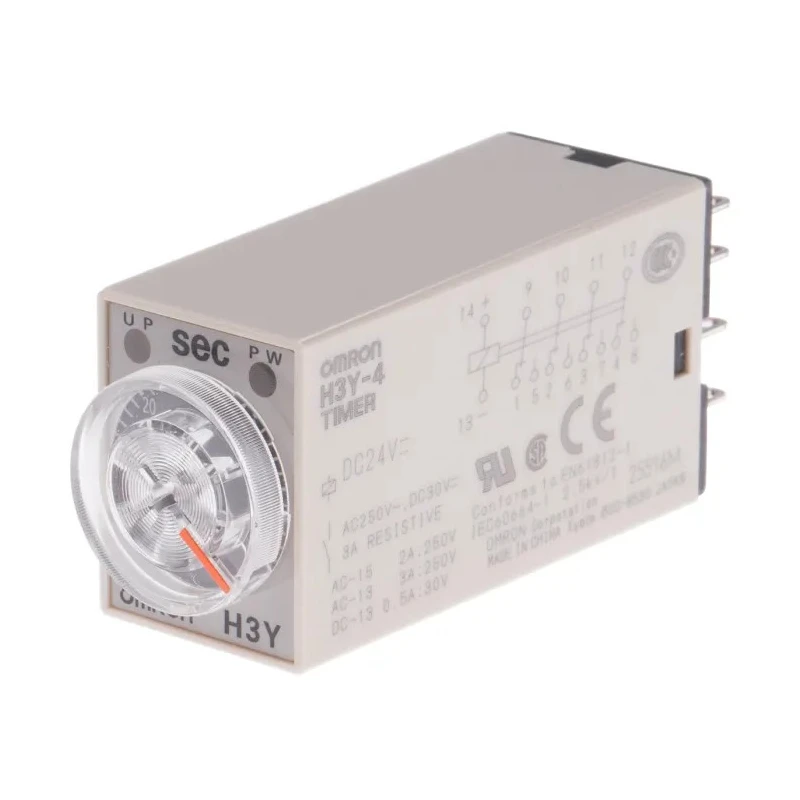

Omron H3Y-4 Series DIN Rail Surface Mount Timer Relay 24 V AC/DC 2 to 60 s ON Delay 4PDT Switch H3Y-4 DC24 60S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Function | Swedish Pipe, Multifunction, ON Delay |
| Length | 28mm |
| Model | H3Y-4 DC24 60S |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 21.5mm |
| Mount Type | DIN Rail, Surface Mount |
| Series | H3Y-4 |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 2 to 60 s |
| Terminal type | Plug-In |
| Number of Contacts | 4 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 24 V |
| Supply AC Voltage | 24V ac |
| Standards/Approvals UL 508, s to EN 61812-1 and IEC 60664-1, CCC | GB/T 14048.5, Lloyds, CSA C22.2 No. 14 |
| 4PDT on delay timer,1-60sec 24VdcBrand | NEUTRAL |
Key Features
- Equipped with 4PDT contact configuration for simultaneous multi-circuit switching.
- Compatible with 24 V AC/DC supply voltage for versatile power options.
- Supports switching voltages up to 250 V AC and contact current of 5 A.
- DIN rail and surface mount design allows easy panel integration with plug-in terminals.
- Operates reliably within a temperature range of -10°C to 50°C.
- IP40 enclosure rating for protection in indoor panel environments.
- Complies with UL 508, EN 61812-1, IEC 60664-1, and CSA C22.2 No. 14 standards.
- Ideal for sequential motor start, timed lighting, interlocking, and process delay.
Product Description
Omron H3Y-4 DC24 60S Series Timer Relay is a DIN rail and surface mount device that offers precise ON Delay timing from 2 to 60 seconds, making it essential for industrial control and automation panels. Operating on 24 V AC/DC power supplies, this timer relay ensures reliable switching for sequential control tasks requiring time-delayed engagement.
The unit features a robust 4PDT contact configuration enabling simultaneous control of multiple circuits, with a maximum switching voltage rating of 250 V AC and a contact current capacity of 5 A, suitable for moderate-load industrial circuits. Its plug-in terminal design facilitates easy installation and replacement within control racks.
The H3Y-4 maintains operational integrity within an ambient temperature range of -10°C to 50°C and boasts an IP40 enclosure rating that safeguards against dust ingress in indoor environments. It complies with key industrial standards including UL 508, EN 61812-1, IEC 60664-1, and CSA C22.2 No. 14, underscoring its reliability and safety for industrial applications.
Typical applications include sequential motor-start control in automation panels, timed lighting circuits in control cabinets, interlock timing in electrical distribution systems, and process-delay functions in manufacturing equipment. Its versatility and secure mounting make it a preferred choice for panel-based timers in electrical and industrial automation systems.
Equipped with 4PDT contact configuration for multi-circuit switching capabilities. 24 V AC/DC supply voltage compatibility enhances installation flexibility. Durable plug-in terminals enable quick mounting on DIN rails or surface panels.
Time range adjustable from 2 to 60 seconds for precise delay control. Operating temperature between -10°C and 50°C ensures reliable functionality. Protection grade of IP40 suitable for indoor panel environments. Conforms to international standards for industrial safety and performance.
Contact current rated at 5 A suitable for moderate-load circuits. Explore our comprehensive range of Timer Relays and Omron products for advanced automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ON delay function of this timer relay can be adjusted from 2 to 60 seconds.
It supports a maximum switching voltage of 250 V AC.
This model features a 4PDT contact configuration, allowing for simultaneous multi-circuit switching.
It operates on a supply voltage of 24 V AC or DC, providing versatile power options.
The contact current capacity is rated at 5 A, suitable for moderate-load industrial circuits.
It operates reliably within a temperature range of -10°C to 50°C.
The unit has an IP40 enclosure rating, providing protection against dust ingress in indoor environments.
It can be mounted on DIN rails or surface-mounted, offering flexibility in installation.
It complies with UL 508, EN 61812-1, IEC 60664-1, and CSA C22.2 No. 14 standards.
It features plug-in terminals that facilitate easy installation and replacement.
This model has a total of 4 contacts.
Typical applications include sequential motor start control, timed lighting circuits, interlock timing, and process delay functions.
