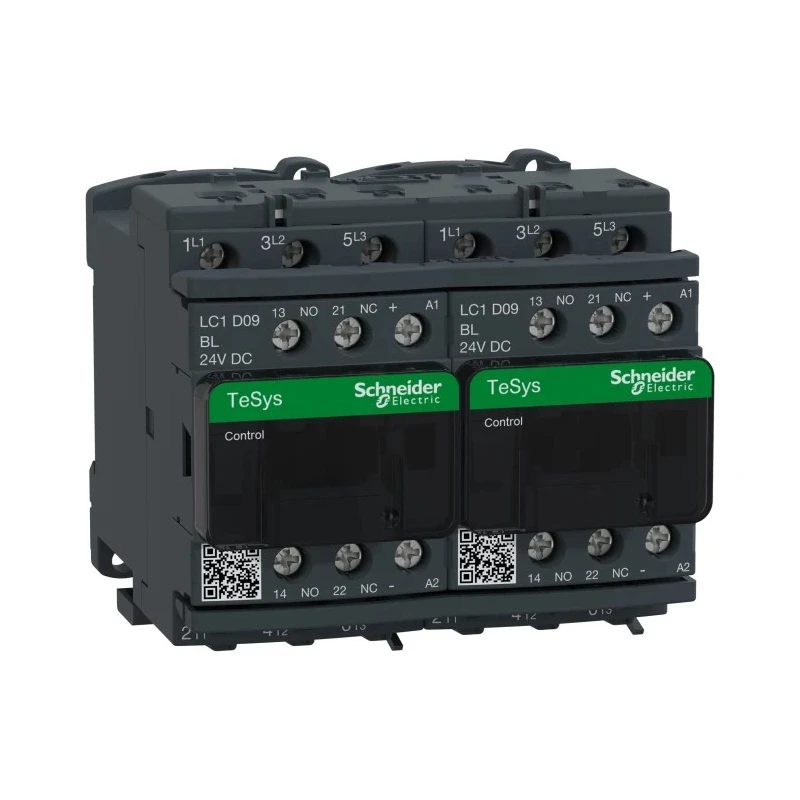

Schneider Electric TeSys D Reversing Contactor 24V DC Coil 3-Pole 9A 5.5kW 3 NO 690V AC LC2D09BLV

Schneider Electric LC2D09BLV is a high reliability TeSys D reversing contactor featuring a 24V DC coil and 3-pole configuration suitable for motor control applications up to 9A and 690V AC. It supports resistive load and motor control with a power rating of 5.5 kW, ensuring efficient switching and operation in industrial and commercial environments.

This reversing contactor includes 3 normally open contacts (3 NO) and comes with 2 auxiliary contacts configured as 1 normally open and 1 normally closed, providing extended switching capabilities for complex control circuits. The low power coil is equipped with a transient suppressor module enhancing coil longevity under electrical stress.

The product's compact dimensions (90mm width, 77mm length, 95mm depth) allow DIN rail mounting or screw fixing for flexible integration. The contactor is designed for operating temperatures ranging from -5°C to 60°C and supports operational rates up to 3600 cycles per hour ensuring high durability in demanding use cases.

Screw clamp terminals are IP20 finger-safe and feature clear international and North American terminal markings for ease of wiring. The contactor includes pre-wired reversing power connections with mechanical and electrical interlock to prevent erroneous operation, increasing safety and reliability.

The LC2D09BLV complies with multiple global standards, including UL, CSA, IEC, CCC, EAC, and Marine certifications, assuring quality and regulatory acceptance. As a Better World product designed for disassembly, it supports environmental sustainability initiatives by facilitating easy recycling or component reuse.

Compact 3-pole contactor with 24V DC coil and 9A operational current. Power rating: 5.5 kW at 690V AC, suitable for AC-3 motor control categories. Auxiliary contacts: 1 NO and 1 NC for versatile control requirements. Designed for high switching cycles and wide temperature tolerance.

IP20 finger-safe terminals with international wiring markings. Mounting options include DIN rail and screw fixing. Pre-wired reversing power connections with mechanical and electrical interlock. Complies with multiple international safety and performance standards.

Better World certified aiding energy and carbon efficiency.

Ideal for industrial automation, manufacturing machinery, HVAC systems, water treatment plants, and motor control applications. Explore Schneider Electric Contactors and related control gear in the Electronics & Electricals category at EnvMart for comprehensive solutions.
